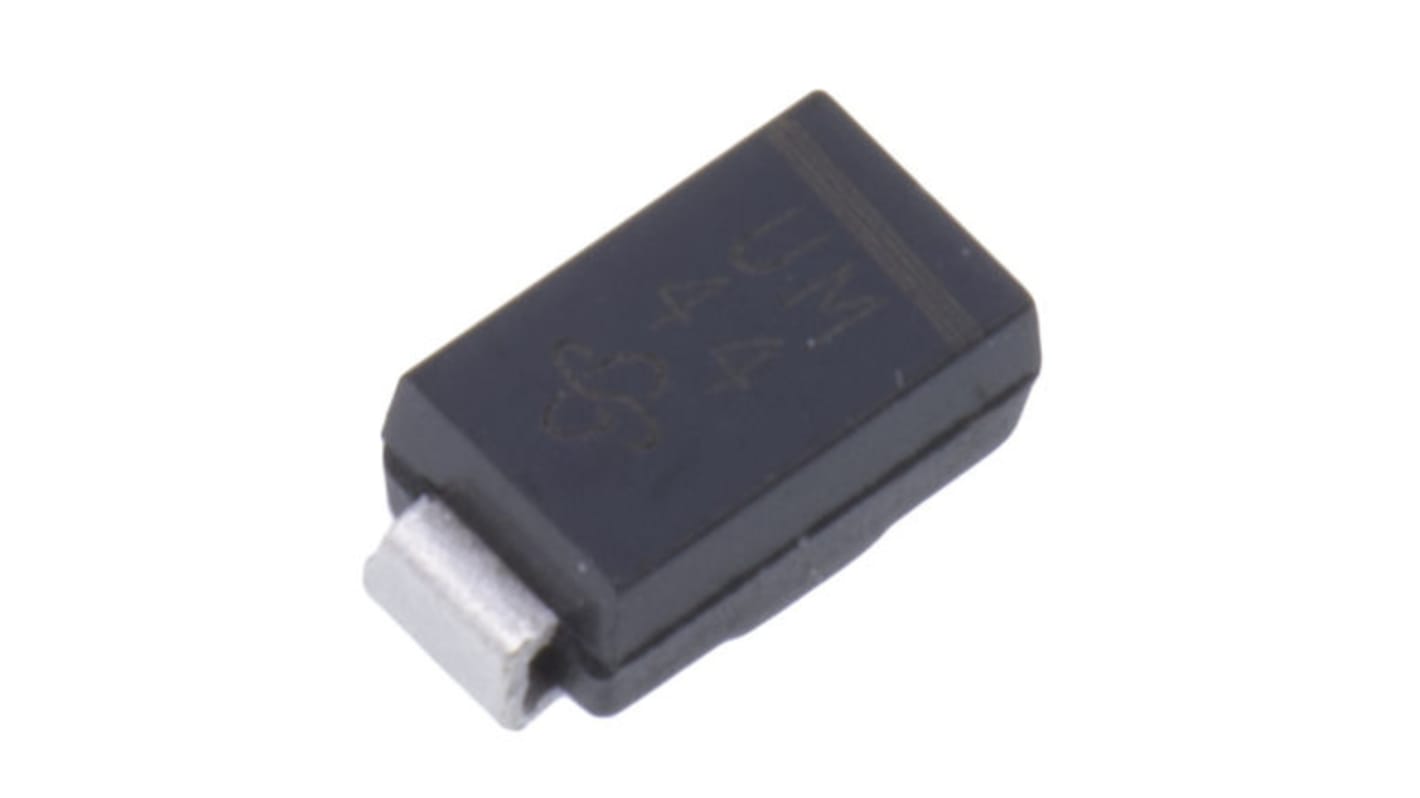

Vishay 1000V 1A, Ultrafast Rectifiers Diode, 2-Pin DO-214AC US1M-E3/5AT
- RS Stock No.:
- 919-0755
- Mfr. Part No.:
- US1M-E3/5AT
- Brand:
- Vishay
22500 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 7500)
£0.086
(exc. VAT)
£0.103
(inc. VAT)
| Units | Per unit | Per Reel* |
| 7500 + | £0.086 | £645.00 |
| *price indicative | ||
- RS Stock No.:
- 919-0755
- Mfr. Part No.:
- US1M-E3/5AT
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Vishay US1A-US1M SMD Ultrafast Efficient Rectifiers
From Vishay, the US1A and US1M series are ultrafast surface mount rectifier diodes. Featuring a small, low profile package, these rectifiers can be used by automatic pick and place machines.
Features and Benefits
• US1A and US1M rectifiers feature matte tin plated leads (solderable per J-STD-002 and JESD 22 B-102 depending on model).
• A coloured band indicates the cathode end.
• These rectifiers are constructed with a glass passivated pallet chip junction that can enhance reverse voltage resistance and decrease the risk of leakage.
• These rectifier diodes are efficient with ultra fast reverse recovery time and low switching losses.
• US1A and US1M rectifiers meet MSL 1 (Moisture Sensitivity Level 1), which means the package is robust and not sensitive to moisture during reflow.
• Capable of managing high forward surges.
• A coloured band indicates the cathode end.
• These rectifiers are constructed with a glass passivated pallet chip junction that can enhance reverse voltage resistance and decrease the risk of leakage.
• These rectifier diodes are efficient with ultra fast reverse recovery time and low switching losses.
• US1A and US1M rectifiers meet MSL 1 (Moisture Sensitivity Level 1), which means the package is robust and not sensitive to moisture during reflow.
• Capable of managing high forward surges.
Applications
These rectifiers are suited to freewheeling and high frequency applications. They can be used for switching mode inverters and converters in computers, telecommunications and consumer products.
With an AEC-Q101 qualification these rectifiers are also suitable for use in automotive applications.
With an AEC-Q101 qualification these rectifiers are also suitable for use in automotive applications.
Diodes and Rectifiers, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | DO-214AC (SMA) |
| Maximum Continuous Forward Current | 1A |
| Peak Reverse Repetitive Voltage | 1000V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Diode Type | Ultrafast Rectifiers |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.7V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 75ns |
| Peak Non-Repetitive Forward Surge Current | 30A |
