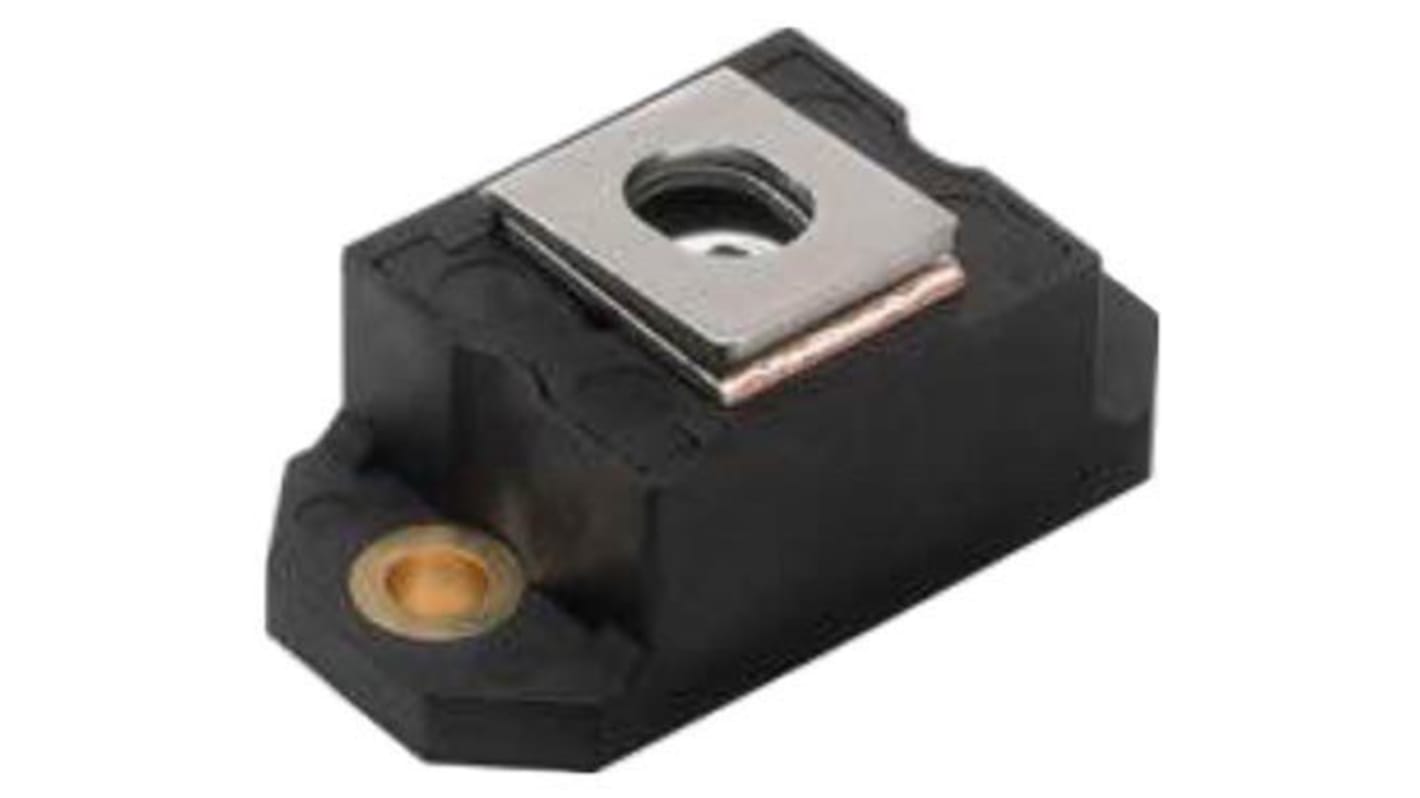

Vishay 100V 240A, Schottky Diode, 2-Pin HALF-PAK (D-67) VS-243NQ100PbF
- RS Stock No.:
- 903-3517
- Mfr. Part No.:
- VS-243NQ100PbF
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£40.11
(exc. VAT)
£48.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 57 unit(s) ready to ship
- Plus 999,999,942 unit(s) shipping from 22 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 1 | £40.11 |
2 - 4 | £35.50 |
5 - 9 | £34.57 |
10 - 24 | £33.68 |
25 + | £32.85 |
*price indicative
- RS Stock No.:
- 903-3517
- Mfr. Part No.:
- VS-243NQ100PbF
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vishay | |
Mounting Type | Surface Mount | |
Package Type | HALF-PAK (D-67) | |
Maximum Continuous Forward Current | 240A | |
Peak Reverse Repetitive Voltage | 100V | |
Diode Configuration | Single | |
Rectifier Type | Schottky Rectifier | |
Diode Type | Schottky | |
Pin Count | 2 | |
Maximum Forward Voltage Drop | 950mV | |
Number of Elements per Chip | 1 | |
Diode Technology | Schottky | |
Peak Non-Repetitive Forward Surge Current | 25.5kA | |
Select all | ||
---|---|---|
Brand Vishay | ||
Mounting Type Surface Mount | ||
Package Type HALF-PAK (D-67) | ||
Maximum Continuous Forward Current 240A | ||
Peak Reverse Repetitive Voltage 100V | ||
Diode Configuration Single | ||
Rectifier Type Schottky Rectifier | ||
Diode Type Schottky | ||
Pin Count 2 | ||
Maximum Forward Voltage Drop 950mV | ||
Number of Elements per Chip 1 | ||
Diode Technology Schottky | ||
Peak Non-Repetitive Forward Surge Current 25.5kA | ||
High Performance Schottky Rectifiers 50A to 400A, Vishay Semiconductor
Schottky Rectifiers are semiconductor diodes that exhibit very low forward voltage drop with a very fast switching action. The reverse recovery times of Schottky diodes are extremely quick. Schottky diodes are suitable for applications requiring fast switching and low power loss.
Low forward voltage drop
Low thermal resistance
Low thermal resistance
Schottky Rectifiers, Vishay Semiconductor
