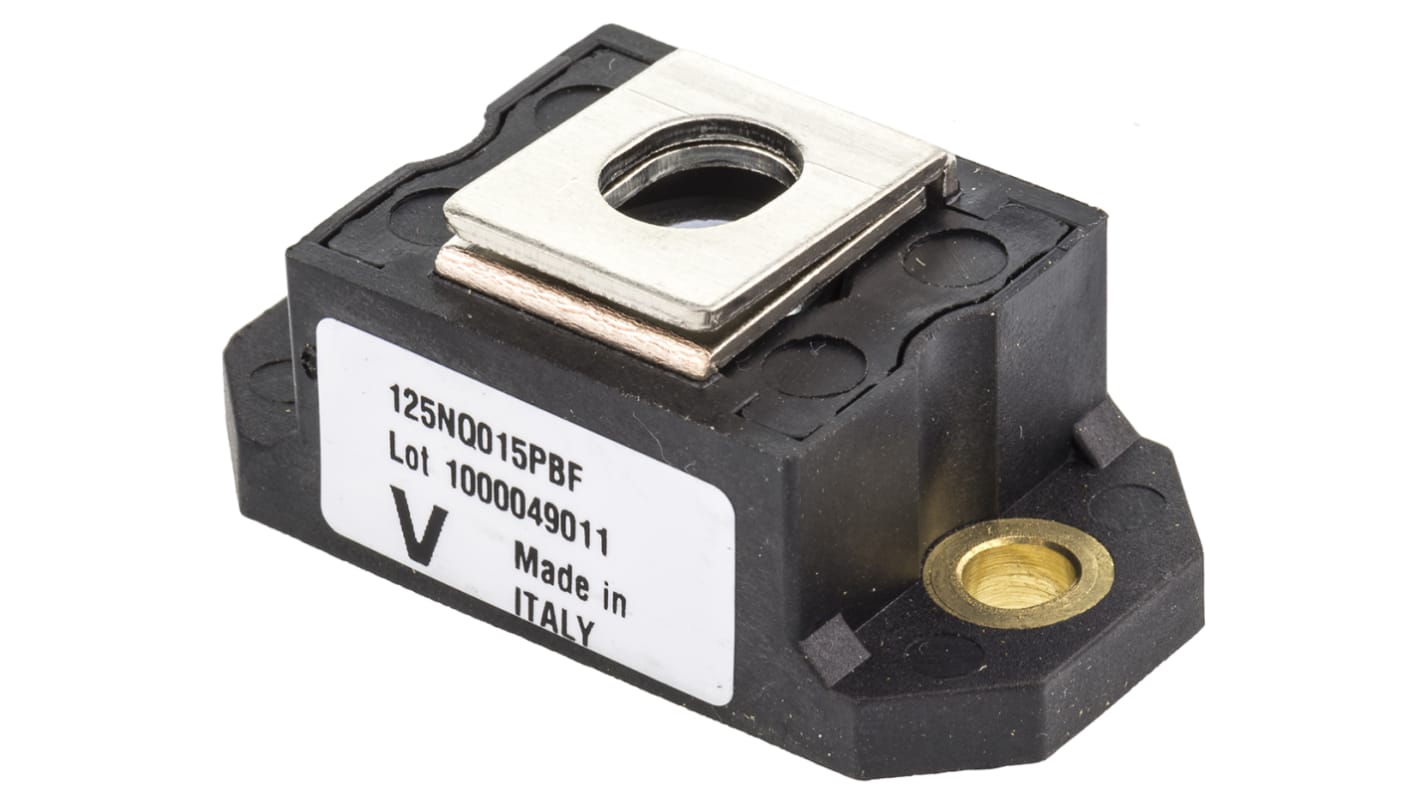

Vishay 15 V 120 A Diode Schottky 2-Pin D-67 VS-125NQ015PBF
- RS Stock No.:
- 700-3627
- Mfr. Part No.:
- VS-125NQ015PBF
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£23.63
(exc. VAT)
£28.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £23.63 |
| 2 - 4 | £22.98 |
| 5 - 9 | £22.38 |
| 10 - 24 | £21.82 |
| 25 + | £21.26 |
*price indicative
- RS Stock No.:
- 700-3627
- Mfr. Part No.:
- VS-125NQ015PBF
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Panel | |
| Product Type | Diode | |
| Package Type | D-67 | |
| Maximum Continuous Forward Current If | 120A | |
| Peak Reverse Repetitive Voltage Vrrm | 15V | |
| Diode Configuration | Single | |
| Series | VSX | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Current Ir | 40mA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 10.8kA | |
| Maximum Forward Voltage Vf | 520mV | |
| Maximum Operating Temperature | 125°C | |
| Width | 19.69 mm | |
| Height | 13.97mm | |
| Length | 39.62mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Panel | ||
Product Type Diode | ||
Package Type D-67 | ||
Maximum Continuous Forward Current If 120A | ||
Peak Reverse Repetitive Voltage Vrrm 15V | ||
Diode Configuration Single | ||
Series VSX | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Current Ir 40mA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 10.8kA | ||
Maximum Forward Voltage Vf 520mV | ||
Maximum Operating Temperature 125°C | ||
Width 19.69 mm | ||
Height 13.97mm | ||
Length 39.62mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
High Performance Schottky Rectifiers 50A to 400A, Vishay Semiconductor
Schottky Rectifiers are semiconductor diodes that exhibit very low forward voltage drop with a very fast switching action. The reverse recovery times of Schottky diodes are extremely quick. Schottky diodes are suitable for applications requiring fast switching and low power loss.
Low forward voltage drop
Low thermal resistance
Schottky Rectifiers, Vishay Semiconductor
