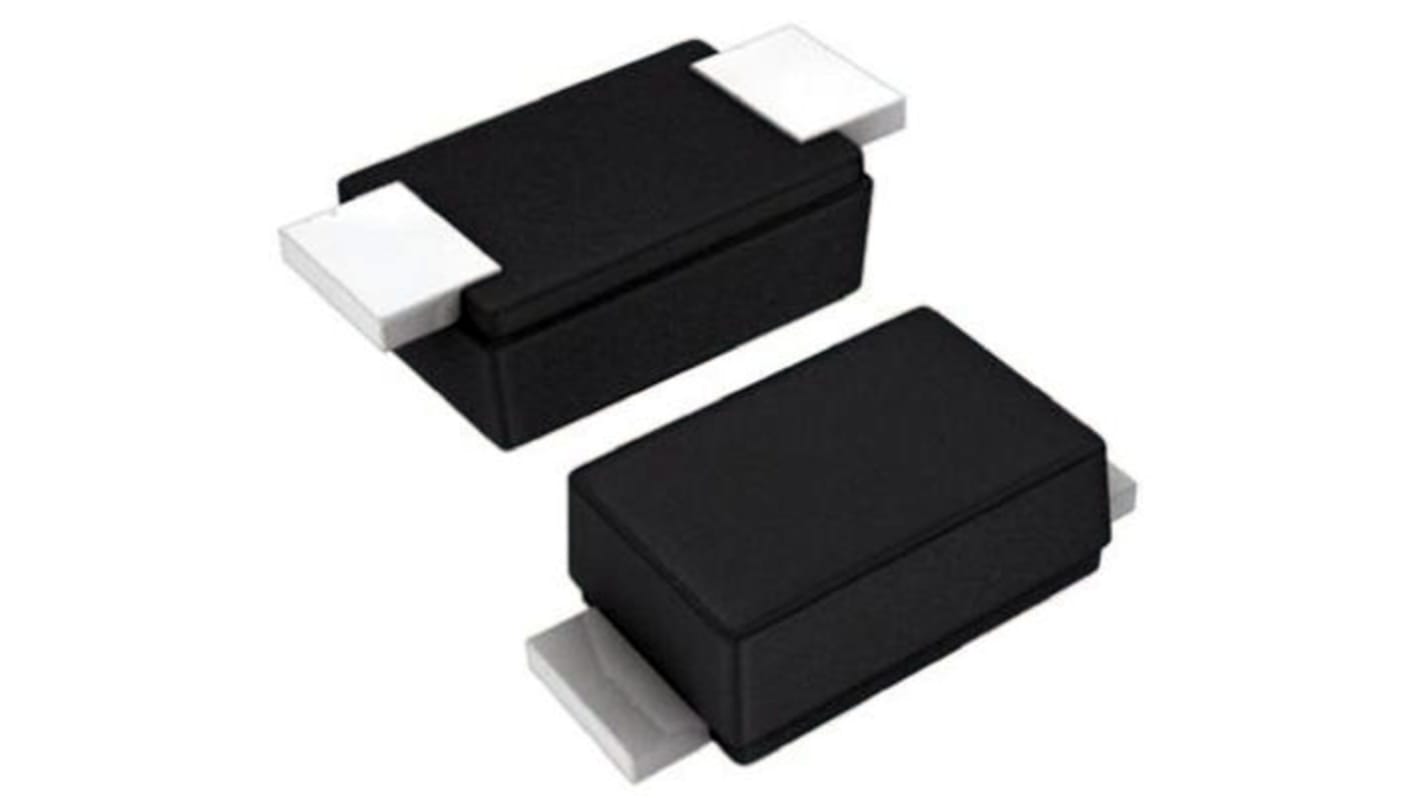

Toshiba 30 V 2 A Diode Schottky 2-Pin M-FLAT CMS06(TE12L,Q,M)
- RS Stock No.:
- 891-2706
- Mfr. Part No.:
- CMS06(TE12L,Q,M)
- Brand:
- Toshiba
Bulk discount available
Subtotal (1 pack of 25 units)*
£3.575
(exc. VAT)
£4.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 950 unit(s) ready to ship
- Plus 100 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 100 | £0.143 | £3.58 |
| 125 - 225 | £0.107 | £2.68 |
| 250 - 475 | £0.102 | £2.55 |
| 500 - 1225 | £0.079 | £1.98 |
| 1250 + | £0.061 | £1.53 |
*price indicative
- RS Stock No.:
- 891-2706
- Mfr. Part No.:
- CMS06(TE12L,Q,M)
- Brand:
- Toshiba
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | M-FLAT | |
| Maximum Continuous Forward Current If | 2A | |
| Peak Reverse Repetitive Voltage Vrrm | 30V | |
| Diode Configuration | Single | |
| Series | CMS06 | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -40°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A | |
| Peak Reverse Current Ir | 3mA | |
| Maximum Forward Voltage Vf | 370mV | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Height | 0.98mm | |
| Length | 3.8mm | |
| Width | 2.4 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type M-FLAT | ||
Maximum Continuous Forward Current If 2A | ||
Peak Reverse Repetitive Voltage Vrrm 30V | ||
Diode Configuration Single | ||
Series CMS06 | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Minimum Operating Temperature -40°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 40A | ||
Peak Reverse Current Ir 3mA | ||
Maximum Forward Voltage Vf 370mV | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Height 0.98mm | ||
Length 3.8mm | ||
Width 2.4 mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
Schottky Barrier Diodes, CMS/CRS/CUS Series
Diodes and Rectifiers, Toshiba
