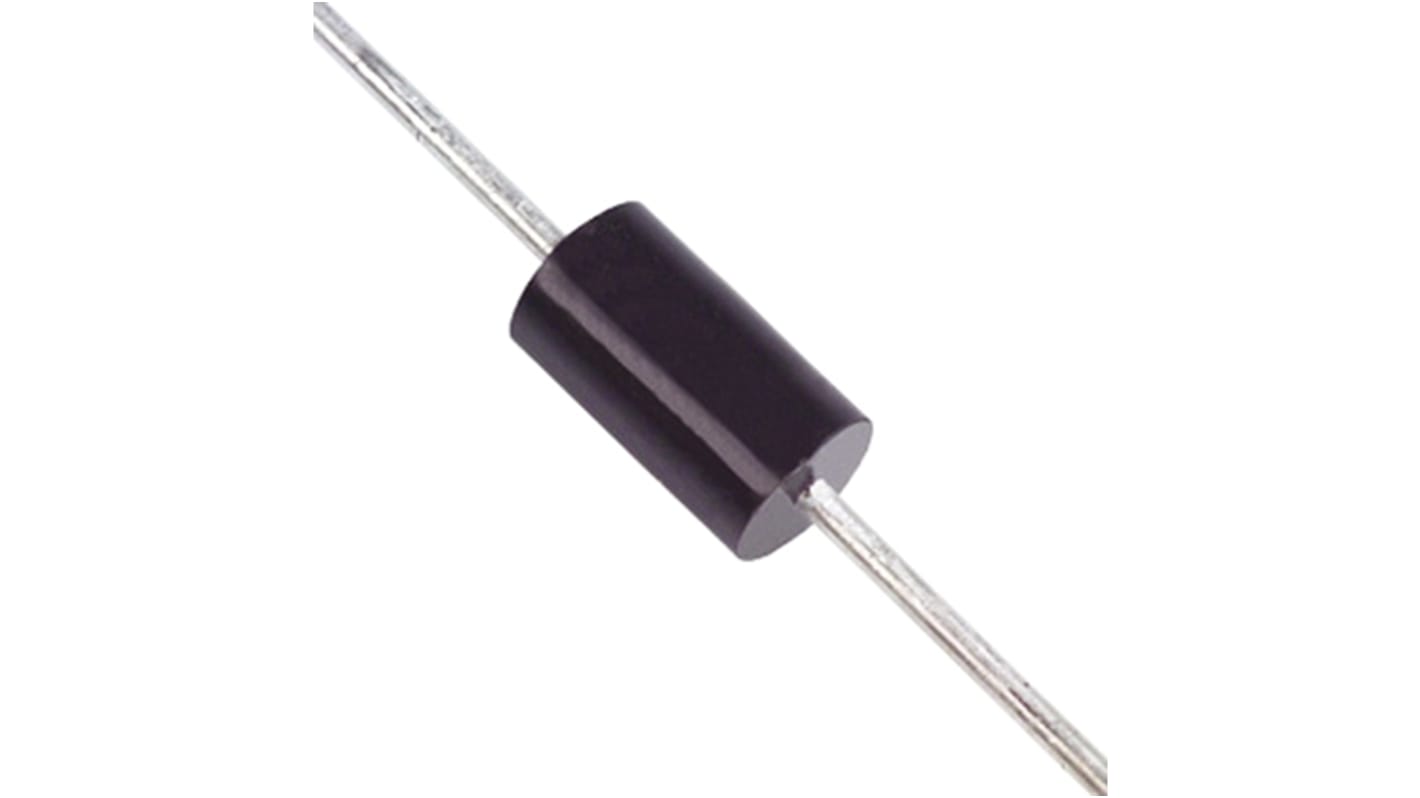

STMicroelectronics 200 V 3 A Diode Switching 2-Pin DO-201AD STTH3R02
- RS Stock No.:
- 687-0870
- Mfr. Part No.:
- STTH3R02
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 pack of 25 units)*
£5.675
(exc. VAT)
£6.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
- Plus 400 unit(s) shipping from 04 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 75 | £0.227 | £5.68 |
| 100 - 575 | £0.162 | £4.05 |
| 600 - 1175 | £0.124 | £3.10 |
| 1200 - 4775 | £0.094 | £2.35 |
| 4800 + | £0.091 | £2.28 |
*price indicative
- RS Stock No.:
- 687-0870
- Mfr. Part No.:
- STTH3R02
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Mount Type | Through Hole | |
| Product Type | Diode | |
| Package Type | DO-201AD | |
| Maximum Continuous Forward Current If | 3A | |
| Peak Reverse Repetitive Voltage Vrrm | 200V | |
| Series | STTH3R02 | |
| Diode Configuration | Single | |
| Rectifier Type | Switching | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -65°C | |
| Peak Reverse Current Ir | 3μA | |
| Maximum Forward Voltage Vf | 1.2V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A | |
| Maximum Operating Temperature | 175°C | |
| Peak Reverse Recovery Time trr | 30ns | |
| Width | 5.3 mm | |
| Height | 5.3mm | |
| Length | 9.5mm | |
| Standards/Approvals | RoHS | |
| Diameter | 5.3 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Mount Type Through Hole | ||
Product Type Diode | ||
Package Type DO-201AD | ||
Maximum Continuous Forward Current If 3A | ||
Peak Reverse Repetitive Voltage Vrrm 200V | ||
Series STTH3R02 | ||
Diode Configuration Single | ||
Rectifier Type Switching | ||
Pin Count 2 | ||
Minimum Operating Temperature -65°C | ||
Peak Reverse Current Ir 3μA | ||
Maximum Forward Voltage Vf 1.2V | ||
Peak Non-Repetitive Forward Surge Current Ifsm 75A | ||
Maximum Operating Temperature 175°C | ||
Peak Reverse Recovery Time trr 30ns | ||
Width 5.3 mm | ||
Height 5.3mm | ||
Length 9.5mm | ||
Standards/Approvals RoHS | ||
Diameter 5.3 mm | ||
Automotive Standard No | ||
Rectifier Diodes, 1A to 3A, STMicroelectronics
Diodes and Rectifiers, STMicroelectronics
