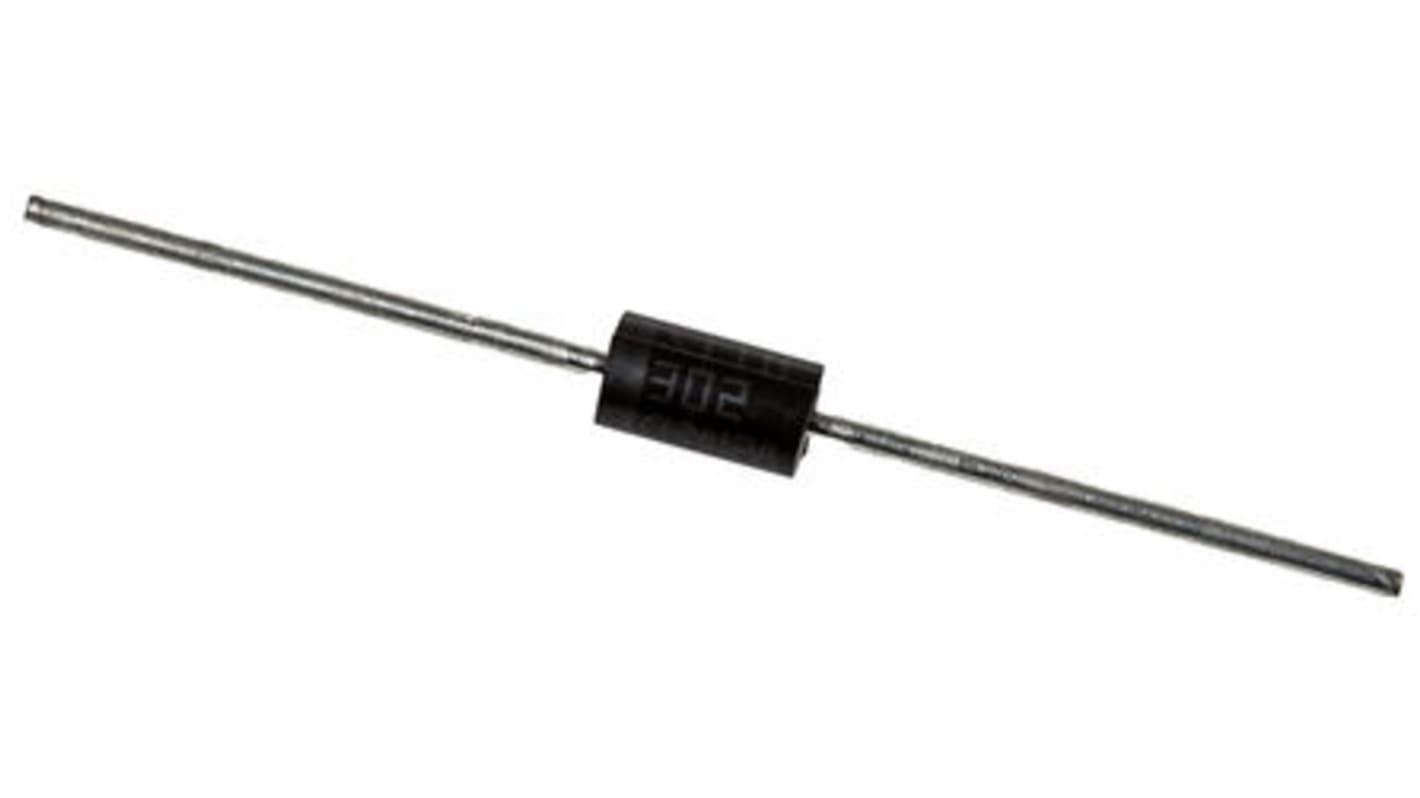

STMicroelectronics 200 V 3 A Diode Switching 2-Pin DO-201AD
- RS Stock No.:
- 920-6282
- Mfr. Part No.:
- STTH302
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 bag of 600 units)*
£64.20
(exc. VAT)
£76.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 600 - 600 | £0.107 | £64.20 |
| 1200 - 4200 | £0.081 | £48.60 |
| 4800 - 9000 | £0.078 | £46.80 |
| 9600 - 24000 | £0.076 | £45.60 |
| 24600 + | £0.073 | £43.80 |
*price indicative
- RS Stock No.:
- 920-6282
- Mfr. Part No.:
- STTH302
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Mount Type | Through Hole | |
| Product Type | Diode | |
| Package Type | DO-201AD | |
| Maximum Continuous Forward Current If | 3A | |
| Peak Reverse Repetitive Voltage Vrrm | 200V | |
| Diode Configuration | Single | |
| Series | STTH302 | |
| Rectifier Type | Switching | |
| Pin Count | 2 | |
| Maximum Forward Voltage Vf | 950mV | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 130A | |
| Minimum Operating Temperature | -65°C | |
| Peak Reverse Current Ir | 3μA | |
| Maximum Operating Temperature | 175°C | |
| Peak Reverse Recovery Time trr | 35ns | |
| Standards/Approvals | RoHS | |
| Height | 5.3mm | |
| Length | 9.5mm | |
| Diameter | 5.3 mm | |
| Width | 5.3 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Mount Type Through Hole | ||
Product Type Diode | ||
Package Type DO-201AD | ||
Maximum Continuous Forward Current If 3A | ||
Peak Reverse Repetitive Voltage Vrrm 200V | ||
Diode Configuration Single | ||
Series STTH302 | ||
Rectifier Type Switching | ||
Pin Count 2 | ||
Maximum Forward Voltage Vf 950mV | ||
Peak Non-Repetitive Forward Surge Current Ifsm 130A | ||
Minimum Operating Temperature -65°C | ||
Peak Reverse Current Ir 3μA | ||
Maximum Operating Temperature 175°C | ||
Peak Reverse Recovery Time trr 35ns | ||
Standards/Approvals RoHS | ||
Height 5.3mm | ||
Length 9.5mm | ||
Diameter 5.3 mm | ||
Width 5.3 mm | ||
Automotive Standard No | ||
Rectifier Diodes, 1A to 3A, STMicroelectronics
Diodes and Rectifiers, STMicroelectronics
