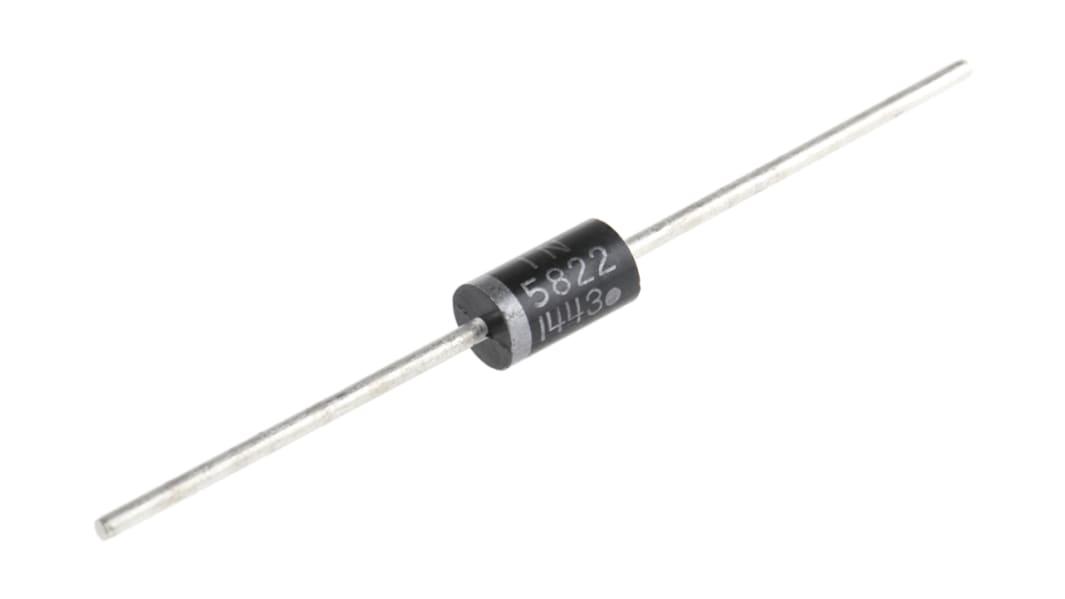

onsemi 40 V 3 A Diode Schottky 2-Pin DO-201AD 1N5822RLG

View this category
Bulk discount available

Subtotal (1 pack of 10 units)*

£3.61

(exc. VAT)

£4.33

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 760 unit(s) ready to ship
  • Plus 40 unit(s) ready to ship from another location
  • Plus 280 unit(s) shipping from 06 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 90£0.361£3.61
100 - 240£0.311£3.11
250 - 490£0.27£2.70
500 - 990£0.237£2.37
1000 +£0.216£2.16

*price indicative

Packaging Options:
RS Stock No.:
654-7139
Distrelec Article No.:
304-33-637
Mfr. Part No.:
1N5822RLG
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Mount Type

Through Hole

Product Type

Diode

Package Type

DO-201AD

Maximum Continuous Forward Current If

3A

Peak Reverse Repetitive Voltage Vrrm

40V

Series

1N5822

Diode Configuration

Single

Rectifier Type

Schottky

Pin Count

2

Peak Reverse Current Ir

2mA

Minimum Operating Temperature

-65°C

Peak Non-Repetitive Forward Surge Current Ifsm

80A

Maximum Forward Voltage Vf

950mV

Maximum Operating Temperature

125°C

Peak Reverse Recovery Time trr

1.6ns

Height

9.5mm

Width

0.45 mm

Length

9.5mm

Diameter

5.3 mm

Standards/Approvals

No

Automotive Standard

No

ON Semiconductor Schottky Barrier Diodes


This ON Semiconductor Schottky power rectifier employs the Schottky barrier principle using a barrier metal to create the best forward voltage drop−reverse current exchange. Suitable for low voltage, high-frequency rectification as well as a freewheeling and polarity protection diode in a range of surface mount applications wherever a more Compact size and weight are key.

• Pb-Free

• Designed for Optimal Automated Board Assembly

• Stress protection guarding

• Epoxy Moulded Case

• Lightweight 11.7mg package

Standards

Products with NSV-, SBR- or S-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified.
