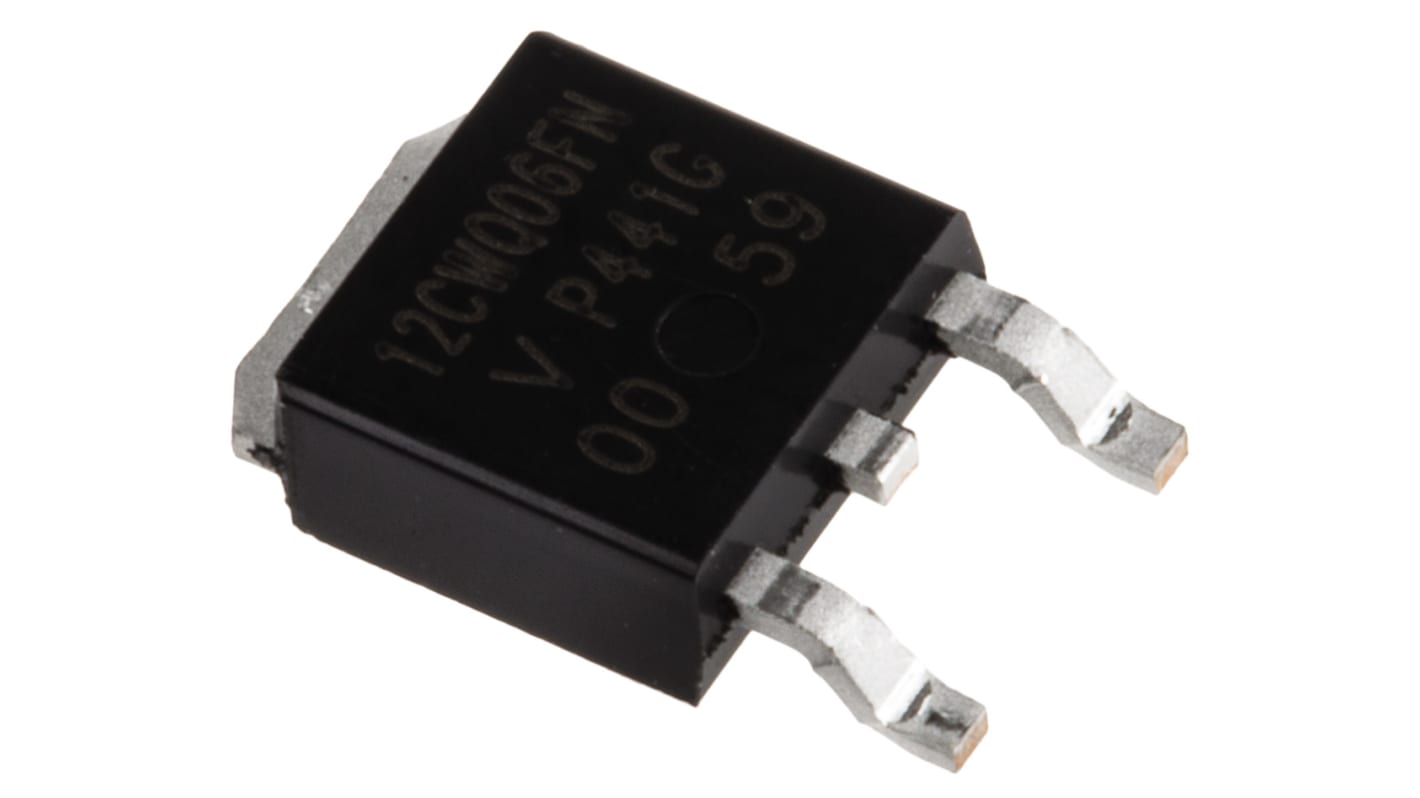

Vishay 60V 12A, Dual Schottky Diode, 3-Pin DPAK VS-12CWQ06FN-M3
- RS Stock No.:
- 650-3088
- Mfr. Part No.:
- VS-12CWQ06FN-M3
- Brand:
- Vishay
40 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£0.754
(exc. VAT)
£0.905
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 45 | £0.754 | £3.77 |
| 50 - 245 | £0.64 | £3.20 |
| 250 - 495 | £0.592 | £2.96 |
| 500 - 1245 | £0.576 | £2.88 |
| 1250 + | £0.562 | £2.81 |
| *price indicative | ||
- RS Stock No.:
- 650-3088
- Mfr. Part No.:
- VS-12CWQ06FN-M3
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
Product Details
High-Performance Schottky Diodes, Vishay Semiconductor
Schottky Rectifiers are semiconductor diodes that exhibit very low forward voltage drop with a very fast switching action. The reverse recovery times of Schottky diodes are extremely quick. Schottky diodes are suitable for applications requiring fast switching and low power loss.
High-performance Schottky diodes from Vishay are offered with forward current ratings of 1A to 175A and voltage ratings of 15V to 150V.
High-performance Schottky diodes from Vishay are offered with forward current ratings of 1A to 175A and voltage ratings of 15V to 150V.
Diodes and Rectifiers, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | DPAK (TO-252) |
| Maximum Continuous Forward Current | 12A |
| Peak Reverse Repetitive Voltage | 60V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky Rectifier |
| Diode Type | Schottky |
| Pin Count | 3 |
| Maximum Forward Voltage Drop | 570mV |
| Number of Elements per Chip | 2 |
| Diode Technology | Schottky |
| Peak Non-Repetitive Forward Surge Current | 320A |
