- RS Stock No.:
- 545-2850
- Mfr. Part No.:
- MBR1645G
- Brand:
- onsemi
5 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£1.08
(exc. VAT)
£1.30
(inc. VAT)
Units | Per unit | Per Pack* |
5 - 5 | £1.08 | £5.40 |
10 - 95 | £0.88 | £4.40 |
100 - 495 | £0.68 | £3.40 |
500 - 995 | £0.578 | £2.89 |
1000 + | £0.442 | £2.21 |
*price indicative |
- RS Stock No.:
- 545-2850
- Mfr. Part No.:
- MBR1645G
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

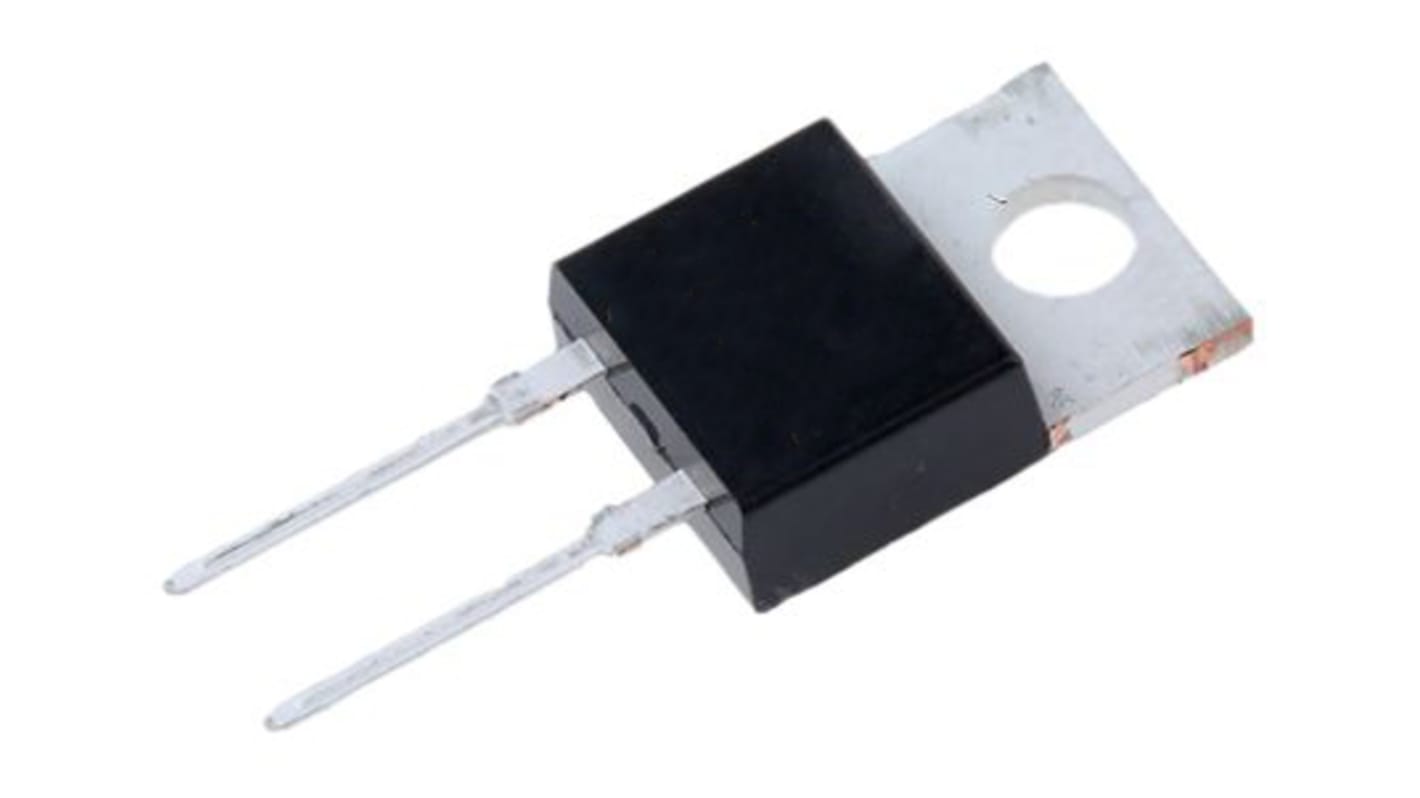

Schottky Barrier Diodes, 10A to 25A, ON Semiconductor
Standards
Products with NSV- or SBR-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified.
Specifications
Attribute | Value |
---|---|
Mounting Type | Through Hole |
Package Type | TO-220AC |
Maximum Continuous Forward Current | 16A |
Peak Reverse Repetitive Voltage | 45V |
Diode Configuration | Single |
Rectifier Type | Schottky Rectifier |
Diode Type | Schottky |
Pin Count | 2 |
Maximum Forward Voltage Drop | 630mV |
Number of Elements per Chip | 1 |
Diode Technology | Schottky Barrier |
Peak Non-Repetitive Forward Surge Current | 150A |
