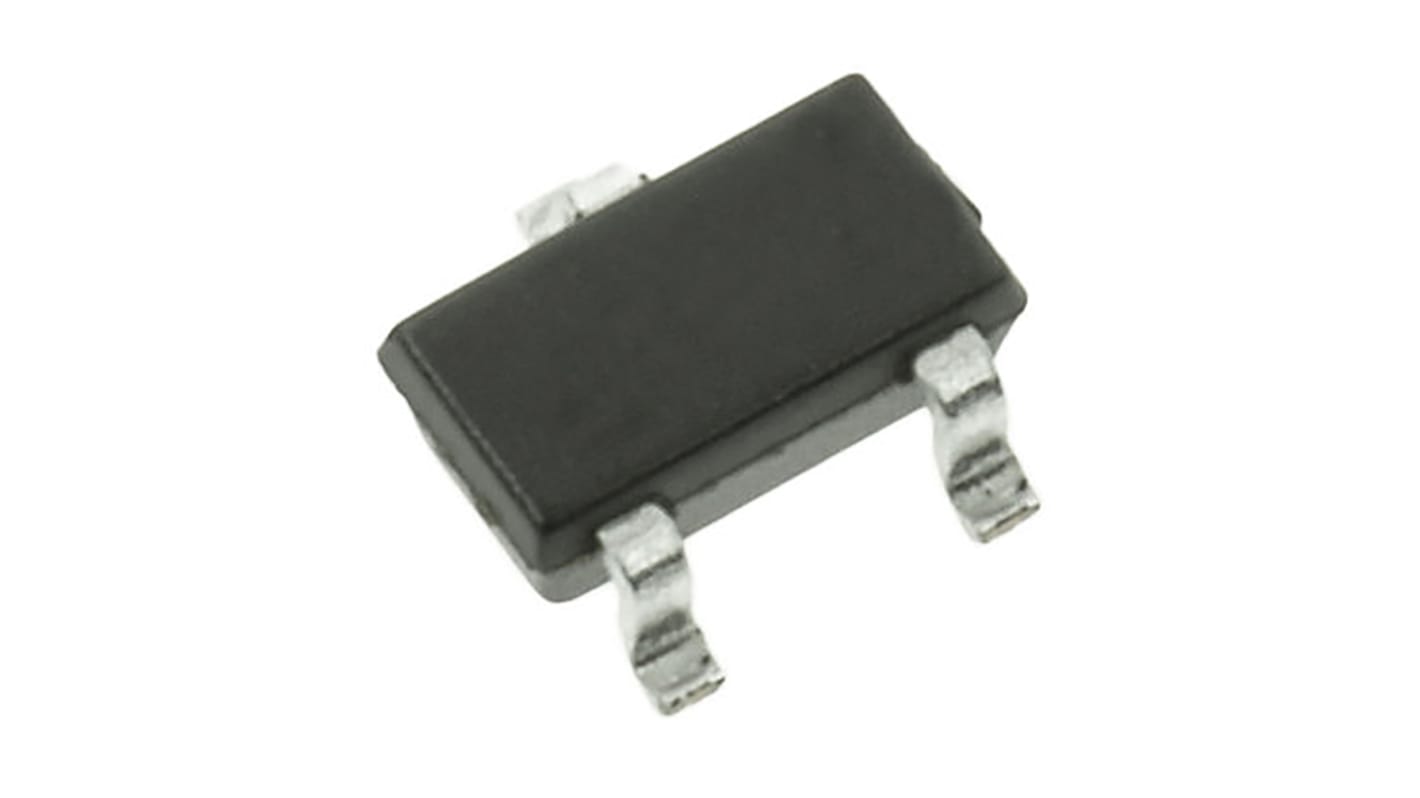

Toshiba 45 V 100 mA Diode Schottky 3-Pin SC-59 1SS396(F)
- RS Stock No.:
- 540-5804
- Mfr. Part No.:
- 1SS396(F)
- Brand:
- Toshiba
Bulk discount available
Subtotal (1 pack of 5 units)*
£1.08
(exc. VAT)
£1.295
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 120 | £0.216 | £1.08 |
| 125 - 495 | £0.196 | £0.98 |
| 500 - 1245 | £0.188 | £0.94 |
| 1250 - 2495 | £0.182 | £0.91 |
| 2500 + | £0.178 | £0.89 |
*price indicative
- RS Stock No.:
- 540-5804
- Mfr. Part No.:
- 1SS396(F)
- Brand:
- Toshiba
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Mount Type | Surface | |
| Product Type | Diode | |
| Package Type | SC-59 | |
| Maximum Continuous Forward Current If | 100mA | |
| Peak Reverse Repetitive Voltage Vrrm | 45V | |
| Diode Configuration | Series | |
| Series | 1SS396 | |
| Rectifier Type | Schottky | |
| Pin Count | 3 | |
| Peak Reverse Current Ir | 5μA | |
| Maximum Forward Voltage Vf | 0.6V | |
| Minimum Operating Temperature | -40°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A | |
| Maximum Operating Temperature | 100°C | |
| Height | 1.1mm | |
| Standards/Approvals | No | |
| Length | 2.9mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Mount Type Surface | ||
Product Type Diode | ||
Package Type SC-59 | ||
Maximum Continuous Forward Current If 100mA | ||
Peak Reverse Repetitive Voltage Vrrm 45V | ||
Diode Configuration Series | ||
Series 1SS396 | ||
Rectifier Type Schottky | ||
Pin Count 3 | ||
Peak Reverse Current Ir 5μA | ||
Maximum Forward Voltage Vf 0.6V | ||
Minimum Operating Temperature -40°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 1A | ||
Maximum Operating Temperature 100°C | ||
Height 1.1mm | ||
Standards/Approvals No | ||
Length 2.9mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- JP
Small-Signal Schottky Barrier Diode, Toshiba
Diodes and Rectifiers, Toshiba
