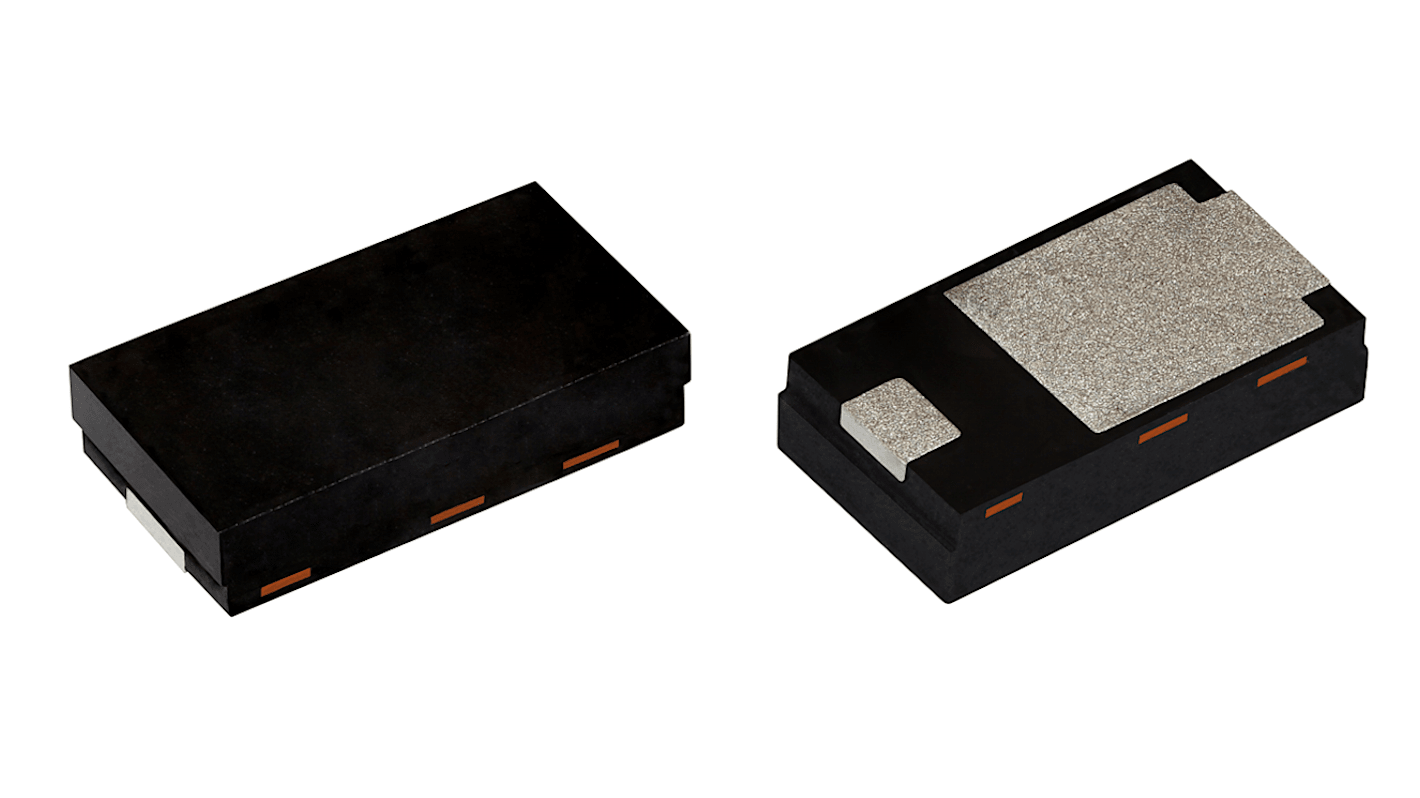

Vishay 100V 3A, Schottky Rectifier & Schottky Diode, 2-Pin DFN3820A V3N103HM3/H
- RS Stock No.:
- 280-2147
- Mfr. Part No.:
- V3N103HM3/H
- Brand:
- Vishay
Bulk discount available
Subtotal (1 reel of 3500 units)*
£406.00
(exc. VAT)
£486.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
3500 - 7000 | £0.116 | £406.00 |
10500 - 14000 | £0.108 | £378.00 |
17500 + | £0.10 | £350.00 |
*price indicative
- RS Stock No.:
- 280-2147
- Mfr. Part No.:
- V3N103HM3/H
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vishay | |
Mounting Type | Surface Mount | |
Package Type | DFN3820A | |
Maximum Continuous Forward Current | 3A | |
Peak Reverse Repetitive Voltage | 100V | |
Diode Configuration | Single | |
Series | V3N103 | |
Diode Type | Schottky | |
Pin Count | 2 | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand Vishay | ||
Mounting Type Surface Mount | ||
Package Type DFN3820A | ||
Maximum Continuous Forward Current 3A | ||
Peak Reverse Repetitive Voltage 100V | ||
Diode Configuration Single | ||
Series V3N103 | ||
Diode Type Schottky | ||
Pin Count 2 | ||
Number of Elements per Chip 1 | ||
The Vishay Schottky Diode is a surface mount TMBS that is Trench MOS Barrier Schottky Rectifier. It is designed in a low profile package, with a typical height of only 0.88 mm. It meets MSL level 1, as per the J-STD-020 standard. It is useful in low voltage, high frequency inverters, freewheeling, DC to DC converters and polarity protection applications.
Lead free
Halogen free
RoHS compliant
AEC Q101 qualified
Low forward voltage drop
Low power losses and high efficiency
Halogen free
RoHS compliant
AEC Q101 qualified
Low forward voltage drop
Low power losses and high efficiency
