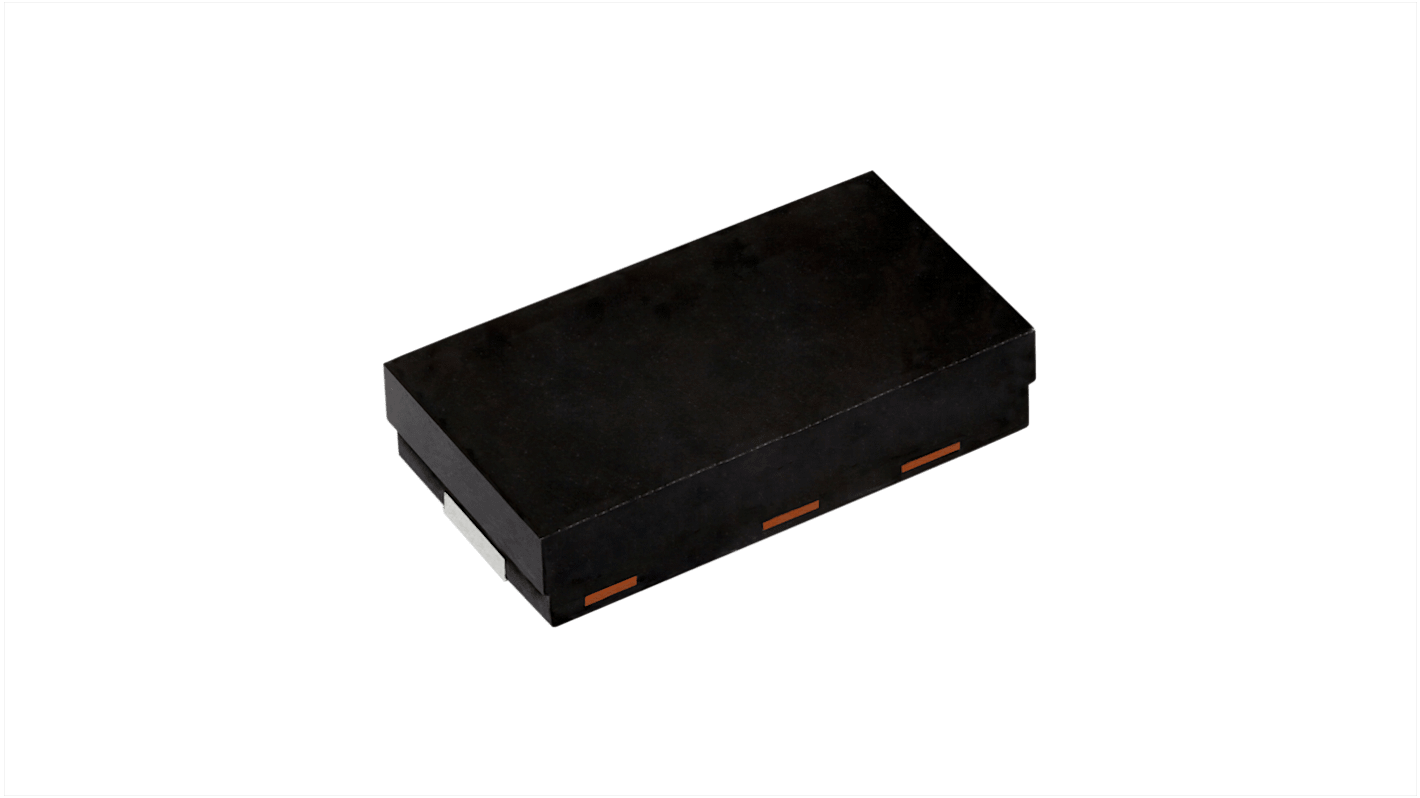

Vishay 200V 3A, Ultrafast Rectifiers Rectifier & Schottky Diode, 2-Pin DFN3820A VS-3EAH02-M3/H

View this category

Subtotal (1 pack of 20 units)*

£3.66

(exc. VAT)

£4.40

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3,500 unit(s) ready to ship
  • Plus 999,996,480 unit(s) shipping from 25 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
20 +£0.183£3.66

*price indicative

Packaging Options:
RS Stock No.:
274-0796
Mfr. Part No.:
VS-3EAH02-M3/H
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Mounting Type

Surface Mount

Package Type

DFN3820A

Maximum Continuous Forward Current

3A

Peak Reverse Repetitive Voltage

200V

Diode Configuration

Single

Series

FRED Pt

Diode Type

Ultrafast Rectifiers

Pin Count

2

Number of Elements per Chip

1

The Vishay Ultrafast Rectifier has very low profile typical height of 0.88 mm. This rectifier uses for PFC and CRM snubber operation. The wettable flanks allows easy inspection with AOI and no X ray necessary for this rectifier. This rectifier moulding compound meets UL 94 V 0 flammability rating with MSL level 1 with LF maximum peak of 260 degree Celsius.

RoHS compliant
Low power losses
Low leakage current
Low forward voltage drop
Lead free and halogen free
Ideal for automated placement
