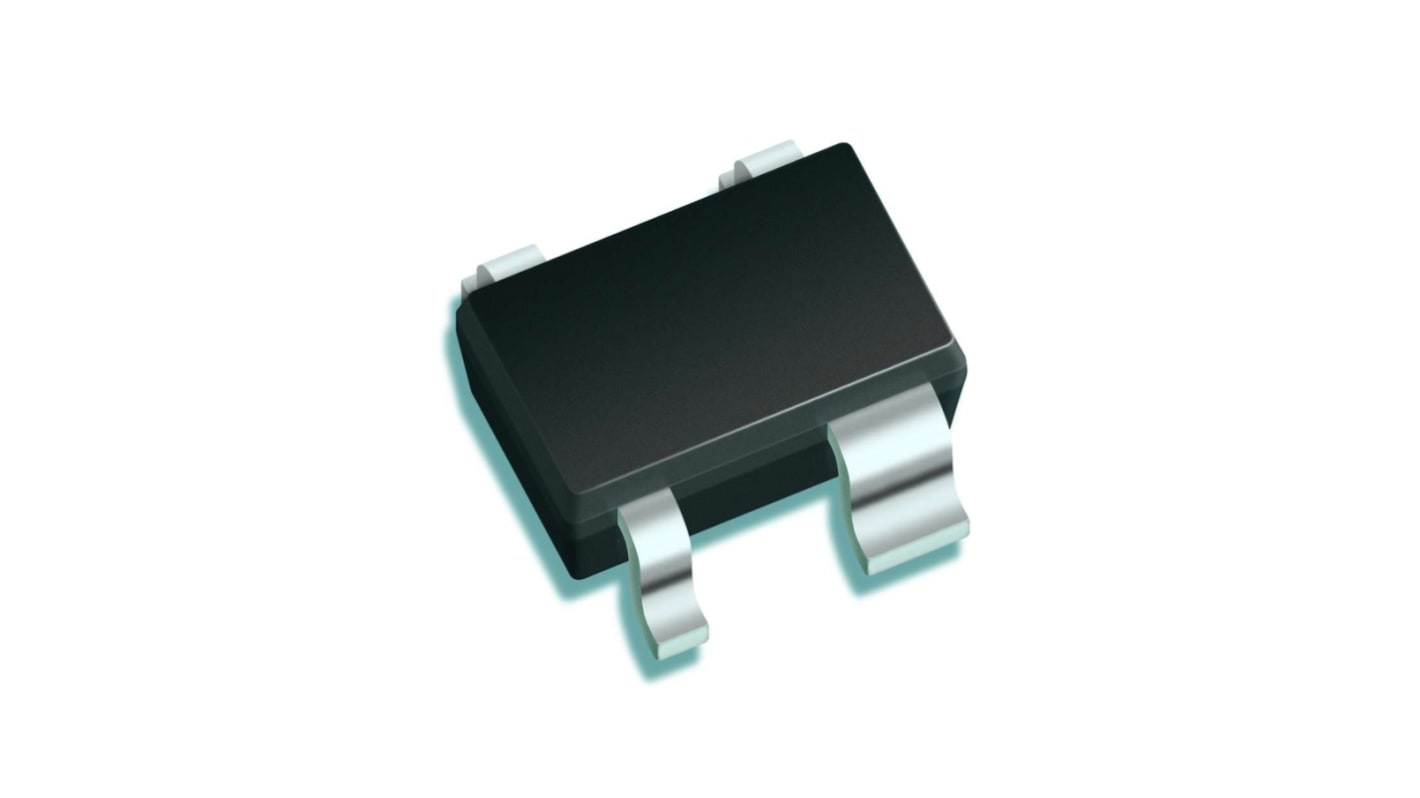

Infineon 40 V 70 mA Diode Schottky 4-Pin SOT-343 BAS4007WH6327XTSA1

View this category

Subtotal (1 pack of 50 units)*

£4.50

(exc. VAT)

£5.50

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,200 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
50 +£0.09£4.50

*price indicative

Packaging Options:
RS Stock No.:
261-3905
Distrelec Article No.:
304-41-631
Mfr. Part No.:
BAS4007WH6327XTSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Mount Type

Surface

Product Type

Diode

Package Type

SOT-343

Maximum Continuous Forward Current If

70mA

Peak Reverse Repetitive Voltage Vrrm

40V

Diode Configuration

Common Anode

Series

BAS40

Rectifier Type

Schottky

Pin Count

4

Maximum Forward Voltage Vf

1000mV

Peak Reverse Current Ir

1μA

Peak Non-Repetitive Forward Surge Current Ifsm

200mA

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

150°C

Height

2.4mm

Length

2.9mm

Standards/Approvals

RoHS

Automotive Standard

AEC-Q101

The Infineon silicon schottky diode for high-speed switching. That device is qualified according AEC Q101 with voltage clamping and Pb-free RoHS compliant package.

High level detecting and mixing

Circuit protection
