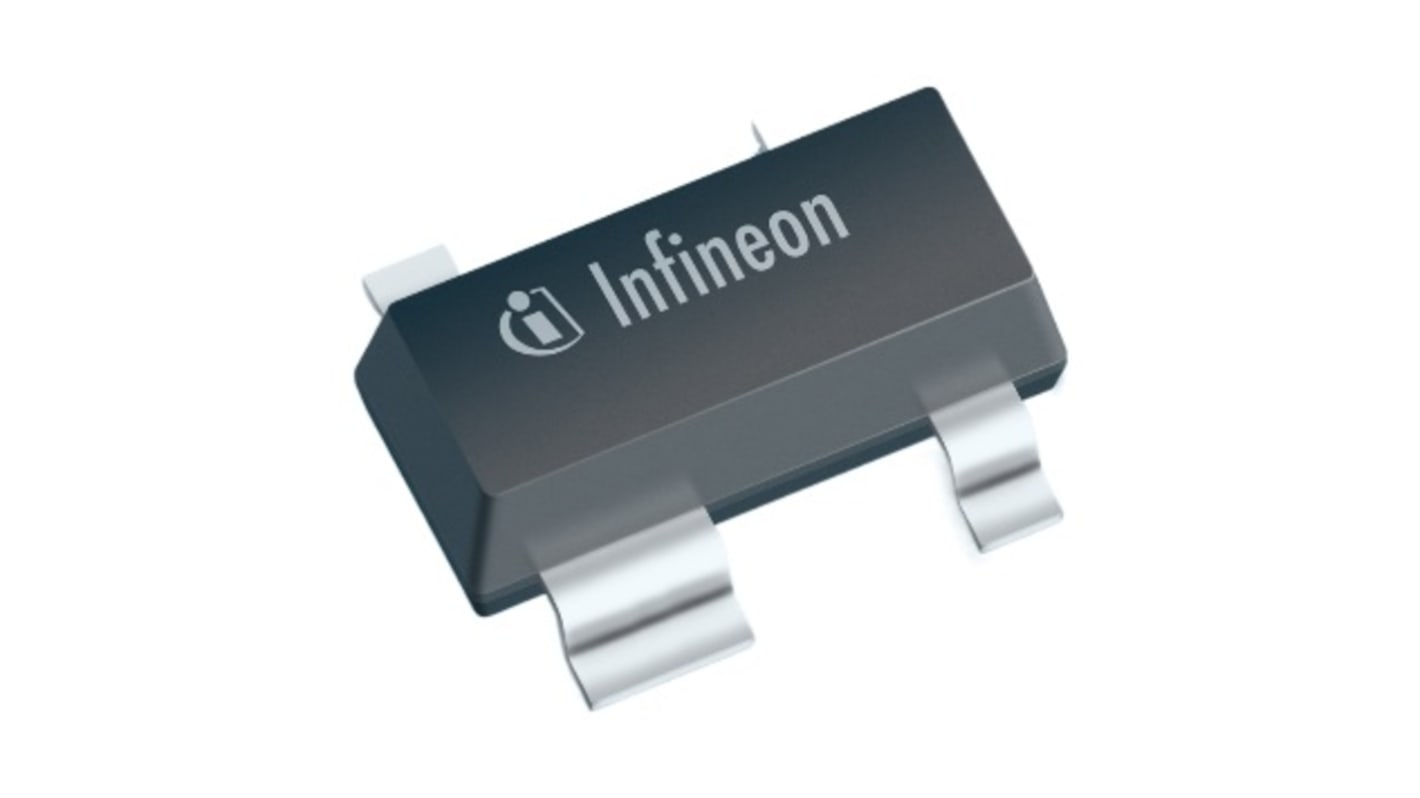

Infineon 70 V 70 mA Diode Schottky 4-Pin SOT-143 BAS7007E6327HTSA1
- RS Stock No.:
- 261-3913
- Distrelec Article No.:
- 304-41-633
- Mfr. Part No.:
- BAS7007E6327HTSA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 50 units)*
£5.75
(exc. VAT)
£6.90
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 200 | £0.115 | £5.75 |
| 250 - 450 | £0.079 | £3.95 |
| 500 - 1200 | £0.075 | £3.75 |
| 1250 - 2450 | £0.069 | £3.45 |
| 2500 + | £0.065 | £3.25 |
*price indicative
- RS Stock No.:
- 261-3913
- Distrelec Article No.:
- 304-41-633
- Mfr. Part No.:
- BAS7007E6327HTSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | SOT-143 | |
| Maximum Continuous Forward Current If | 70mA | |
| Peak Reverse Repetitive Voltage Vrrm | 70V | |
| Series | BAS70 | |
| Diode Configuration | Dual | |
| Rectifier Type | Schottky | |
| Pin Count | 4 | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Current Ir | 0.1μA | |
| Maximum Forward Voltage Vf | 1000mV | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100mA | |
| Maximum Operating Temperature | 125°C | |
| Height | 2.4mm | |
| Length | 2.9mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type SOT-143 | ||
Maximum Continuous Forward Current If 70mA | ||
Peak Reverse Repetitive Voltage Vrrm 70V | ||
Series BAS70 | ||
Diode Configuration Dual | ||
Rectifier Type Schottky | ||
Pin Count 4 | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Current Ir 0.1μA | ||
Maximum Forward Voltage Vf 1000mV | ||
Peak Non-Repetitive Forward Surge Current Ifsm 100mA | ||
Maximum Operating Temperature 125°C | ||
Height 2.4mm | ||
Length 2.9mm | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||
The Infineon silicon schottky diode for high-speed switching. That device is qualified according AEC Q101 with voltage clamping and Pb-free RoHS compliant package.
High level detecting and mixing
Circuit protection
