Nexperia 45 V 1.4 A Rectifier & Schottky Diode Schottky Barrier 2-Pin SOD-323 PMEG45T10EXD-QX
- RS Stock No.:
- 260-4717
- Mfr. Part No.:
- PMEG45T10EXD-QX
- Brand:
- Nexperia
Bulk discount available
Subtotal (1 pack of 25 units)*
£5.45
(exc. VAT)
£6.55
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 4,325 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.218 | £5.45 |
| 50 - 75 | £0.214 | £5.35 |
| 100 - 475 | £0.159 | £3.98 |
| 500 - 1975 | £0.155 | £3.88 |
| 2000 + | £0.151 | £3.78 |
*price indicative
- RS Stock No.:
- 260-4717
- Mfr. Part No.:
- PMEG45T10EXD-QX
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Mount Type | Surface | |
| Product Type | Rectifier & Schottky Diode | |
| Package Type | SOD-323 | |
| Maximum Continuous Forward Current If | 1.4A | |
| Peak Reverse Repetitive Voltage Vrrm | 45V | |
| Series | PMEG | |
| Rectifier Type | Schottky Barrier | |
| Pin Count | 2 | |
| Peak Reverse Current Ir | 8mA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 15A | |
| Maximum Forward Voltage Vf | 520mV | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Recovery Time trr | 8ns | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Length | 2.2mm | |
| Height | 0.68mm | |
| Width | 1.3 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Mount Type Surface | ||
Product Type Rectifier & Schottky Diode | ||
Package Type SOD-323 | ||
Maximum Continuous Forward Current If 1.4A | ||
Peak Reverse Repetitive Voltage Vrrm 45V | ||
Series PMEG | ||
Rectifier Type Schottky Barrier | ||
Pin Count 2 | ||
Peak Reverse Current Ir 8mA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 15A | ||
Maximum Forward Voltage Vf 520mV | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Recovery Time trr 8ns | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Length 2.2mm | ||
Height 0.68mm | ||
Width 1.3 mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY

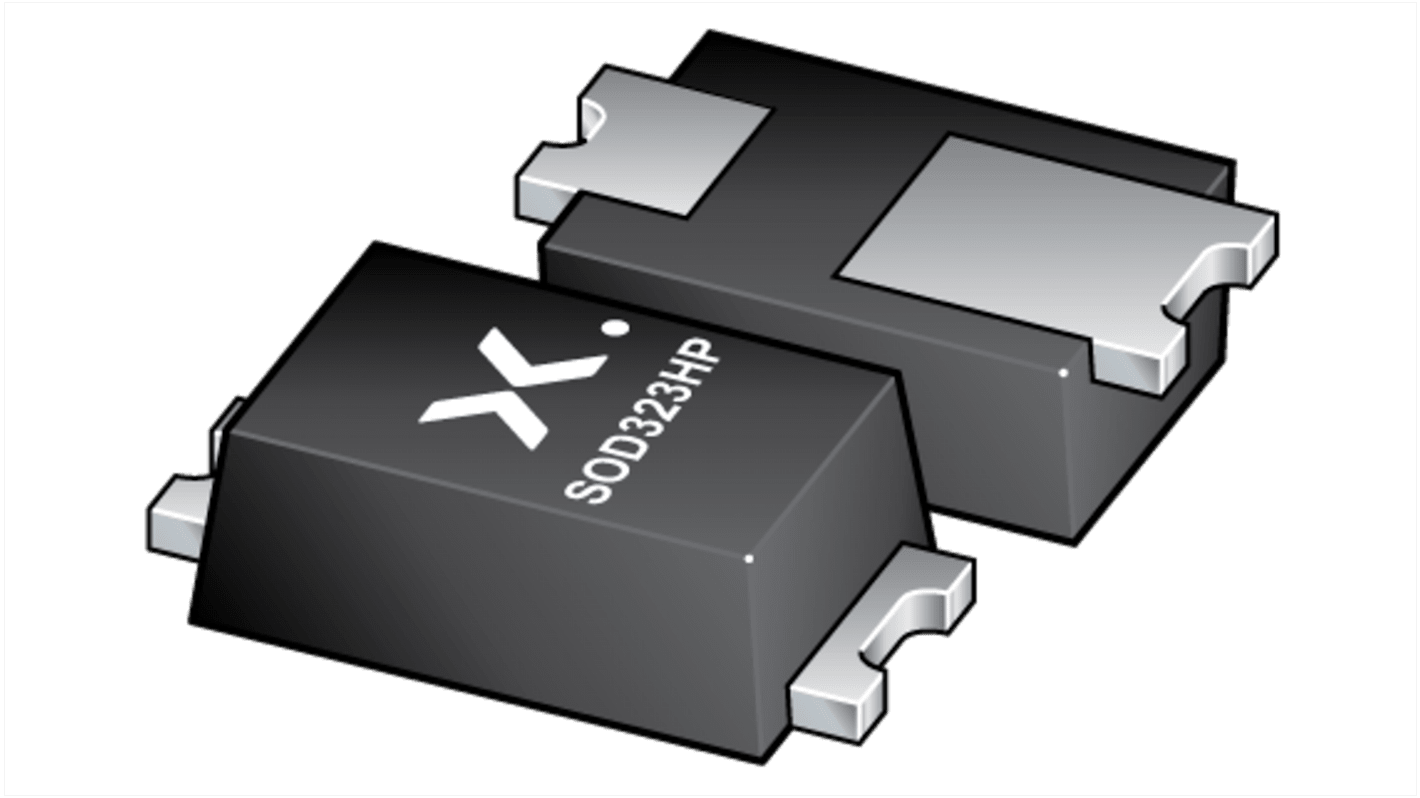

The Nexperia trench MEGA schottky barrier rectifier encapsulated in a CFP2-HP power flat lead surface mounted device plastic package.
Low forward voltage
Low leakage current
High power capability due to clip-bonding technology
