DiodesZetex 200 V Rectifier & Schottky Diode 3-Pin TO-220AB STPR2020CTW

View this category
Bulk discount available

Subtotal (1 pack of 25 units)*

£8.55

(exc. VAT)

£10.25

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 550 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
25 - 75£0.342£8.55
100 - 475£0.263£6.58
500 - 975£0.244£6.10
1000 +£0.209£5.23

*price indicative

Packaging Options:
RS Stock No.:
254-8796
Mfr. Part No.:
STPR2020CTW
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Product Type

Rectifier & Schottky Diode

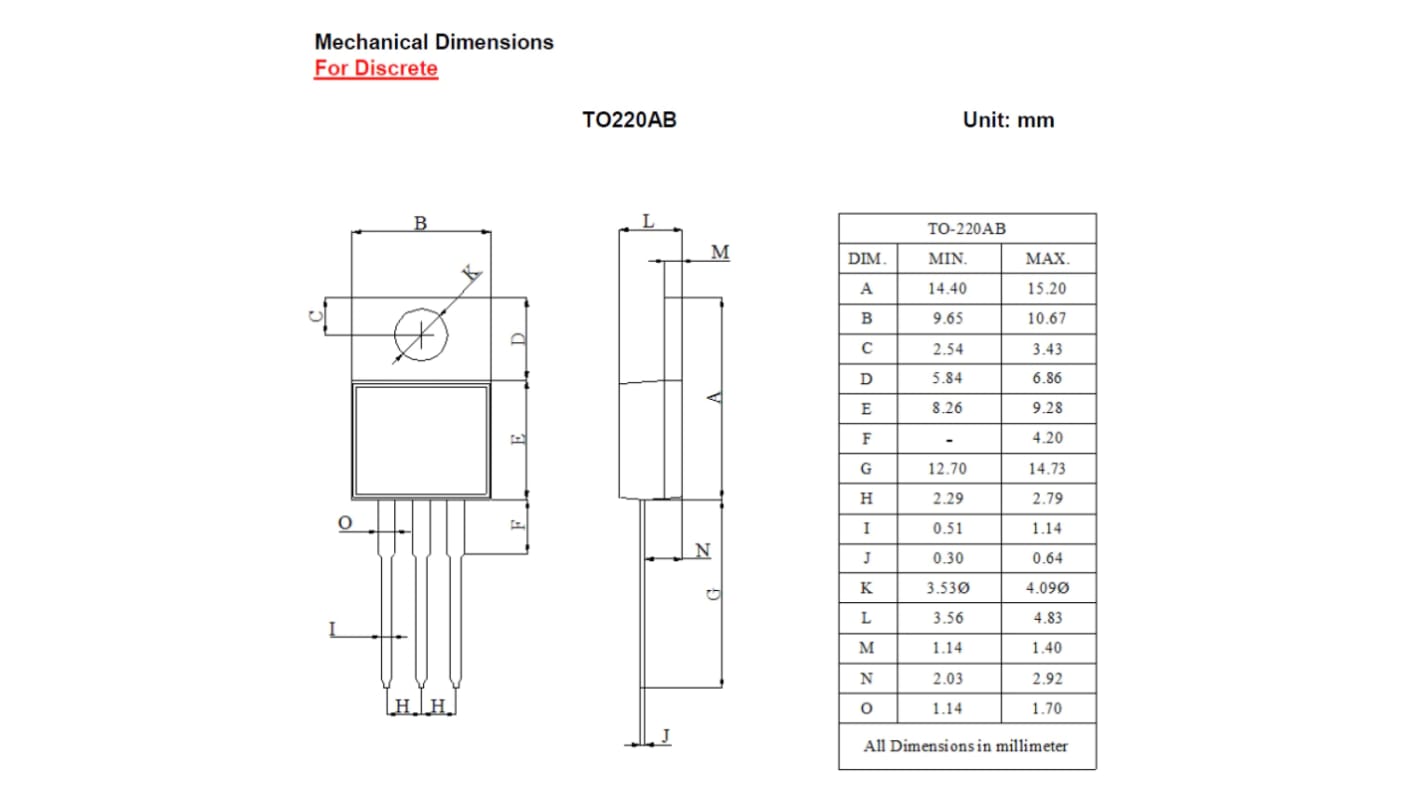

Package Type

TO-220AB

Peak Reverse Repetitive Voltage Vrrm

200V

Series

STPR2020CTW

Pin Count

3

Minimum Operating Temperature

-55°C

Peak Non-Repetitive Forward Surge Current Ifsm

125A

Maximum Forward Voltage Vf

1.25V

Maximum Operating Temperature

150°C

Width

4.83 mm

Length

10.67mm

Standards/Approvals

RoHS

Height

29.93mm

Automotive Standard

AEC-Q101

The DiodesZetex super fast glass passivated rectifier has superfast switching time for high efficiency. It has low forward voltage drop and high current capability. It has peak reverse voltage of 200 V and forward current of 20 A.

Glass passivated

Halogen and antimony free

Low reverse leakage current

Can be used for high frequency DC to DC converters
