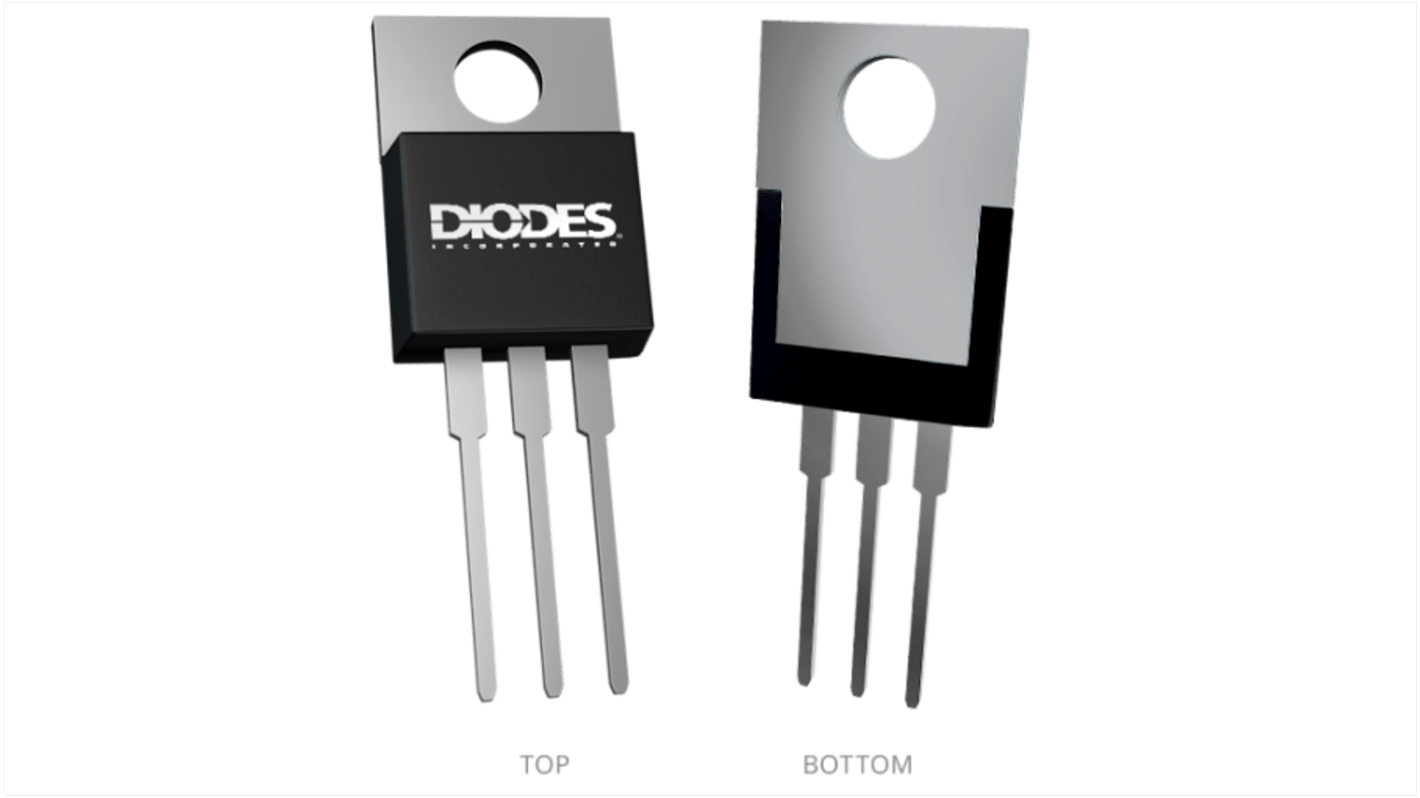

DiodesZetex 100 V Rectifier & Schottky Diode Avalanche 2-Pin TO-220AB

View this category
Bulk discount available

Subtotal (1 tube of 50 units)*

£49.45

(exc. VAT)

£59.35

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 150 unit(s), ready to ship
Units
Per unit
Per Tube*
50 - 50£0.989£49.45
100 - 450£0.759£37.95
500 - 950£0.633£31.65
1000 - 2450£0.52£26.00
2500 +£0.507£25.35

*price indicative

RS Stock No.:
246-7004
Mfr. Part No.:
SBRT40V100CT
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Product Type

Rectifier & Schottky Diode

Mount Type

Surface

Package Type

TO-220AB

Peak Reverse Repetitive Voltage Vrrm

100V

Series

SBRT4

Rectifier Type

Avalanche

Pin Count

2

Maximum Forward Voltage Vf

0.73V

Peak Reverse Current Ir

45mA

Peak Non-Repetitive Forward Surge Current Ifsm

180A

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

150°C

Height

4.82mm

Length

31.24mm

Width

10.66 mm

Standards/Approvals

RoHS

Automotive Standard

AEC-Q101

The DiodesZetex makes a Trench Super Barrier Rectifier packaged in the robust industry-standard TO220AB packages, the SBRT40V100CT provide very low VF and excellent reverse leakage stability at high temperatures. They are ideal for use as a rectifier, freewheel diode or blocking diode in applications like DC-DC Converters and AC-DC Adaptors.

It has reduced ultra-low Forward voltage drop (VF), better efficiency and cooler operation It offers reduced high temperature reverse leakage It offers increased reliability against thermal runaway failure in high temperature operation
