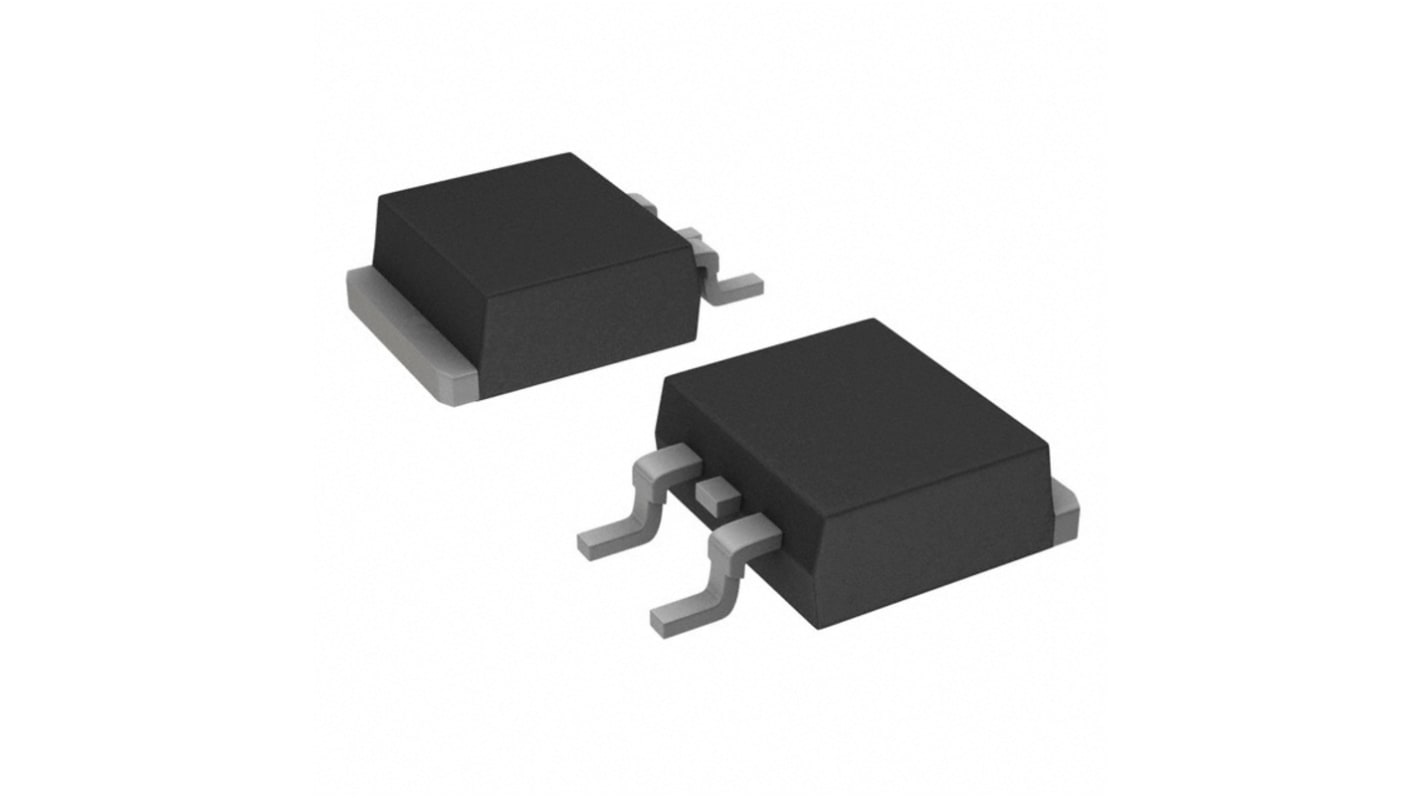

Diodes Inc 100V Rectifier Rectifier & Schottky Diode, 3-Pin D2PAK SBRT40M80CTB-13
- RS Stock No.:
- 246-7615
- Mfr. Part No.:
- SBRT40M80CTB-13
- Brand:
- DiodesZetex
Bulk discount available
Subtotal (1 pack of 5 units)*
£8.70
(exc. VAT)
£10.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 795 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 20 | £1.74 | £8.70 |
25 - 45 | £1.574 | £7.87 |
50 - 95 | £1.544 | £7.72 |
100 - 245 | £1.236 | £6.18 |
250 + | £1.212 | £6.06 |
*price indicative
- RS Stock No.:
- 246-7615
- Mfr. Part No.:
- SBRT40M80CTB-13
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | DiodesZetex | |
Mounting Type | Surface Mount | |
Package Type | TO-263 | |
Peak Reverse Repetitive Voltage | 100V | |
Rectifier Type | Avalanche | |
Diode Type | Rectifier | |
Pin Count | 3 | |
Select all | ||
---|---|---|
Brand DiodesZetex | ||
Mounting Type Surface Mount | ||
Package Type TO-263 | ||
Peak Reverse Repetitive Voltage 100V | ||
Rectifier Type Avalanche | ||
Diode Type Rectifier | ||
Pin Count 3 | ||
The DiodesZetex makes a Trench Super Barrier Rectifier(SBR), packaged in the robust industry-standard TO263AB (D2PAK) package, the SBRT40M80CTB provides very low VF and excellent reverse leakage stability at high temperatures. They are ideal for use as a rectifier, freewheel diode or blocking diode. It has a reduced low forward voltage drop (VF)
better efficiency and cooler operation. The device offers reduced high temperature reverse leakage
increased reliability against thermal runaway failure in high temperature operation.
Maximum average rectified output current per leg is 2 A Peak Repetitive reverse voltage VRRM is 80 V Peak Forward Surge current IFSM is 230 A Forward voltage drop VF is 0.59 V
