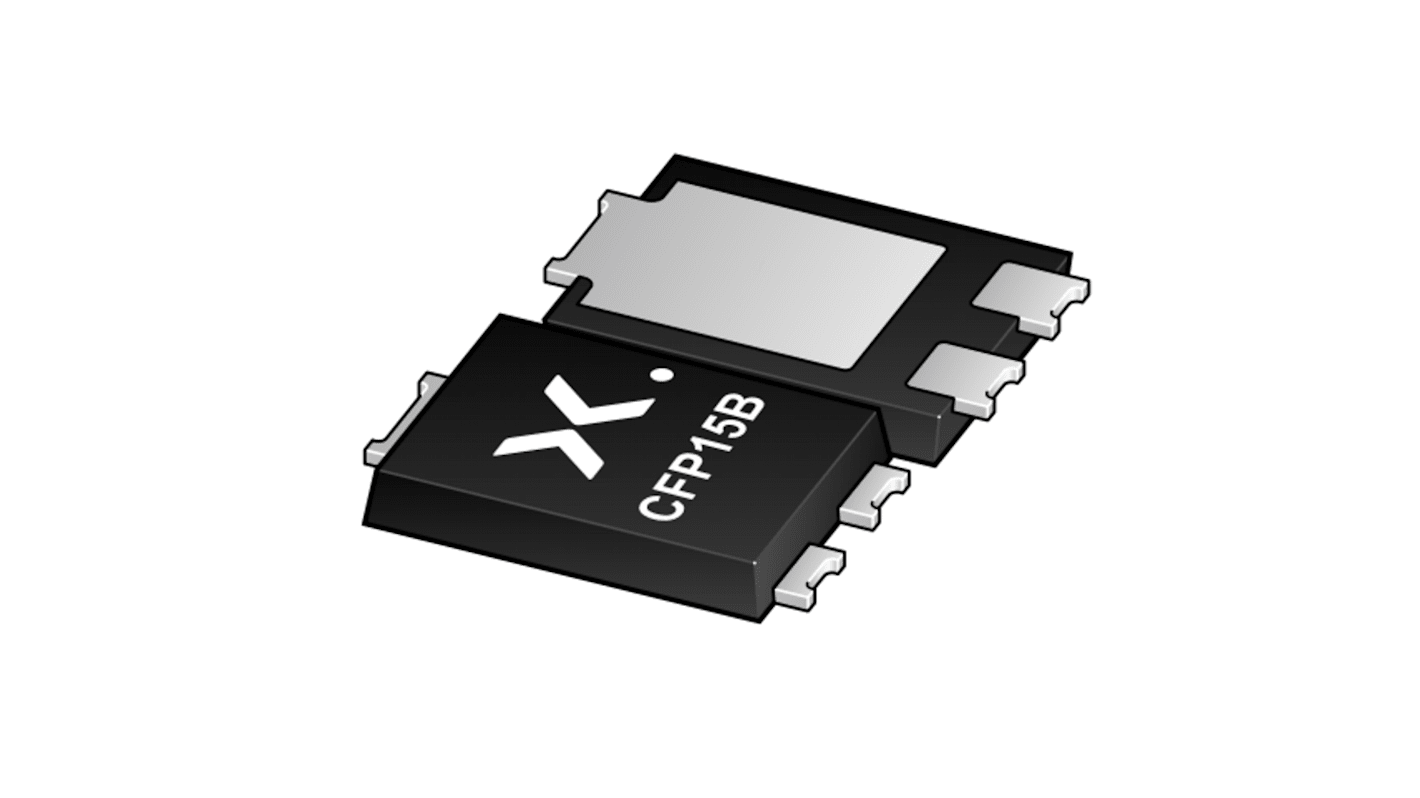

Nexperia 200 V 2 A Rectifier & Schottky Diode 3-Pin CFP15B PNE20040CPE-QZ
- RS Stock No.:
- 243-4867
- Mfr. Part No.:
- PNE20040CPE-QZ
- Brand:
- Nexperia
Bulk discount available
Subtotal (1 pack of 25 units)*
£11.80
(exc. VAT)
£14.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.472 | £11.80 |
| 50 - 475 | £0.463 | £11.58 |
| 500 - 975 | £0.277 | £6.93 |
| 1000 - 2475 | £0.239 | £5.98 |
| 2500 + | £0.234 | £5.85 |
*price indicative
- RS Stock No.:
- 243-4867
- Mfr. Part No.:
- PNE20040CPE-QZ
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Product Type | Rectifier & Schottky Diode | |
| Mount Type | Surface | |
| Package Type | CFP15B | |
| Maximum Continuous Forward Current If | 2A | |
| Peak Reverse Repetitive Voltage Vrrm | 200V | |
| Diode Configuration | Dual Common Cathode | |
| Series | PNE20040CPE-Q | |
| Pin Count | 3 | |
| Peak Reverse Current Ir | 20μA | |
| Maximum Forward Voltage Vf | 980mV | |
| Minimum Operating Temperature | -55°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A | |
| Maximum Operating Temperature | 175°C | |
| Peak Reverse Recovery Time trr | 25ns | |
| Standards/Approvals | IEC60134, AEC-Q101 | |
| Height | 0.95mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Product Type Rectifier & Schottky Diode | ||
Mount Type Surface | ||
Package Type CFP15B | ||
Maximum Continuous Forward Current If 2A | ||
Peak Reverse Repetitive Voltage Vrrm 200V | ||
Diode Configuration Dual Common Cathode | ||
Series PNE20040CPE-Q | ||
Pin Count 3 | ||
Peak Reverse Current Ir 20μA | ||
Maximum Forward Voltage Vf 980mV | ||
Minimum Operating Temperature -55°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 100A | ||
Maximum Operating Temperature 175°C | ||
Peak Reverse Recovery Time trr 25ns | ||
Standards/Approvals IEC60134, AEC-Q101 | ||
Height 0.95mm | ||
Automotive Standard AEC-Q101 | ||
The Nexperia high power density, hyper fast switching time dual recovery rectifier in common cathode configuration with high-efficiency planar technology, encapsulated in a CFP15B (SOT1289B) power and flat lead Surface-Mounted Device (SMD) plastic package.
Reverse voltage less than 200 V
Forward current is less than and equal to 2 A (per diode)
Pt doped life time control
Low inductance
Power and flat lead SMD plastic package
Package height typical 0.95 mm
High power capability due to clip-bond technology
Planar die design
General-purpose rectification
Hyperfast switching
Solenoid control
Piezo injection
Freewheeling applications
