Nexperia 100 V 20 A Rectifier & Schottky Diode Schottky Barrier 3-Pin CFP15B PMEG100T200ELPEZ

View this category
Bulk discount available

Subtotal (1 pack of 10 units)*

£6.06

(exc. VAT)

£7.27

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4,800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 40£0.606£6.06
50 - 490£0.594£5.94
500 - 990£0.388£3.88
1000 - 2490£0.311£3.11
2500 +£0.288£2.88

*price indicative

Packaging Options:
RS Stock No.:
243-4857
Mfr. Part No.:
PMEG100T200ELPEZ
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Mount Type

Surface

Product Type

Rectifier & Schottky Diode

Package Type

CFP15B

Maximum Continuous Forward Current If

20A

Peak Reverse Repetitive Voltage Vrrm

100V

Series

PMEG100T200ELPE

Diode Configuration

Single

Rectifier Type

Schottky Barrier

Pin Count

3

Peak Non-Repetitive Forward Surge Current Ifsm

260A

Minimum Operating Temperature

-55°C

Peak Reverse Current Ir

10mA

Maximum Forward Voltage Vf

840mV

Maximum Operating Temperature

175°C

Peak Reverse Recovery Time trr

55ns

Standards/Approvals

No

Automotive Standard

AEC-Q101

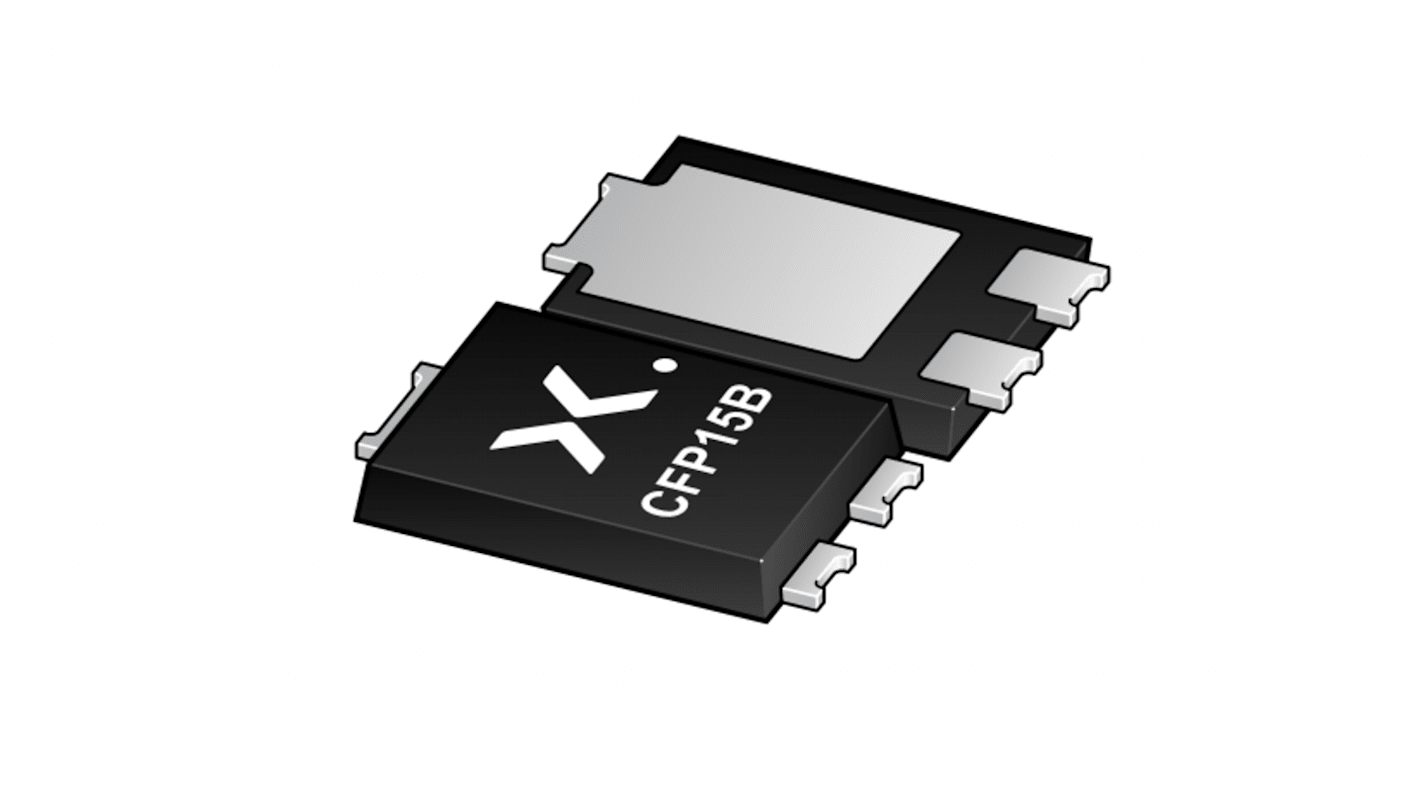

The Nexperia low leakage current Trench MEGA Schottky barrier rectifier encapsulated in a CFP15B (SOT1289B) power and flat lead surface mounted device (SMD) plastic package.

Low forward voltage

Low Qrr and low IRM

Low leakage current

High power capability due to clip-bonding technology

Small and flat lead SMD power plastic package

High efficiency DC-to-DC conversion

LED lighting

Switch mode power supply

Freewheeling application

Reverse polarity protection

OR-ing
