Nexperia 100 V 1 A Rectifier & Schottky Diode Trench MEGA Schottky 2-Pin SOD-123W PMEG100T10ELRX

View this category
Bulk discount available

Subtotal (1 pack of 25 units)*

£6.65

(exc. VAT)

£7.975

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 1,650 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
25 - 25£0.266£6.65
50 - 75£0.262£6.55
100 - 225£0.192£4.80
250 - 975£0.188£4.70
1000 +£0.183£4.58

*price indicative

Packaging Options:
RS Stock No.:
243-4855
Mfr. Part No.:
PMEG100T10ELRX
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Mount Type

Surface

Product Type

Rectifier & Schottky Diode

Package Type

SOD-123W

Maximum Continuous Forward Current If

1A

Peak Reverse Repetitive Voltage Vrrm

100V

Series

PMEG100T10ELR

Diode Configuration

Single

Rectifier Type

Trench MEGA Schottky

Pin Count

2

Minimum Operating Temperature

-55°C

Peak Non-Repetitive Forward Surge Current Ifsm

40A

Maximum Forward Voltage Vf

750mV

Maximum Operating Temperature

175°C

Peak Reverse Recovery Time trr

11.5ns

Standards/Approvals

No

Automotive Standard

AEC-Q101

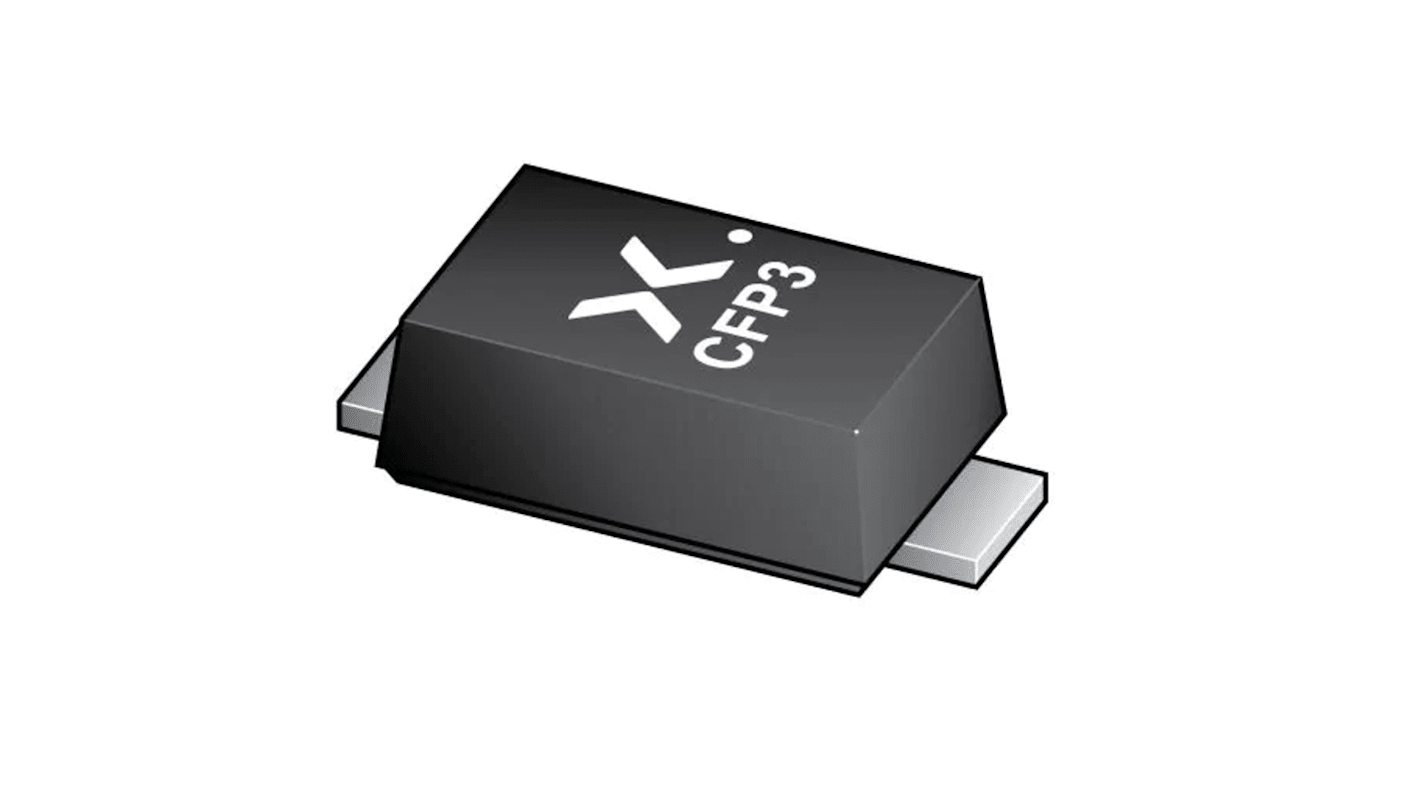

The Nexperia low leakage current trench maximum efficiency general application schottky barrier rectifier encapsulated in a CFP3 (SOD123W) small and flat lead Surface-Mounted Device (SMD) plastic package.

Low forward voltage

Low Qrr and low IRM

Low leakage current

High power capability due to clip-bonding technology

Small and flat lead SMD power plastic package

High efficiency DC-to-DC conversion

LED lighting

Switch mode power supply

Freewheeling applications

Reverse polarity protection

OR-ing
