Nexperia 100V 10A, Rectifier & Schottky Diode, CFP15B PMEG100T100ELPEZ
- RS Stock No.:
- 243-4850
- Mfr. Part No.:
- PMEG100T100ELPEZ
- Brand:
- Nexperia
4900 In stock - FREE next working day delivery available
Price Each (On a Reel of 5000)
£0.248
(exc. VAT)
£0.298
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 5000 + | £0.248 | £1,240.00 |
*price indicative
- RS Stock No.:
- 243-4850
- Mfr. Part No.:
- PMEG100T100ELPEZ
- Brand:
- Nexperia
Technical Reference
Legislation and Compliance
Product Details

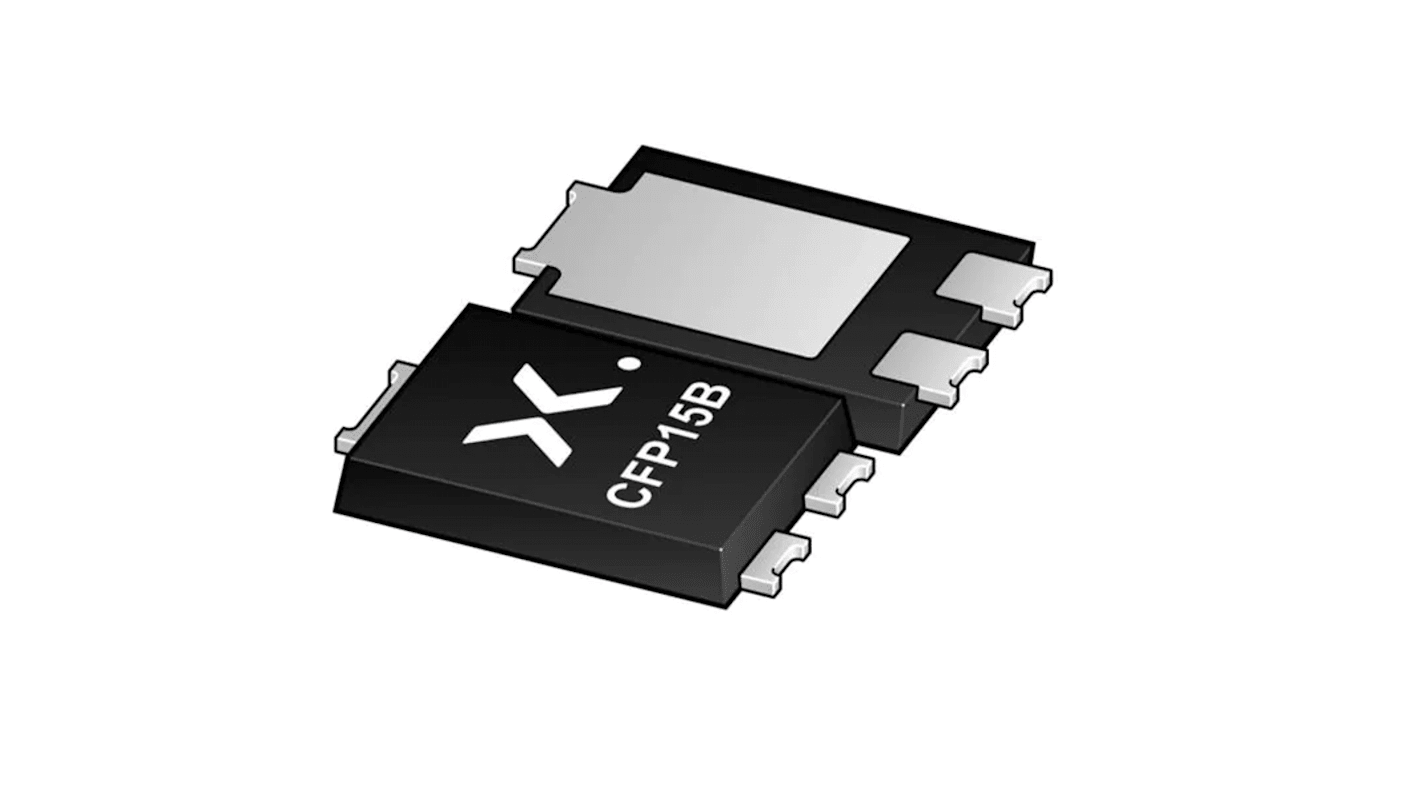

The Nexperia low leakage current Trench MEGA Schottky barrier rectifier which is encapsulated in a CFP15B (SOT1289B) power. It is a flat lead surface mounted device (SMD) with plastic package.
Low forward voltage
Low Qrr and low IRM
Low leakage current
High power capability due to clip-bonding technology
Small and flat lead SMD power plastic package
Low Qrr and low IRM
Low leakage current
High power capability due to clip-bonding technology
Small and flat lead SMD power plastic package
High efficiency DC-to-DC conversion
Automotive LED lighting
Switch mode power supply
Freewheeling application
Reverse polarity protection
OR-ing
Automotive LED lighting
Switch mode power supply
Freewheeling application
Reverse polarity protection
OR-ing
Specifications
Attribute | Value |
|---|---|
| Mounting Type | PCB Mount |
| Package Type | CFP15B |
| Maximum Continuous Forward Current | 10A |
| Peak Reverse Repetitive Voltage | 100V |
| Diode Configuration | Single |
