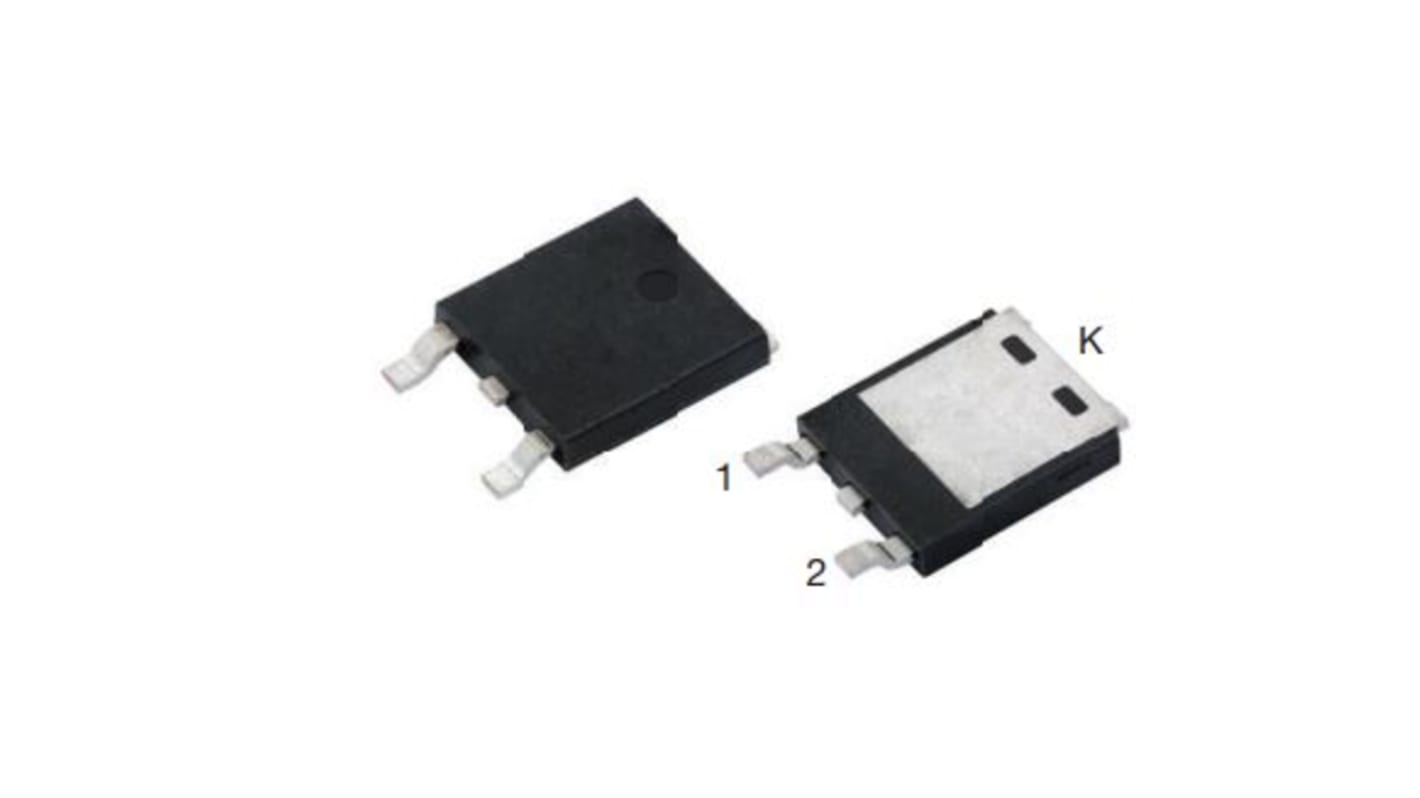

Vishay 100 V 40 A Rectifier & Schottky Diode Schottky 3-Pin DPAK V40PWM10CHM3/I
- RS Stock No.:
- 238-7498
- Mfr. Part No.:
- V40PWM10CHM3/I
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 5 units)*
£6.49
(exc. VAT)
£7.79
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 4,425 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.298 | £6.49 |
| 50 - 245 | £1.168 | £5.84 |
| 250 - 495 | £1.104 | £5.52 |
| 500 - 1245 | £1.066 | £5.33 |
| 1250 + | £1.038 | £5.19 |
*price indicative
- RS Stock No.:
- 238-7498
- Mfr. Part No.:
- V40PWM10CHM3/I
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Rectifier & Schottky Diode | |
| Mount Type | Surface | |
| Package Type | TO-252 | |
| Maximum Continuous Forward Current If | 40A | |
| Peak Reverse Repetitive Voltage Vrrm | 100V | |
| Series | eSMP | |
| Diode Configuration | 2x Common Cathode Pair | |
| Rectifier Type | Schottky | |
| Pin Count | 3 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 240A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Forward Voltage Vf | 0.89V | |
| Peak Reverse Current Ir | 21mA | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS, UL 94 V-0 | |
| Diameter | 13 in | |
| Height | 1.3mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Rectifier & Schottky Diode | ||
Mount Type Surface | ||
Package Type TO-252 | ||
Maximum Continuous Forward Current If 40A | ||
Peak Reverse Repetitive Voltage Vrrm 100V | ||
Series eSMP | ||
Diode Configuration 2x Common Cathode Pair | ||
Rectifier Type Schottky | ||
Pin Count 3 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 240A | ||
Minimum Operating Temperature -40°C | ||
Maximum Forward Voltage Vf 0.89V | ||
Peak Reverse Current Ir 21mA | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS, UL 94 V-0 | ||
Diameter 13 in | ||
Height 1.3mm | ||
Automotive Standard AEC-Q101 | ||
The Vishay high current density surface-mount TMBS rectifier has very low profile that is typical height of 1.3 mm. It also meets MSL level 1, per J-STD-020, LF maximum Peak of 260 °C and is it Ideal for automated placement. It can be use in low voltage high frequency DC/DC converters, freewheeling diodes, and polarity protection applications.
Trench MOS Schottky technology
Low forward voltage drop
High efficiency operation
Low power losses
AEC-Q101 qualified available
