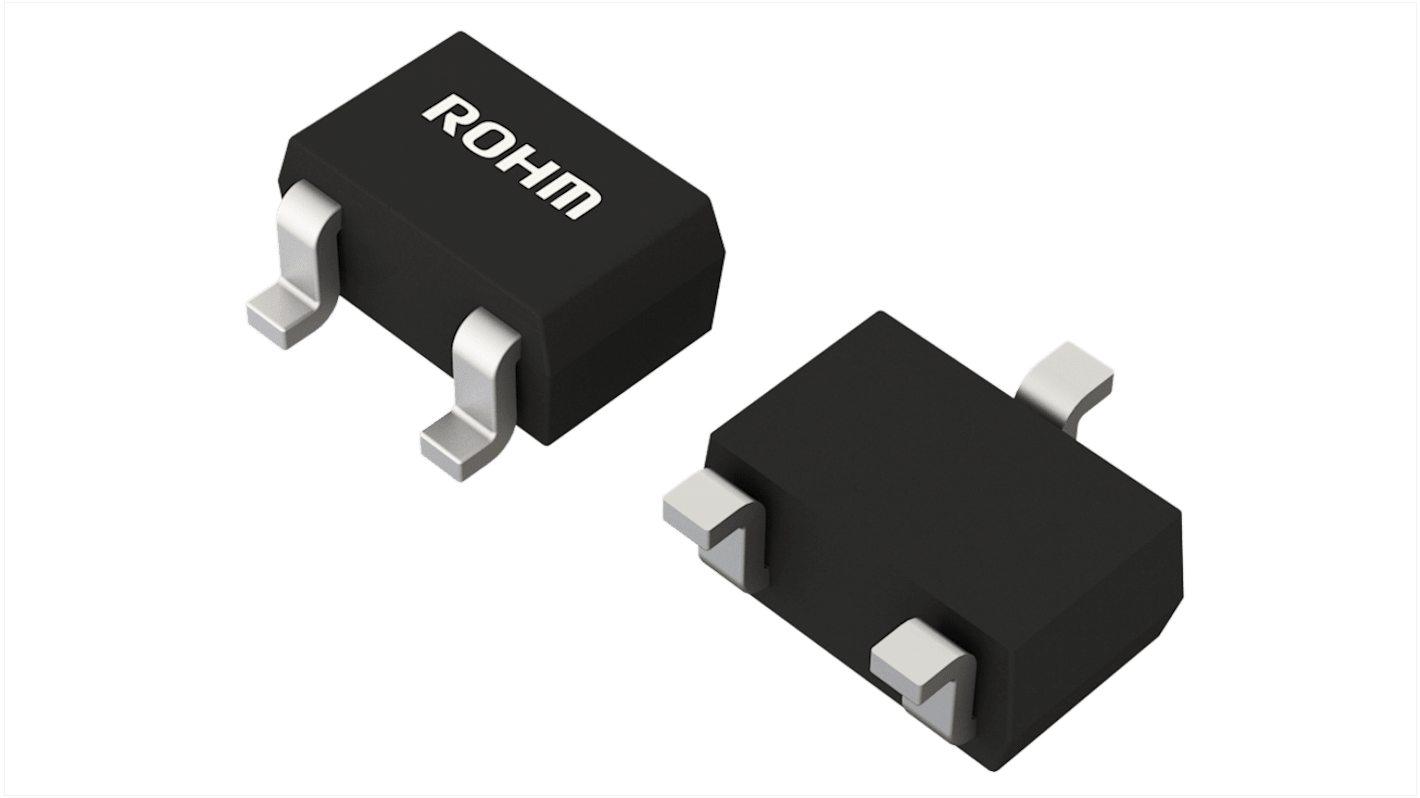

ROHM 40V 80mA, Schottky Diode, 3-Pin SOT-323 RB508FM-40CFHT106
- RS Stock No.:
- 237-4363
- Mfr. Part No.:
- RB508FM-40CFHT106
- Brand:
- ROHM
2900 In stock - FREE next working day delivery available
Price Each (In a Pack of 25)
£0.164
(exc. VAT)
£0.197
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.164 | £4.10 |
| 50 - 75 | £0.16 | £4.00 |
| 100 - 225 | £0.102 | £2.55 |
| 250 - 975 | £0.10 | £2.50 |
| 1000 + | £0.072 | £1.80 |
*price indicative
- RS Stock No.:
- 237-4363
- Mfr. Part No.:
- RB508FM-40CFHT106
- Brand:
- ROHM
Technical Reference
Legislation and Compliance
Product Details
The ROHM RB508FM-40CFH series Schottky barrier diode has SOT-323 package and suitable for general rectification. It has reverse voltage of 40V, forward voltage of 0.66V, rectified forward current of 0.08A and reverse current of 0.34mA. This diode has three terminals and C-Common configuration.
Surface mount
High reliability
Small mold type
Ultra Low IR
Storage temperature range between -55°C and 150°C
AEC-Q101 qualified
High reliability
Small mold type
Ultra Low IR
Storage temperature range between -55°C and 150°C
AEC-Q101 qualified
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | SOT-323 |
| Maximum Continuous Forward Current | 80mA |
| Peak Reverse Repetitive Voltage | 40V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky Diode |
| Diode Type | Schottky |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Diode Technology | Schottky Barrier |
