ROHM 25 V 0.7 A Diode Schottky 3-Pin SOT-323 RB461FMT106
- RS Stock No.:
- 237-4359
- Mfr. Part No.:
- RB461FMT106
- Brand:
- ROHM
Subtotal (1 pack of 50 units)*
£5.70
(exc. VAT)
£6.85
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2,650 unit(s) shipping from 19 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £0.114 | £5.70 |
*price indicative
- RS Stock No.:
- 237-4359
- Mfr. Part No.:
- RB461FMT106
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | SOT-323 | |
| Maximum Continuous Forward Current If | 0.7A | |
| Peak Reverse Repetitive Voltage Vrrm | 25V | |
| Diode Configuration | Single | |
| Rectifier Type | Schottky | |
| Pin Count | 3 | |
| Peak Reverse Current Ir | 200μA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 3A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Forward Voltage Vf | 0.49V | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type SOT-323 | ||
Maximum Continuous Forward Current If 0.7A | ||
Peak Reverse Repetitive Voltage Vrrm 25V | ||
Diode Configuration Single | ||
Rectifier Type Schottky | ||
Pin Count 3 | ||
Peak Reverse Current Ir 200μA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 3A | ||
Minimum Operating Temperature -40°C | ||
Maximum Forward Voltage Vf 0.49V | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||

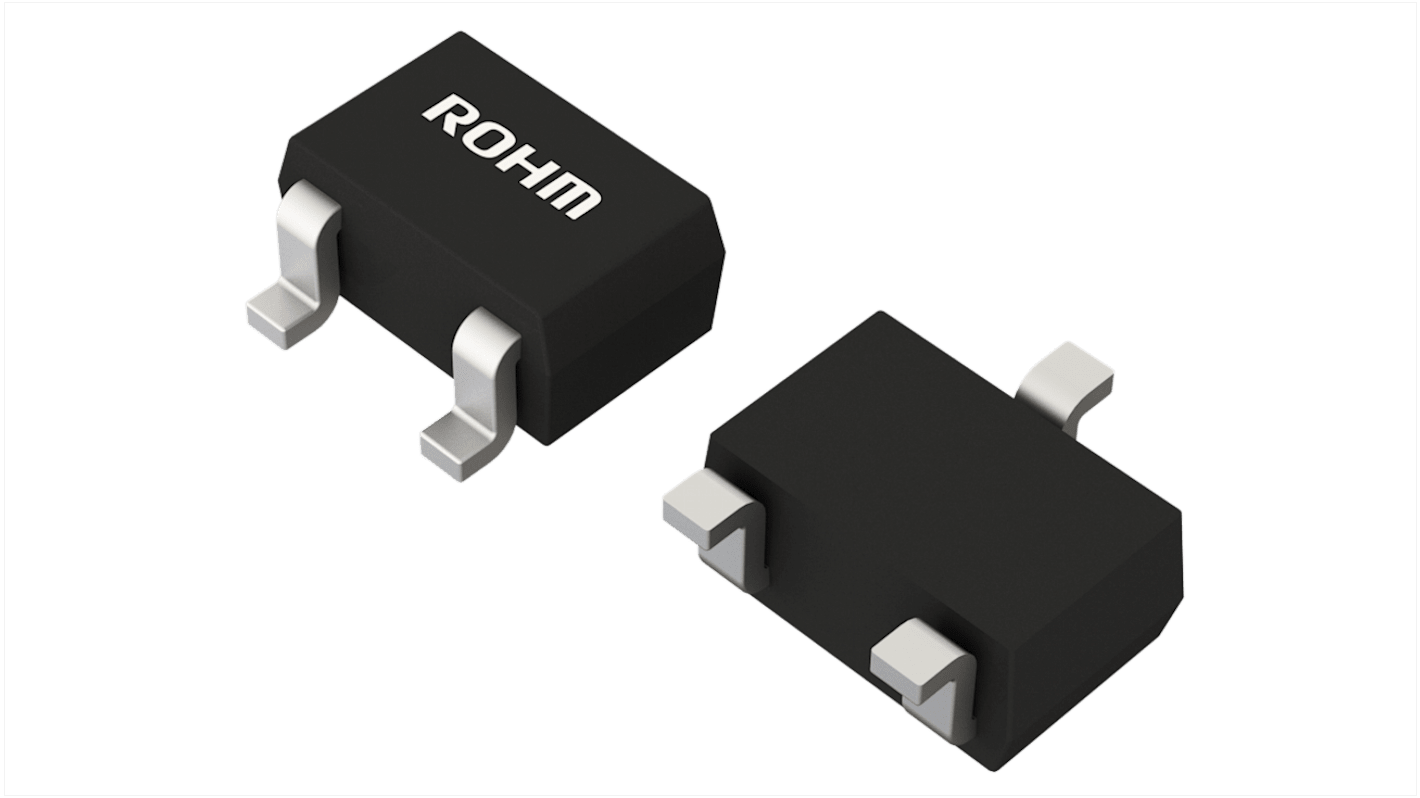

The ROHM RB461FMFH series Schottky barrier diode has SOT-323 package and suitable for general rectification. It has reverse voltage of 20V, forward voltage of 0.49V, rectified forward current of 0.7A and reverse current of 0.2mA. This diode has three terminals and single configuration.
Surface mount
High reliability
Small mold type
Ultra Low VF
Storage temperature range between -40°C and 125°C
