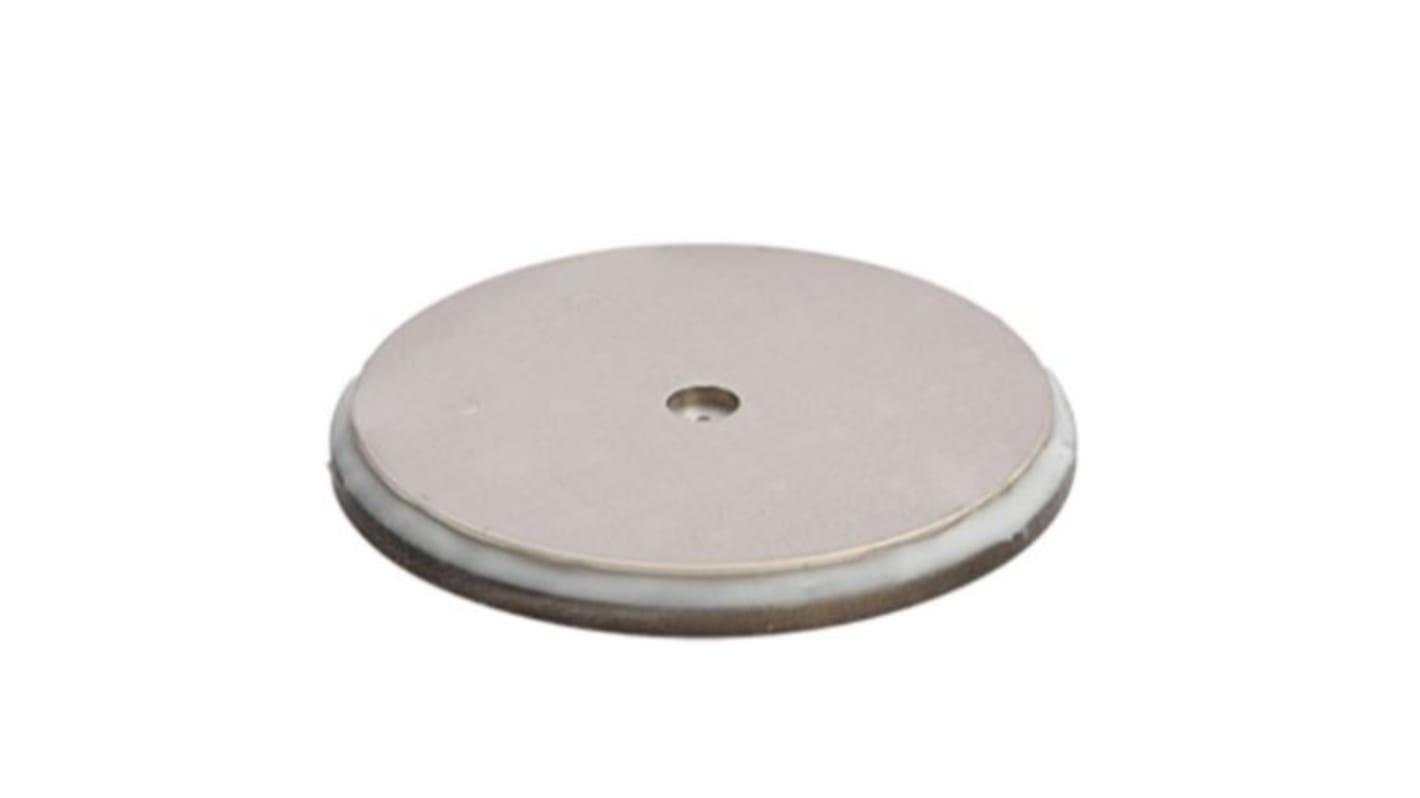

Infineon 600 V 7.74 kA Rectifier Diode General Purpose 2-Pin K-PUK 46DN06B02ELEMXPSA1
- RS Stock No.:
- 233-3485
- Mfr. Part No.:
- 46DN06B02ELEMXPSA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£175.95
(exc. VAT)
£211.14
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 09 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £175.95 |
| 2 - 4 | £167.15 |
| 5 + | £160.12 |
*price indicative
- RS Stock No.:
- 233-3485
- Mfr. Part No.:
- 46DN06B02ELEMXPSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Rectifier Diode | |
| Mount Type | Surface | |
| Package Type | K-PUK | |
| Maximum Continuous Forward Current If | 7.74kA | |
| Peak Reverse Repetitive Voltage Vrrm | 600V | |
| Diode Configuration | Common Anode | |
| Series | 46DN06B02 | |
| Rectifier Type | General Purpose | |
| Pin Count | 2 | |
| Maximum Forward Voltage Vf | 980mV | |
| Peak Reverse Current Ir | 40mA | |
| Minimum Operating Temperature | -40°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 55kA | |
| Maximum Operating Temperature | 180°C | |
| Standards/Approvals | No | |
| Height | 4mm | |
| Diameter | 46mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Rectifier Diode | ||
Mount Type Surface | ||
Package Type K-PUK | ||
Maximum Continuous Forward Current If 7.74kA | ||
Peak Reverse Repetitive Voltage Vrrm 600V | ||
Diode Configuration Common Anode | ||
Series 46DN06B02 | ||
Rectifier Type General Purpose | ||
Pin Count 2 | ||
Maximum Forward Voltage Vf 980mV | ||
Peak Reverse Current Ir 40mA | ||
Minimum Operating Temperature -40°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 55kA | ||
Maximum Operating Temperature 180°C | ||
Standards/Approvals No | ||
Height 4mm | ||
Diameter 46mm | ||
Automotive Standard No | ||
The Infineon welding diodes with a diameter of 46 mm. This is new designed welding diode with improved losses for medium frequency resistance welding and high current rectifier applications. The low on state voltage allows very high forward current of around 8040 A continuously which is more than our current type 46DN06.
High forward current up to 8 kA
Low losses
Highest reliability
