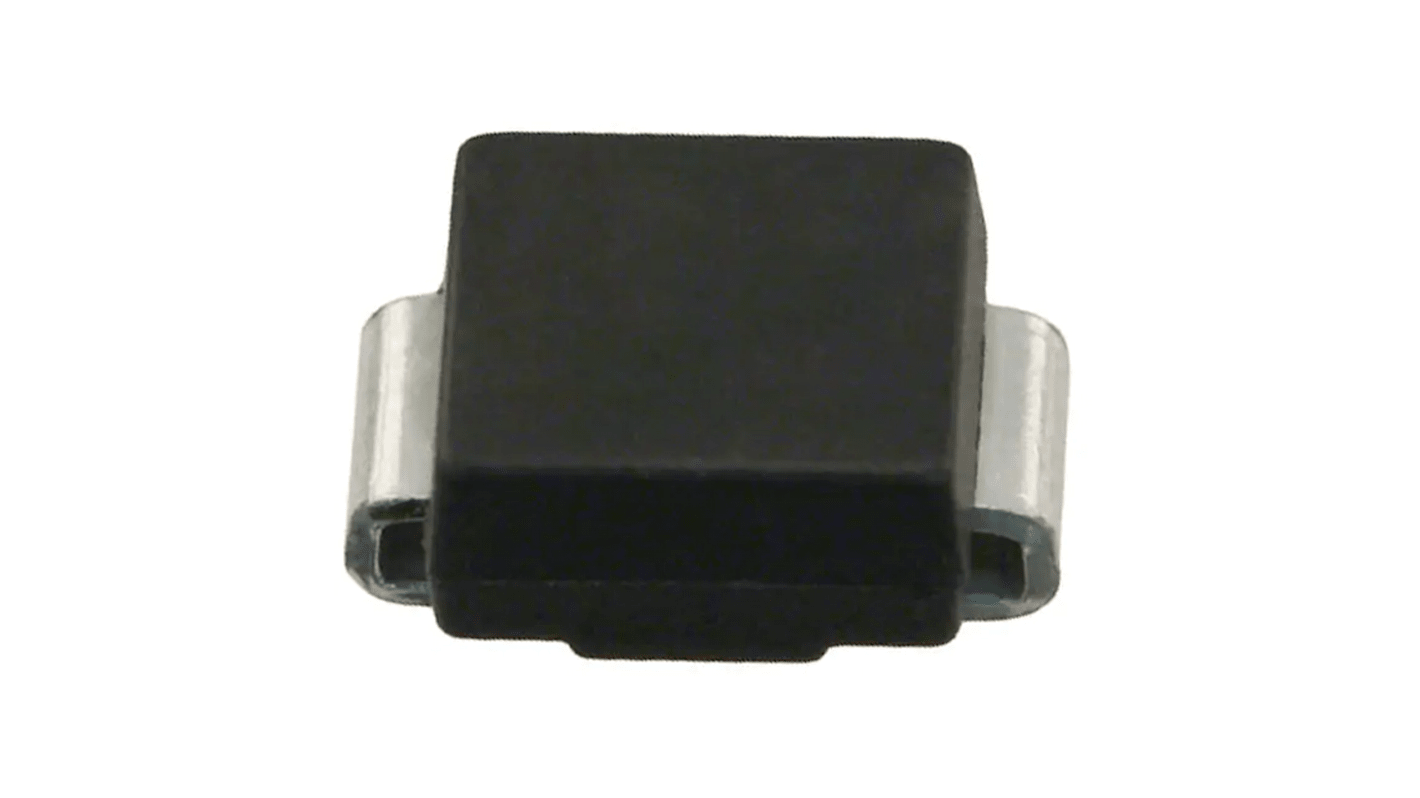

STMicroelectronics 60 V 5 A Rectifier & Schottky Diode Schottky SMB STPS5L60U
- RS Stock No.:
- 233-3095
- Distrelec Article No.:
- 304-40-820
- Mfr. Part No.:
- STPS5L60U
- Brand:
- STMicroelectronics
Get a bulk buy discount
Add 100 more to save £14.50
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£4.66
(exc. VAT)
£5.59
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1,480 unit(s) shipping from 23 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* | Saving |
|---|---|---|---|
| 10 - 90 | £0.466 | £4.66 | - |
| 100 - 490 | £0.321 | £3.21 | £14.50 |
| 500 - 990 | £0.247 | £2.47 | £109.50 |
| 1000 - 2490 | £0.224 | £2.24 | £242.00 |
| 2500 + | £0.177 | £1.77 | £722.50 |
*price indicative
- RS Stock No.:
- 233-3095
- Distrelec Article No.:
- 304-40-820
- Mfr. Part No.:
- STPS5L60U
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Mount Type | Surface | |
| Product Type | Rectifier & Schottky Diode | |
| Package Type | SMB | |
| Maximum Continuous Forward Current If | 5A | |
| Peak Reverse Repetitive Voltage Vrrm | 60V | |
| Series | STPS5L60 | |
| Rectifier Type | Schottky | |
| Minimum Operating Temperature | -65°C | |
| Peak Reverse Current Ir | 100mA | |
| Maximum Forward Voltage Vf | 420mV | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 205A | |
| Maximum Operating Temperature | 150°C | |
| Width | 3.95mm | |
| Standards/Approvals | RoHS | |
| Height | 1.1mm | |
| Length | 4.6mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Mount Type Surface | ||
Product Type Rectifier & Schottky Diode | ||
Package Type SMB | ||
Maximum Continuous Forward Current If 5A | ||
Peak Reverse Repetitive Voltage Vrrm 60V | ||
Series STPS5L60 | ||
Rectifier Type Schottky | ||
Minimum Operating Temperature -65°C | ||
Peak Reverse Current Ir 100mA | ||
Maximum Forward Voltage Vf 420mV | ||
Peak Non-Repetitive Forward Surge Current Ifsm 205A | ||
Maximum Operating Temperature 150°C | ||
Width 3.95mm | ||
Standards/Approvals RoHS | ||
Height 1.1mm | ||
Length 4.6mm | ||
Automotive Standard No | ||
The STMicroelectronics Power Schottky rectifier suited for switch mode power supplies and high frequency inverters. This device is intended for use in low voltage output for small battery chargers and consumer SMPS such as DVD and set-top box.
Negligible switching losses
Low forward voltage drop for higher efficiency
Low thermal resistance
Avalanche capability specified
