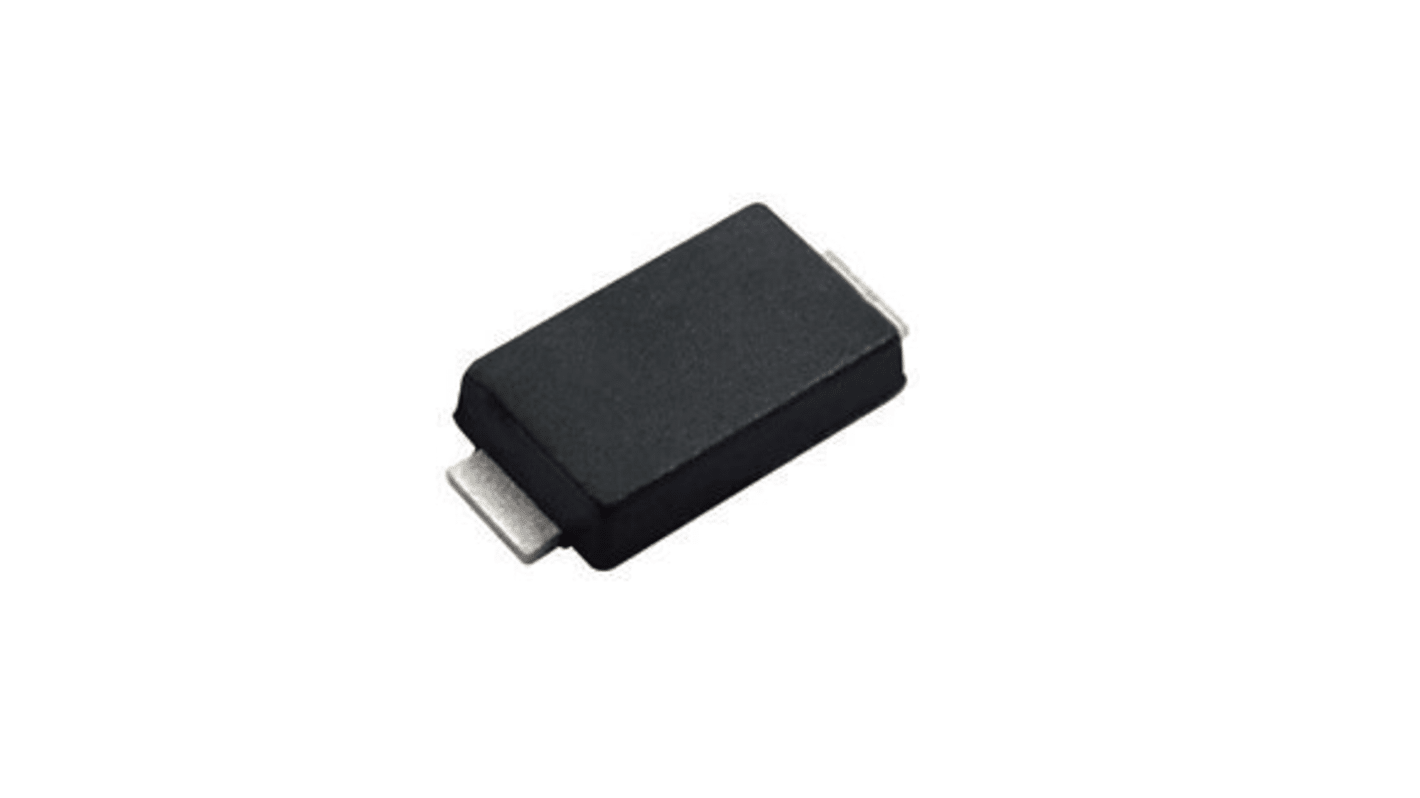

Vishay 200V 8A, Schottky Rectifier & Schottky Diode, 2-Pin SMPA (DO-221BC) V8PA22HM3/I
- RS Stock No.:
- 233-1051
- Mfr. Part No.:
- V8PA22HM3/I
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 25 units)*
£14.00
(exc. VAT)
£16.75
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 13,725 unit(s), ready to ship
Units | Per unit | Per Pack* |
---|---|---|
25 - 100 | £0.56 | £14.00 |
125 - 225 | £0.37 | £9.25 |
250 - 600 | £0.297 | £7.43 |
625 - 1225 | £0.286 | £7.15 |
1250 + | £0.28 | £7.00 |
*price indicative
- RS Stock No.:
- 233-1051
- Mfr. Part No.:
- V8PA22HM3/I
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vishay | |
Mounting Type | Surface Mount | |
Package Type | SMPA (DO-221BC) | |
Maximum Continuous Forward Current | 8A | |
Peak Reverse Repetitive Voltage | 200V | |
Diode Configuration | Single | |
Rectifier Type | Schottky Rectifier | |
Diode Type | Schottky | |
Pin Count | 2 | |
Number of Elements per Chip | 1 | |
Diode Technology | Schottky Barrier | |
Select all | ||
---|---|---|
Brand Vishay | ||
Mounting Type Surface Mount | ||
Package Type SMPA (DO-221BC) | ||
Maximum Continuous Forward Current 8A | ||
Peak Reverse Repetitive Voltage 200V | ||
Diode Configuration Single | ||
Rectifier Type Schottky Rectifier | ||
Diode Type Schottky | ||
Pin Count 2 | ||
Number of Elements per Chip 1 | ||
Diode Technology Schottky Barrier | ||
The Vishay surface mount TMBS(trench MOS barrier Schottky) rectifier comes in SMPA (DO-221BC) very low profile package. It has 200V maximum repetitive peak reverse voltage, 8A maximum DC forward current and operating junction temperature range from -40°C to +175°C. Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C. It is used in high frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial and automotive applications.
Low power losses, high efficiency
Low forward voltage drop
Low forward voltage drop
