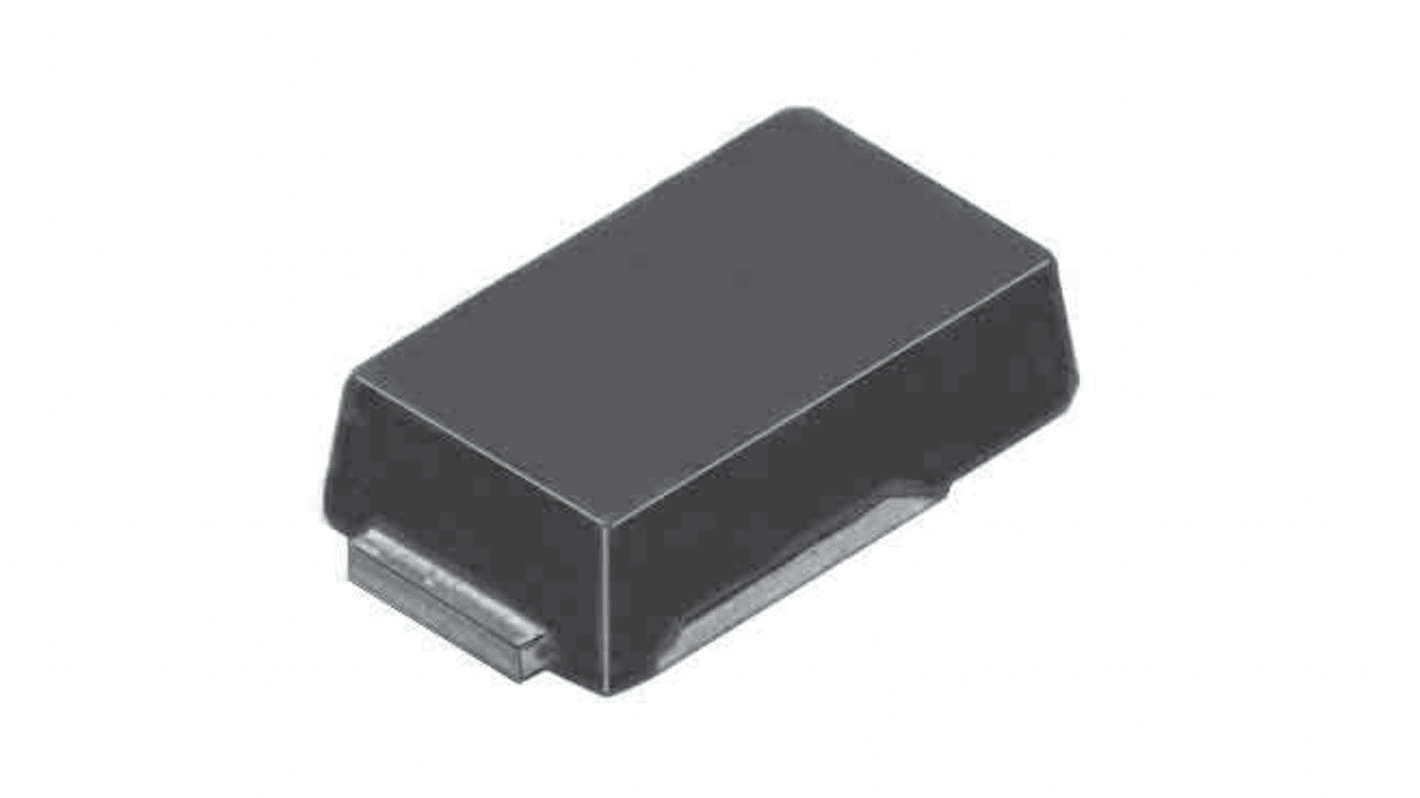

Vishay 100V 2A, Schottky Rectifier & Schottky Diode, 2-Pin SMP (DO-220AA) V2PM10LHM3/H
- RS Stock No.:
- 233-1043
- Mfr. Part No.:
- V2PM10LHM3/H
- Brand:
- Vishay
8900 In stock - FREE next working day delivery available
Price Each (On a Reel of 3000)
£0.077
(exc. VAT)
£0.092
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 3000 | £0.077 | £231.00 |
| 6000 + | £0.073 | £219.00 |
*price indicative
- RS Stock No.:
- 233-1043
- Mfr. Part No.:
- V2PM10LHM3/H
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
Product Details
The Vishay surface mount TMBS(trench MOS barrier Schottky) rectifier comes in SMP (DO-220AA) low profile package. It has 100V maximum repetitive peak reverse voltage, 2A maximum DC forward current and operating junction temperature range from -40°C to +175°C. Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C. Typically it is used in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Low power losses, high efficiency
Low forward voltage drop
Low forward voltage drop
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | SMP (DO-220AA) |
| Maximum Continuous Forward Current | 2A |
| Peak Reverse Repetitive Voltage | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky Rectifier |
| Diode Type | Schottky |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Diode Technology | Schottky Barrier |
