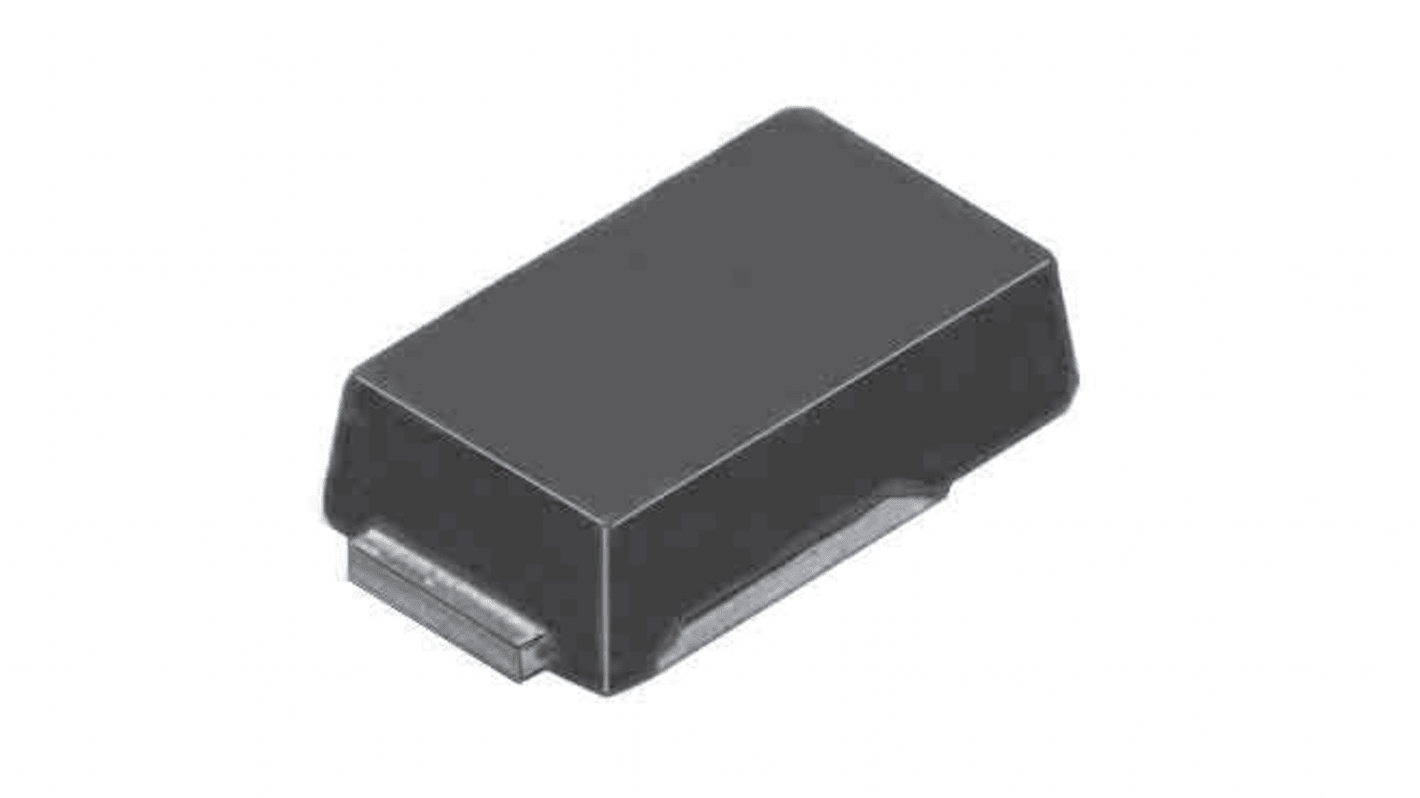

Vishay 200 V 2 A Rectifier & Schottky Diode Schottky 2-Pin SMP

View this category
Bulk discount available

Subtotal (1 reel of 3000 units)*

£297.00

(exc. VAT)

£357.00

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 12,000 unit(s), ready to ship
Units
Per unit
Per Reel*
3000 - 3000£0.099£297.00
6000 +£0.096£288.00

*price indicative

RS Stock No.:
233-1035
Mfr. Part No.:
V2P22LHM3/H
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

Rectifier & Schottky Diode

Mount Type

Surface

Package Type

SMP

Maximum Continuous Forward Current If

2A

Peak Reverse Repetitive Voltage Vrrm

200V

Diode Configuration

Single

Series

V2

Rectifier Type

Schottky

Pin Count

2

Peak Reverse Current Ir

2mA

Minimum Operating Temperature

-40°C

Maximum Forward Voltage Vf

0.91V

Peak Non-Repetitive Forward Surge Current Ifsm

50A

Maximum Operating Temperature

175°C

Height

1.15mm

Width

2.18 mm

Length

4mm

Standards/Approvals

No

Automotive Standard

AEC-Q101

The Vishay surface mount TMBS(trench MOS barrier Schottky) rectifier comes in SMP (DO-220AA) low profile package. It has 200V maximum repetitive peak reverse voltage and 2A maximum DC forward current. Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C. Typically it is used in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.

Low power losses, high efficiency

Low forward voltage drop
