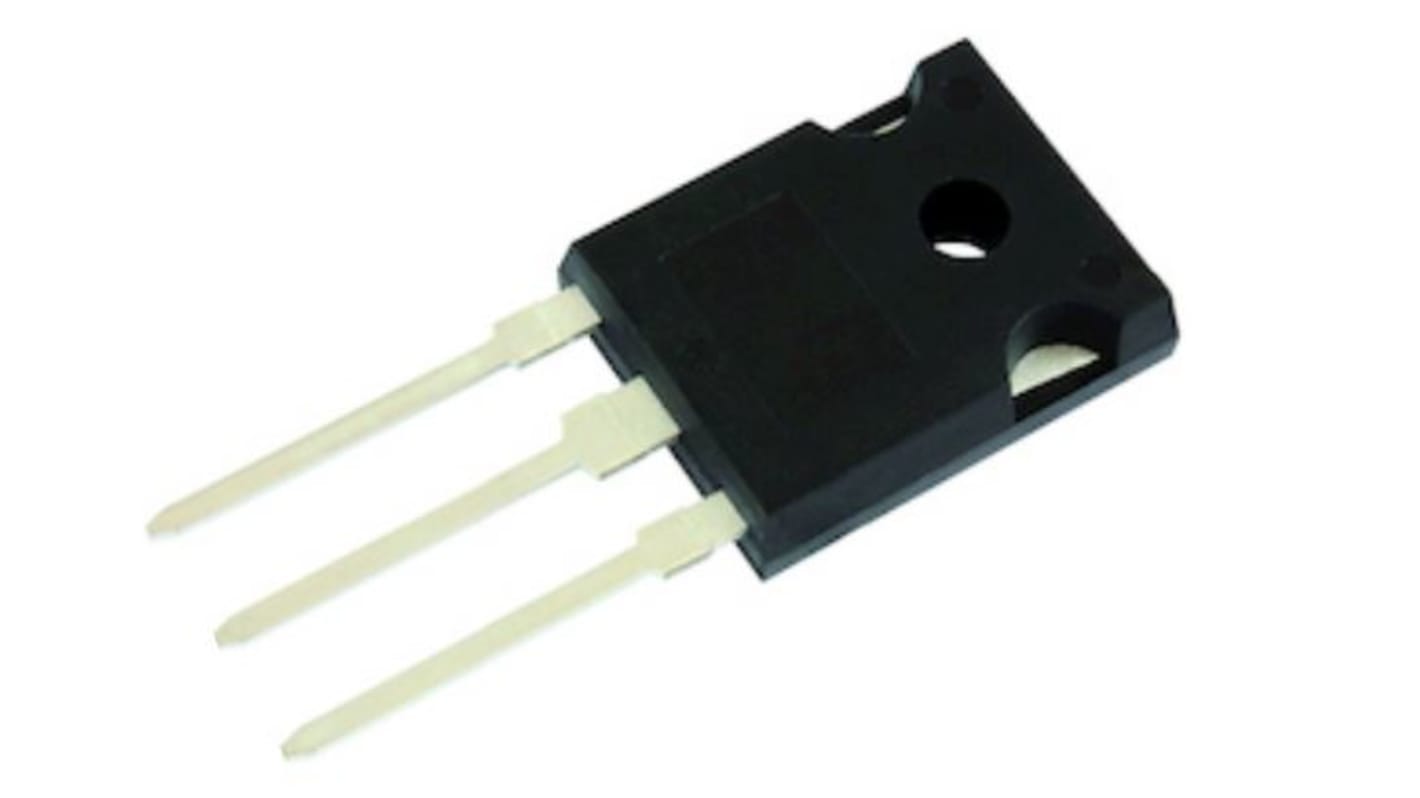

Vishay 100 V 60 A Rectifier & Schottky Diode Schottky 3-Pin TO-247
- RS Stock No.:
- 231-5453
- Mfr. Part No.:
- VX60M100PW-M3/P
- Brand:
- Vishay
Subtotal (1 tube of 500 units)*
£890.00
(exc. VAT)
£1,070.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 500 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 500 + | £1.78 | £890.00 |
*price indicative
- RS Stock No.:
- 231-5453
- Mfr. Part No.:
- VX60M100PW-M3/P
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Rectifier & Schottky Diode | |
| Mount Type | Through Hole | |
| Package Type | TO-247 | |
| Maximum Continuous Forward Current If | 60A | |
| Peak Reverse Repetitive Voltage Vrrm | 100V | |
| Diode Configuration | 2x Common Cathode Pair | |
| Rectifier Type | Schottky | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -40°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 350A | |
| Maximum Forward Voltage Vf | 0.83V | |
| Peak Reverse Current Ir | 20mA | |
| Maximum Operating Temperature | 175°C | |
| Length | 15.87mm | |
| Height | 5.31mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Rectifier & Schottky Diode | ||
Mount Type Through Hole | ||
Package Type TO-247 | ||
Maximum Continuous Forward Current If 60A | ||
Peak Reverse Repetitive Voltage Vrrm 100V | ||
Diode Configuration 2x Common Cathode Pair | ||
Rectifier Type Schottky | ||
Pin Count 3 | ||
Minimum Operating Temperature -40°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 350A | ||
Maximum Forward Voltage Vf 0.83V | ||
Peak Reverse Current Ir 20mA | ||
Maximum Operating Temperature 175°C | ||
Length 15.87mm | ||
Height 5.31mm | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||
The Vishay dual high voltage TMBS (Trench MOS Barrier Schottky) rectifier used in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection in commercial, industrial, and automotive applic
Trench MOS Schottky technology
Low forward voltage drop, low power losses
High efficiency operation
