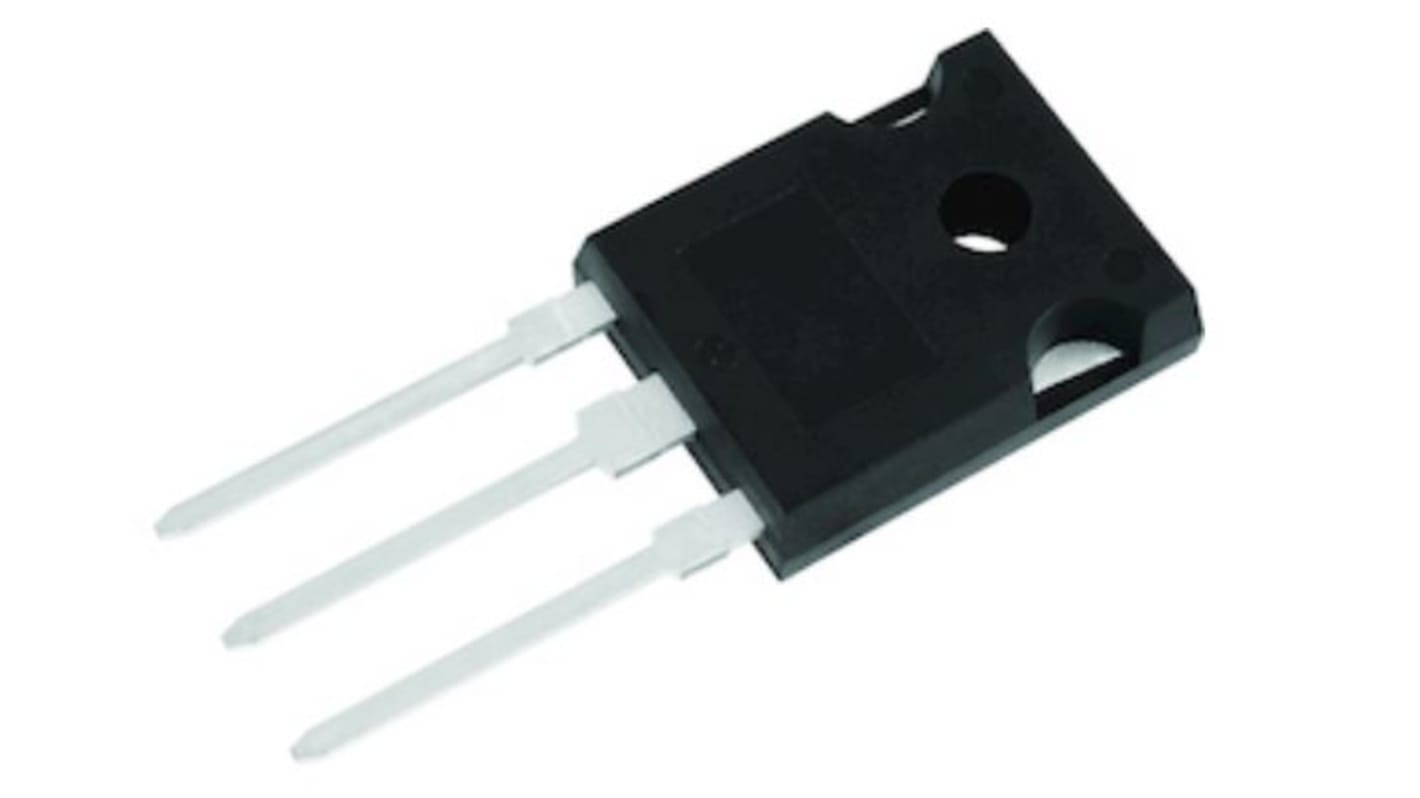

Vishay 300 V 60 A Rectifier & Schottky Diode General Purpose 3-Pin TO-247AD 3L VS-60APH03L-N3
- RS Stock No.:
- 231-5435
- Mfr. Part No.:
- VS-60APH03L-N3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 5 units)*
£9.28
(exc. VAT)
£11.135
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 110 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.856 | £9.28 |
| 50 - 120 | £1.668 | £8.34 |
| 125 - 245 | £1.354 | £6.77 |
| 250 - 495 | £1.114 | £5.57 |
| 500 + | £1.086 | £5.43 |
*price indicative
- RS Stock No.:
- 231-5435
- Mfr. Part No.:
- VS-60APH03L-N3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Rectifier & Schottky Diode | |
| Mount Type | Through Hole | |
| Package Type | TO-247AD 3L | |
| Maximum Continuous Forward Current If | 60A | |
| Peak Reverse Repetitive Voltage Vrrm | 300V | |
| Diode Configuration | Single | |
| Series | VSX | |
| Rectifier Type | General Purpose | |
| Pin Count | 3 | |
| Maximum Forward Voltage Vf | 0.85V | |
| Minimum Operating Temperature | -55°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 450A | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS | |
| Height | 41.03mm | |
| Length | 15.87mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Rectifier & Schottky Diode | ||
Mount Type Through Hole | ||
Package Type TO-247AD 3L | ||
Maximum Continuous Forward Current If 60A | ||
Peak Reverse Repetitive Voltage Vrrm 300V | ||
Diode Configuration Single | ||
Series VSX | ||
Rectifier Type General Purpose | ||
Pin Count 3 | ||
Maximum Forward Voltage Vf 0.85V | ||
Minimum Operating Temperature -55°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 450A | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS | ||
Height 41.03mm | ||
Length 15.87mm | ||
Automotive Standard No | ||
The Vishay hyperfast rectifier designed with optimized performance of forward voltage drop and ultrafast recovery time. These devices are intended for PDP and use in the output rectification stage for SMPS, UPS, DC/DC converters as well as freewheeling di
Low leakage current
Soft recovery device
