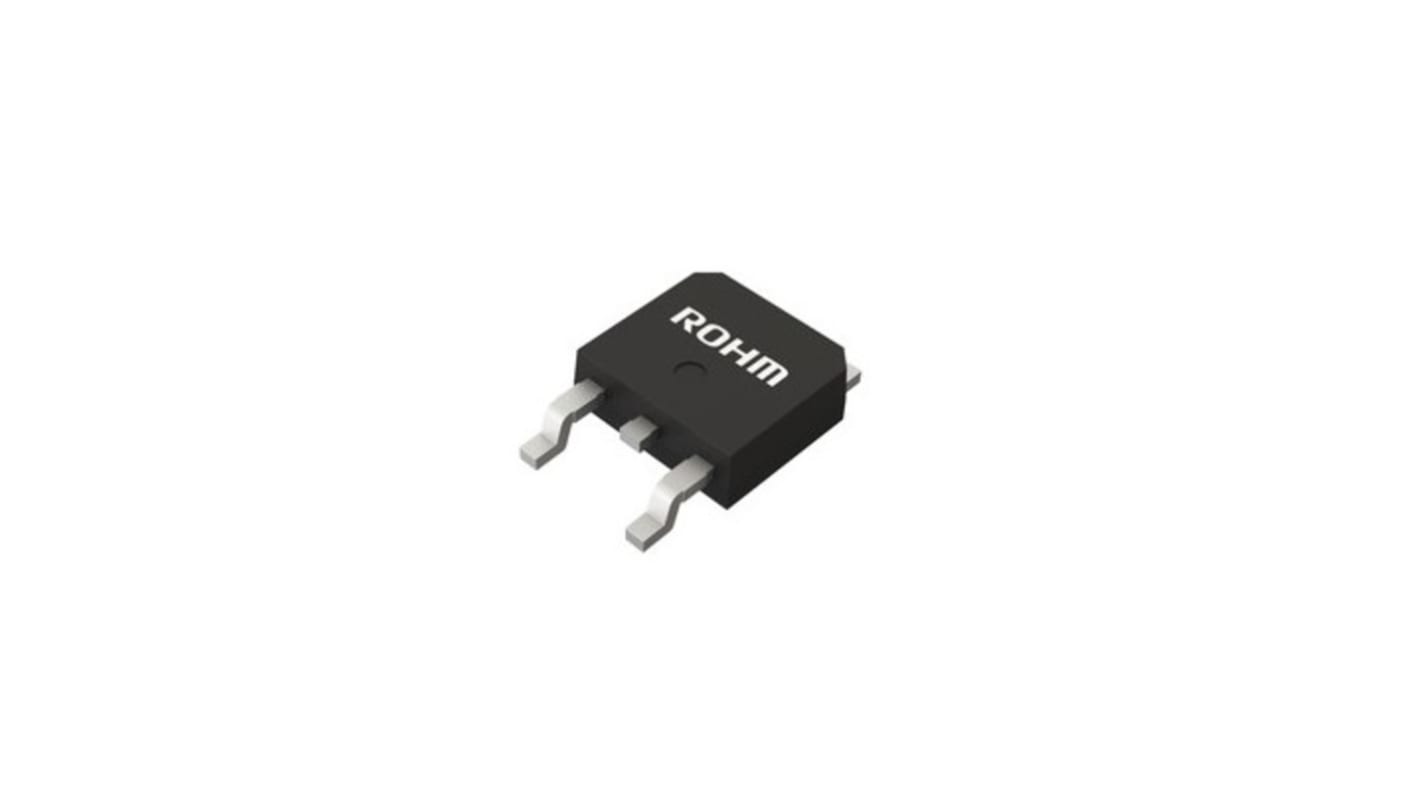

ROHM 40V 20A, Dual Diode, 3-Pin DPAK RBR20BGE40ATL
- RS Stock No.:
- 223-6271
- Mfr. Part No.:
- RBR20BGE40ATL
- Brand:
- ROHM
Bulk discount available
Subtotal (1 pack of 5 units)*
£9.68
(exc. VAT)
£11.615
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 90 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.936 | £9.68 |
| 50 - 95 | £1.646 | £8.23 |
| 100 - 245 | £1.28 | £6.40 |
| 250 - 995 | £1.258 | £6.29 |
| 1000 + | £0.918 | £4.59 |
*price indicative
- RS Stock No.:
- 223-6271
- Mfr. Part No.:
- RBR20BGE40ATL
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Mounting Type | Surface Mount | |
| Package Type | TO-252 | |
| Maximum Continuous Forward Current | 20A | |
| Peak Reverse Repetitive Voltage | 40V | |
| Diode Configuration | 2x Common Cathode Pair | |
| Pin Count | 3 | |
| Number of Elements per Chip | 2 | |
Select all | ||
|---|---|---|
Brand ROHM | ||
Mounting Type Surface Mount | ||
Package Type TO-252 | ||
Maximum Continuous Forward Current 20A | ||
Peak Reverse Repetitive Voltage 40V | ||
Diode Configuration 2x Common Cathode Pair | ||
Pin Count 3 | ||
Number of Elements per Chip 2 | ||
The ROHM Schottky barrier diode is mainly used for switching power supply. Rated reverse voltage is 40 V.
High reliability
Power mold type
Cathode common dual type
Low VF
Power mold type
Cathode common dual type
Low VF
