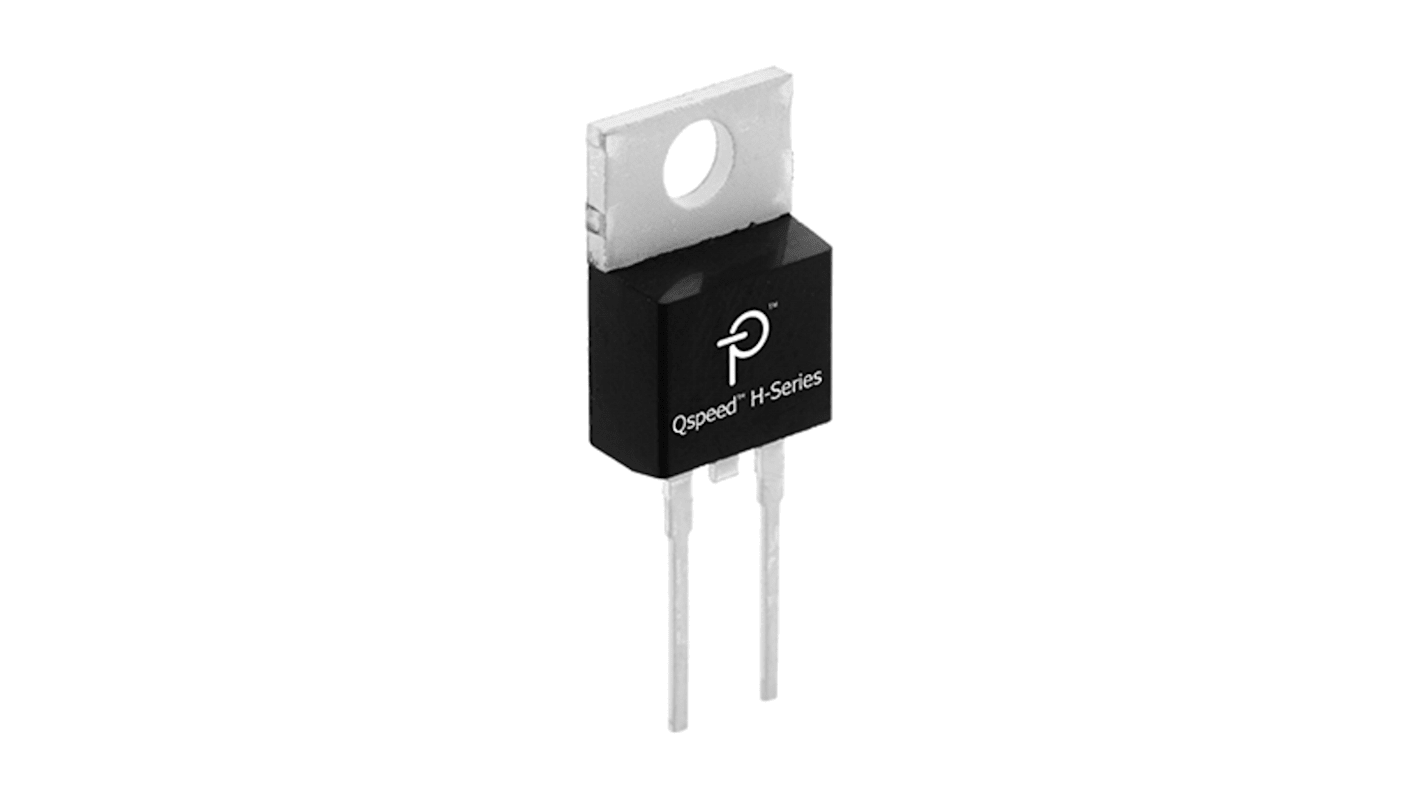

Power Integrations 600 V 12 A Diode Silicon 3-Pin TO-220AC
- RS Stock No.:
- 222-6800
- Mfr. Part No.:
- QH12TZ600
- Brand:
- Power Integrations
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 50 units)*
£89.60
(exc. VAT)
£107.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 50 | £1.792 | £89.60 |
| 100 - 950 | £1.473 | £73.65 |
| 1000 + | £1.432 | £71.60 |
*price indicative
- RS Stock No.:
- 222-6800
- Mfr. Part No.:
- QH12TZ600
- Brand:
- Power Integrations
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Power Integrations | |
| Mount Type | Surface | |
| Product Type | Diode | |
| Package Type | TO-220AC | |
| Maximum Continuous Forward Current If | 12A | |
| Peak Reverse Repetitive Voltage Vrrm | 600V | |
| Series | QH12TZ600 | |
| Diode Configuration | Single | |
| Rectifier Type | Silicon | |
| Pin Count | 3 | |
| Peak Reverse Current Ir | 250μA | |
| Maximum Forward Voltage Vf | 3.1V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 350A | |
| Peak Reverse Recovery Time trr | 11.6ns | |
| Standards/Approvals | RoHS | |
| Length | 10.67mm | |
| Height | 4.7mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Power Integrations | ||
Mount Type Surface | ||
Product Type Diode | ||
Package Type TO-220AC | ||
Maximum Continuous Forward Current If 12A | ||
Peak Reverse Repetitive Voltage Vrrm 600V | ||
Series QH12TZ600 | ||
Diode Configuration Single | ||
Rectifier Type Silicon | ||
Pin Count 3 | ||
Peak Reverse Current Ir 250μA | ||
Maximum Forward Voltage Vf 3.1V | ||
Peak Non-Repetitive Forward Surge Current Ifsm 350A | ||
Peak Reverse Recovery Time trr 11.6ns | ||
Standards/Approvals RoHS | ||
Length 10.67mm | ||
Height 4.7mm | ||
Automotive Standard No | ||
The Power Integrations QH12TZ600 Schottky Diode is the most preferred component involving applications like Motor driver circuits, DC-AC Converters and PFC. The diode is extremely efficient and provides the lowest Irrm and Qrr for diodes inn the range of 600V silicon diode range.
Enables fast switching
Has high efficiency
Demonstrates soft recovery
