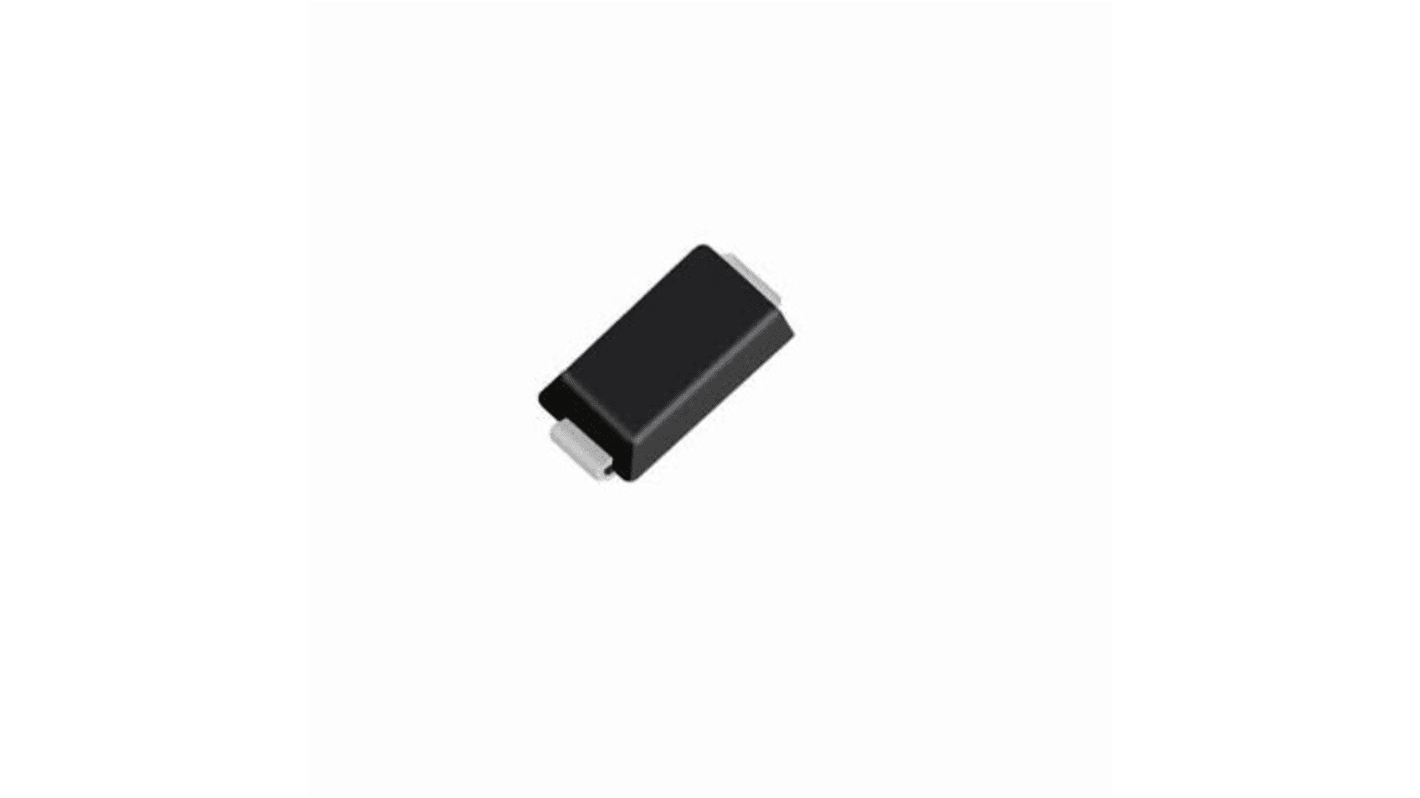

DiodesZetex 1 kV 1 A Diode Fast Recovery 2-Pin DO-219AA FRS1MEQ-7
- RS Stock No.:
- 222-2904
- Mfr. Part No.:
- FRS1MEQ-7
- Brand:
- DiodesZetex
Bulk discount available
Subtotal (1 pack of 25 units)*
£4.55
(exc. VAT)
£5.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 5,525 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.182 | £4.55 |
| 50 - 75 | £0.179 | £4.48 |
| 100 - 225 | £0.092 | £2.30 |
| 250 - 975 | £0.091 | £2.28 |
| 1000 + | £0.08 | £2.00 |
*price indicative
- RS Stock No.:
- 222-2904
- Mfr. Part No.:
- FRS1MEQ-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | DO-219AA | |
| Maximum Continuous Forward Current If | 1A | |
| Peak Reverse Repetitive Voltage Vrrm | 1kV | |
| Series | FRS1MEQ | |
| Diode Configuration | Single | |
| Rectifier Type | Fast Recovery | |
| Pin Count | 2 | |
| Maximum Forward Voltage Vf | 1.3V | |
| Peak Reverse Current Ir | 200μA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Recovery Time trr | 500ns | |
| Maximum Operating Temperature | 105°C | |
| Length | 3.9mm | |
| Width | 2 mm | |
| Height | 1.2mm | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type DO-219AA | ||
Maximum Continuous Forward Current If 1A | ||
Peak Reverse Repetitive Voltage Vrrm 1kV | ||
Series FRS1MEQ | ||
Diode Configuration Single | ||
Rectifier Type Fast Recovery | ||
Pin Count 2 | ||
Maximum Forward Voltage Vf 1.3V | ||
Peak Reverse Current Ir 200μA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 30A | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Recovery Time trr 500ns | ||
Maximum Operating Temperature 105°C | ||
Length 3.9mm | ||
Width 2 mm | ||
Height 1.2mm | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q101 | ||
The DiodesZetex 1.0 A surface mount fast recovery rectifier is suited as a boost diode in power-factor correction circuitry. This device is for use in secondary rectification and freewheeling for ultrafast switching speed AC-AC and DC-DC converters in high temperature conditions for consumer applications.
Low profile, small form factor package
Low leakage current
Glass passivated die construction
Superfast recovery time for high-efficiency
