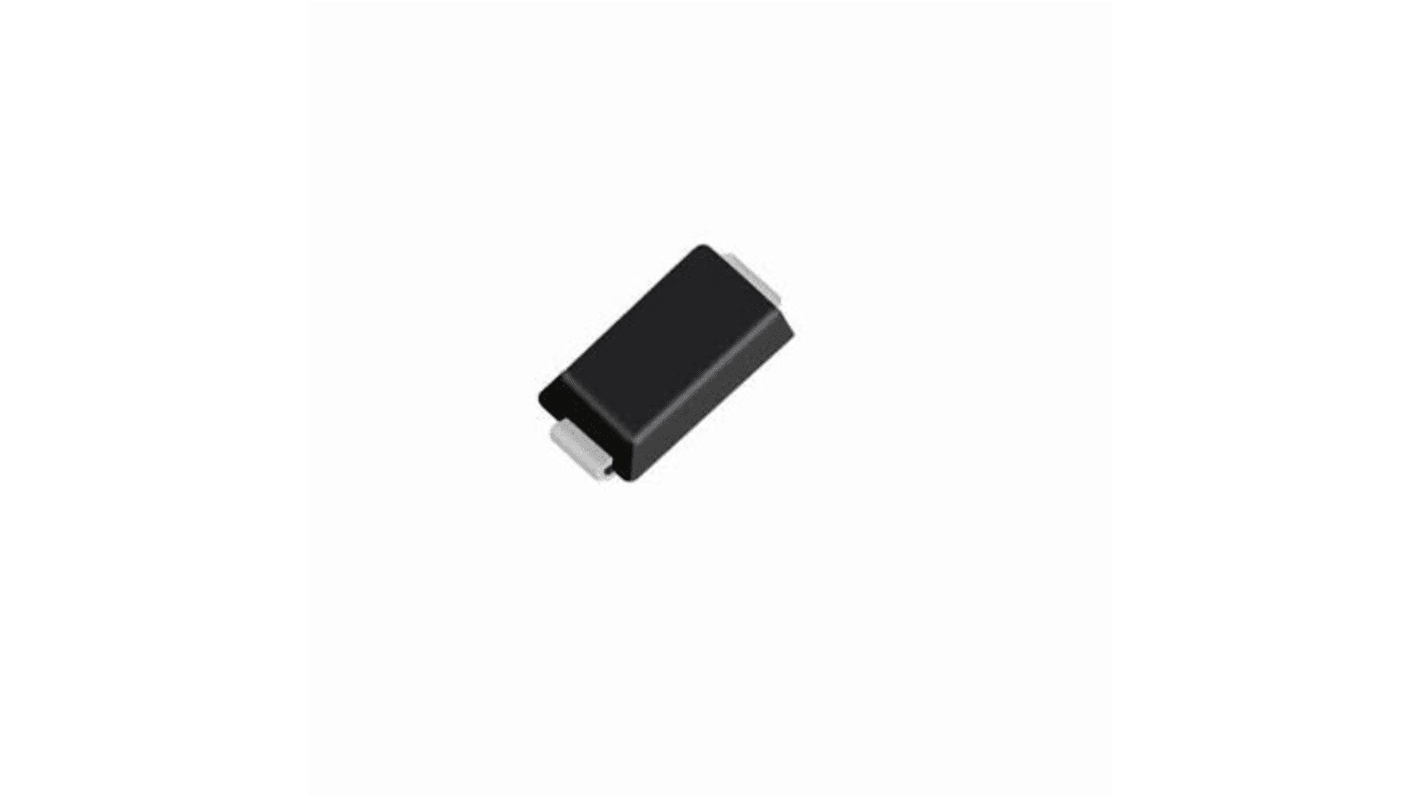

DiodesZetex 200 V 1 A Diode Fast Recovery 2-Pin DO-219AA FES1DE-7
- RS Stock No.:
- 222-2894
- Mfr. Part No.:
- FES1DE-7
- Brand:
- DiodesZetex
Bulk discount available
Subtotal (1 pack of 50 units)*
£6.95
(exc. VAT)
£8.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2,700 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 50 | £0.139 | £6.95 |
| 100 - 200 | £0.07 | £3.50 |
| 250 - 450 | £0.069 | £3.45 |
| 500 - 950 | £0.063 | £3.15 |
| 1000 + | £0.061 | £3.05 |
*price indicative
- RS Stock No.:
- 222-2894
- Mfr. Part No.:
- FES1DE-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | DO-219AA | |
| Maximum Continuous Forward Current If | 1A | |
| Peak Reverse Repetitive Voltage Vrrm | 200V | |
| Series | FES1DE | |
| Diode Configuration | Single | |
| Rectifier Type | Fast Recovery | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Current Ir | 200μA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A | |
| Maximum Forward Voltage Vf | 0.92V | |
| Maximum Operating Temperature | 105°C | |
| Peak Reverse Recovery Time trr | 25ns | |
| Height | 1.2mm | |
| Standards/Approvals | No | |
| Width | 1.2 mm | |
| Diameter | 3.9 mm | |
| Length | 2mm | |
| Automotive Standard | AEC-Q100, AEC-Q101, AEC-Q200 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type DO-219AA | ||
Maximum Continuous Forward Current If 1A | ||
Peak Reverse Repetitive Voltage Vrrm 200V | ||
Series FES1DE | ||
Diode Configuration Single | ||
Rectifier Type Fast Recovery | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Current Ir 200μA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 30A | ||
Maximum Forward Voltage Vf 0.92V | ||
Maximum Operating Temperature 105°C | ||
Peak Reverse Recovery Time trr 25ns | ||
Height 1.2mm | ||
Standards/Approvals No | ||
Width 1.2 mm | ||
Diameter 3.9 mm | ||
Length 2mm | ||
Automotive Standard AEC-Q100, AEC-Q101, AEC-Q200 | ||
The DiodesZetex surface mount ultra-fast rectifier is suited as a boost diode in power factor correction circuitry. This device is for use in secondary rectification and freewheeling for ultra-fast switching speed AC-AC and DC-DC converters in high-temperature conditions for consumer applications.
Low profile, small form factor package
Low leakage current
Glass passivated die construction
Superfast recovery time for high-efficiency
