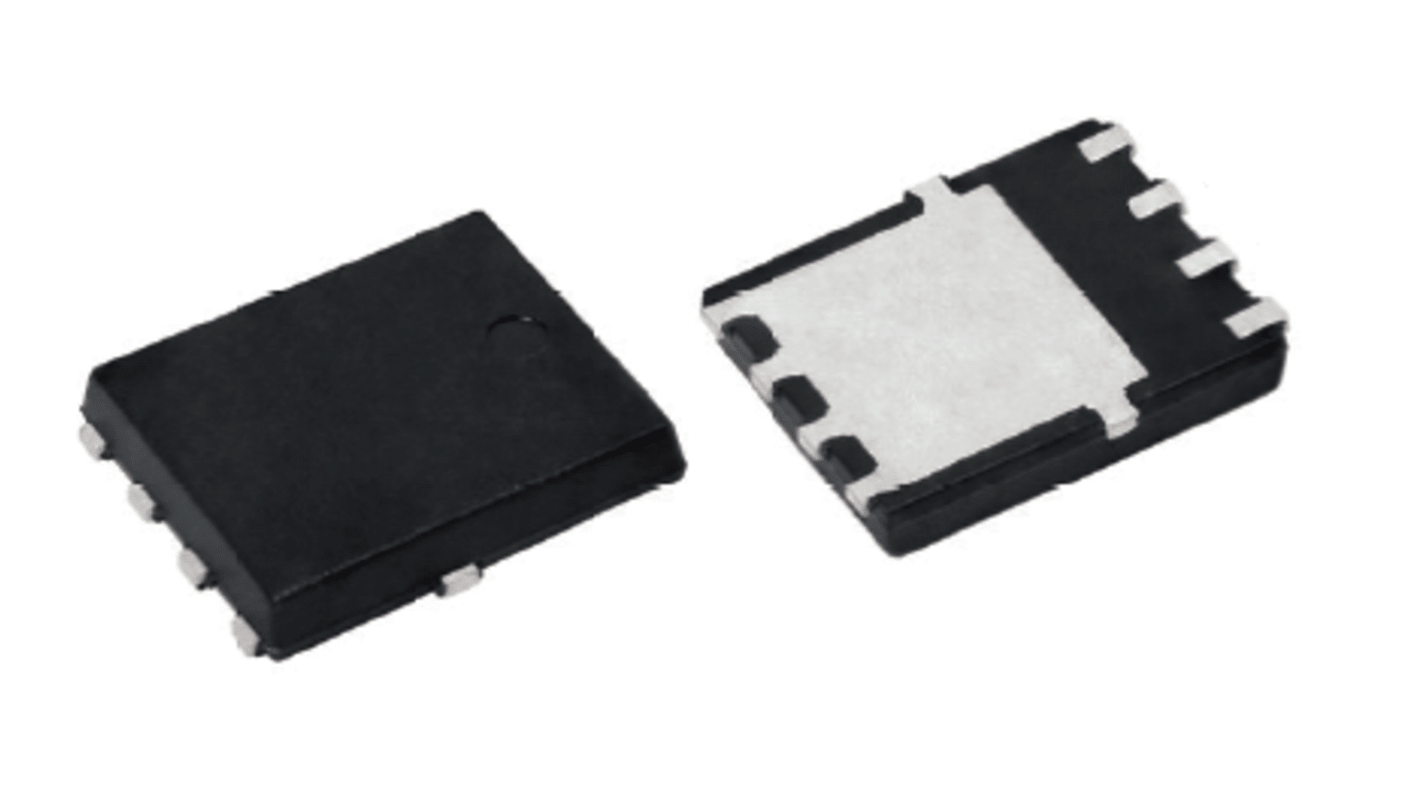

Vishay 100V 30A, Schottky Diode, 8-Pin FlatPAK 5 x 6 V30KM100-M3/H
- RS Stock No.:
- 218-6761
- Mfr. Part No.:
- V30KM100-M3/H
- Brand:
- Vishay
320 In stock - FREE next working day delivery available
Price Each (In a Pack of 10)
£1.03
(exc. VAT)
£1.24
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £1.03 | £10.30 |
| 100 - 240 | £0.927 | £9.27 |
| 250 - 490 | £0.835 | £8.35 |
| 500 - 990 | £0.793 | £7.93 |
| 1000 + | £0.711 | £7.11 |
*price indicative
- RS Stock No.:
- 218-6761
- Mfr. Part No.:
- V30KM100-M3/H
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
Product Details
The Vishay high current density surface mount TMBS® (Trench MOS Barrier Schottky) rectifier ultra low VF is 0.39 V at IF is 5 use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Trench MOS Schottky technology
Low forward voltage drop, low power losses
High efficiency operation
Meets MSL level 1, per J,STD,020
LF maximum peak of 260 °C
Low forward voltage drop, low power losses
High efficiency operation
Meets MSL level 1, per J,STD,020
LF maximum peak of 260 °C
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | FlatPAK 5 x 6 |
| Maximum Continuous Forward Current | 30A |
| Peak Reverse Repetitive Voltage | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky Rectifier |
| Diode Type | Schottky |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Diode Technology | Schottky Barrier |
