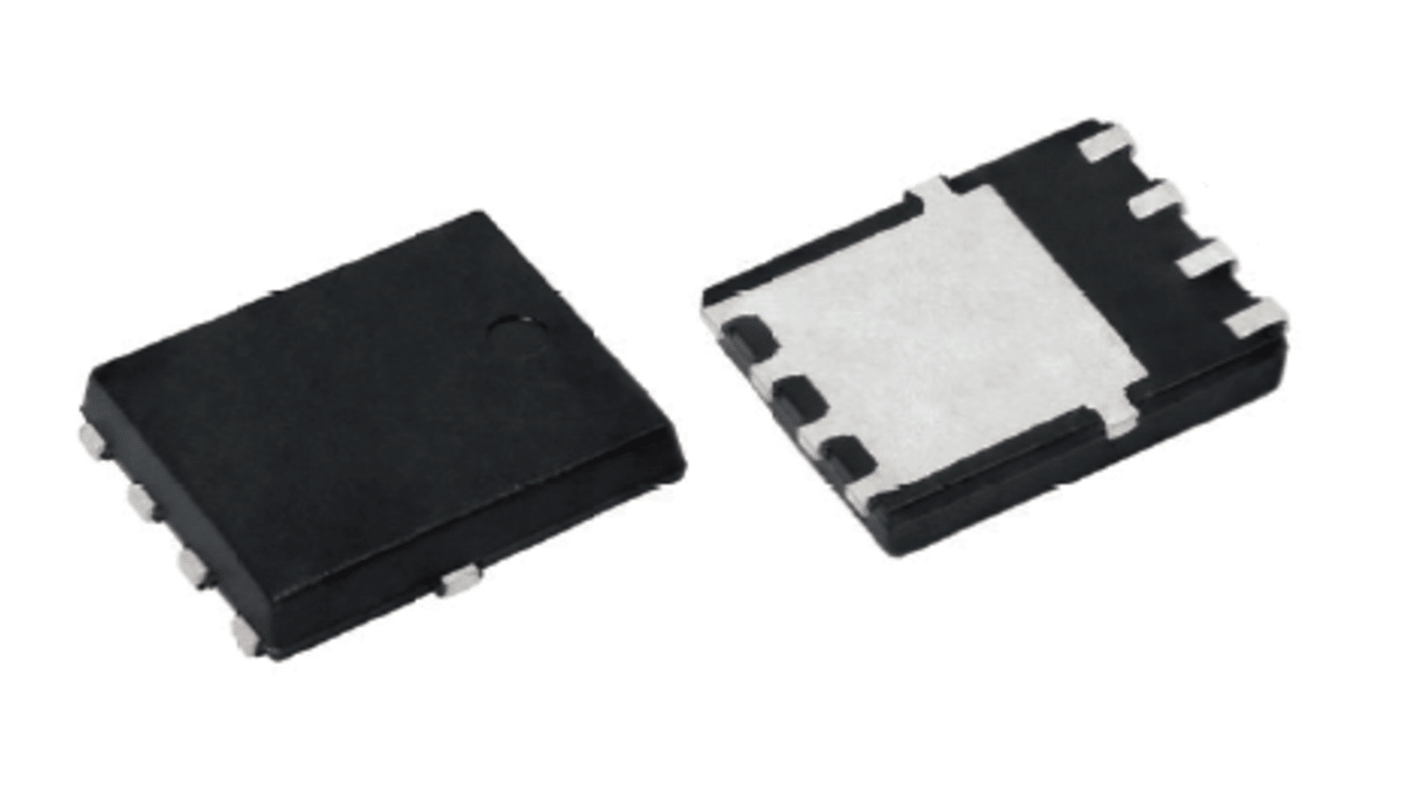

Vishay 100V 20A, Schottky Diode, 8-Pin FlatPAK 5 x 6 V20KM100-M3/H
- RS Stock No.:
- 218-6716
- Mfr. Part No.:
- V20KM100-M3/H
- Brand:
- Vishay
735 In stock - FREE next working day delivery available
Price Each (In a Pack of 15)
£0.554
(exc. VAT)
£0.665
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 15 - 135 | £0.554 | £8.31 |
| 150 - 360 | £0.499 | £7.485 |
| 375 - 735 | £0.471 | £7.065 |
| 750 - 1485 | £0.454 | £6.81 |
| 1500 + | £0.443 | £6.645 |
*price indicative
- RS Stock No.:
- 218-6716
- Mfr. Part No.:
- V20KM100-M3/H
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
Product Details
The Vishay high current density surface mount TMBS® (Trench MOS Barrier Schottky) rectifier ultra low VF is 0.42 V at IF is 5 use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Trench MOS Schottky technology
Low forward voltage drop, low power losses
High efficiency operation
Meets MSL level 1, per J,STD,020
LF maximum peak of 260 °C
Low forward voltage drop, low power losses
High efficiency operation
Meets MSL level 1, per J,STD,020
LF maximum peak of 260 °C
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | FlatPAK 5 x 6 |
| Maximum Continuous Forward Current | 20A |
| Peak Reverse Repetitive Voltage | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky Rectifier |
| Diode Type | Schottky |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Diode Technology | Schottky Barrier |
