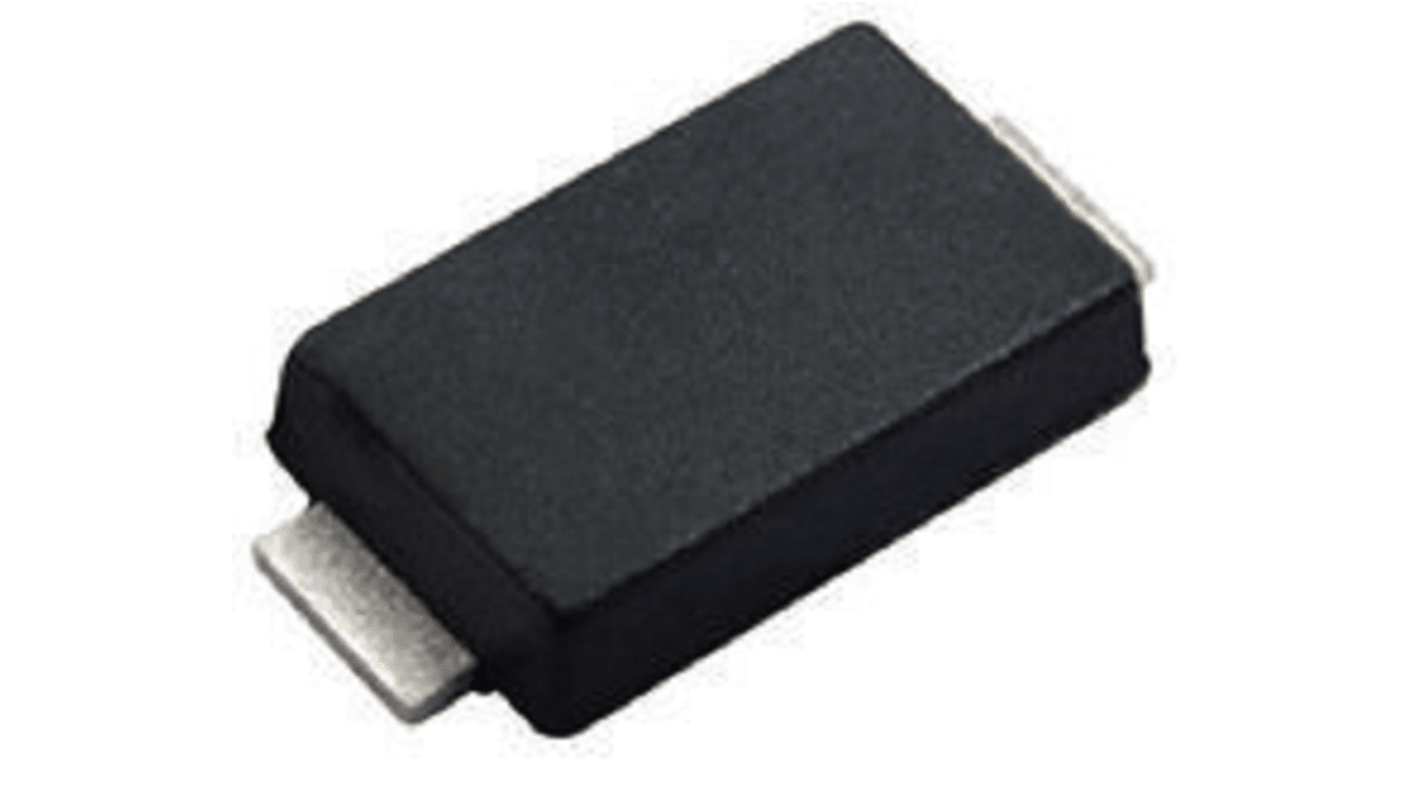

Vishay 600V 5A, Rectifier Diode, 2-Pin SMPA (DO-221BC) SE50PAJHM3/H
- RS Stock No.:
- 218-6669
- Mfr. Part No.:
- SE50PAJHM3/H
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 25 units)*
£8.90
(exc. VAT)
£10.675
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,625 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
25 - 225 | £0.356 | £8.90 |
250 - 600 | £0.338 | £8.45 |
625 - 1225 | £0.288 | £7.20 |
1250 - 2475 | £0.274 | £6.85 |
2500 + | £0.246 | £6.15 |
*price indicative
- RS Stock No.:
- 218-6669
- Mfr. Part No.:
- SE50PAJHM3/H
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vishay | |
Mounting Type | Surface Mount | |
Package Type | SMPA (DO-221BC) | |
Maximum Continuous Forward Current | 5A | |
Peak Reverse Repetitive Voltage | 600V | |
Diode Configuration | Single | |
Rectifier Type | General Purpose | |
Diode Type | Rectifier | |
Pin Count | 2 | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand Vishay | ||
Mounting Type Surface Mount | ||
Package Type SMPA (DO-221BC) | ||
Maximum Continuous Forward Current 5A | ||
Peak Reverse Repetitive Voltage 600V | ||
Diode Configuration Single | ||
Rectifier Type General Purpose | ||
Diode Type Rectifier | ||
Pin Count 2 | ||
Number of Elements per Chip 1 | ||
The Vishay surface, mount fast switching rectifiers .For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, and telecommunication. Matte tin plated leads, solder able per J,STD,002 and JESD
Very low profile , typical height of 0.95 mm
Ideal for automated placement
Oxide planar chip junction
Low forward voltage drop, low leakage current
ESD capability
Ideal for automated placement
Oxide planar chip junction
Low forward voltage drop, low leakage current
ESD capability
