- RS Stock No.:
- 216-8373
- Mfr. Part No.:
- IDDD12G65C6XTMA1
- Brand:
- Infineon
1700 In stock - FREE next working day delivery available
Price Each (On a Reel of 1700)
£2.00
(exc. VAT)
£2.40
(inc. VAT)
Units | Per unit | Per Reel* |
1700 + | £2.00 | £3,400.00 |
*price indicative |
- RS Stock No.:
- 216-8373
- Mfr. Part No.:
- IDDD12G65C6XTMA1
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details

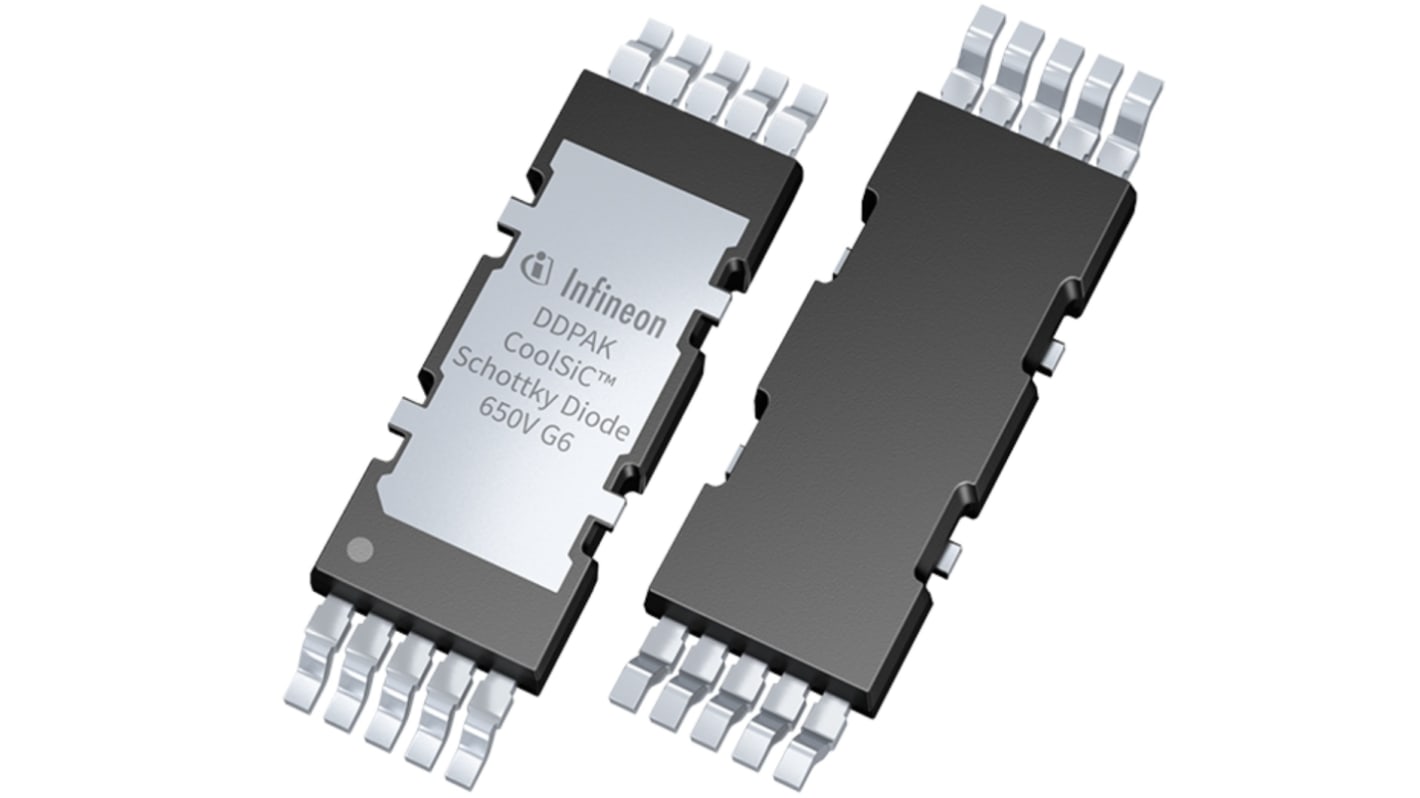

The Infineon IDD series schottky diode introduces double DPAK, the first top-side cooled surface mount device package addressing high power SMPS applications such as PC power, solar, server and telecom. It has current rating of 12 A. It provides a system solution for high current hard switching topologies such as PFC and a high-end efficiency solution for LLC topologies.
Enabling highest energy efficiency
Thermal decoupling of board and semiconductor allows to overcome thermal PCB limits
Reduced parasitic source inductance improves efficiency and ease-of-use
Enables higher power density solutions
Thermal decoupling of board and semiconductor allows to overcome thermal PCB limits
Reduced parasitic source inductance improves efficiency and ease-of-use
Enables higher power density solutions
Specifications
Attribute | Value |
---|---|
Mounting Type | Surface Mount |
Package Type | PG-HDSOP |
Maximum Continuous Forward Current | 12A |
Peak Reverse Repetitive Voltage | 650V |
Diode Configuration | Single |
Rectifier Type | Schottky Diode |
Diode Type | SiC Schottky |
Pin Count | 10 |
Number of Elements per Chip | 1 |
Diode Technology | SiC Schottky |
