Infineon 650 V 8 A Diode Schottky 10-Pin HDSOP IDDD08G65C6XTMA1

RS Stock No.:: 216-8369
Mfr. Part No.:: IDDD08G65C6XTMA1
Brand:: Infineon

Infineon 650 V 8 A Diode Schottky 10-Pin HDSOP IDDD08G65C6XTMA1

Subtotal (1 pack of 5 units)*

£9.76

(exc. VAT)

£11.71

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1,390 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 +	£1.952	£9.76

*price indicative

RS Stock No.:: 216-8369
Mfr. Part No.:: IDDD08G65C6XTMA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	Diode
	Mount Type	Surface
	Package Type	HDSOP
	Maximum Continuous Forward Current If	8A
	Peak Reverse Repetitive Voltage Vrrm	650V
	Diode Configuration	Single
	Series	6th Generation CoolSiC
	Rectifier Type	Schottky
	Pin Count	10
	Peak Reverse Current Ir	27μA
	Peak Non-Repetitive Forward Surge Current Ifsm	47A
	Minimum Operating Temperature	-55°C
	Maximum Forward Voltage Vf	1.25V
	Maximum Operating Temperature	175°C
	Standards/Approvals	JEDEC (J-STD20 and JESD22)
	Height	2.35mm
	Width	15.6 mm
	Length	6.6mm
	Automotive Standard	No

	Select all
	Brand Infineon
	Product Type Diode
	Mount Type Surface
	Package Type HDSOP
	Maximum Continuous Forward Current If 8A
	Peak Reverse Repetitive Voltage Vrrm 650V
	Diode Configuration Single
	Series 6th Generation CoolSiC
	Rectifier Type Schottky
	Pin Count 10
	Peak Reverse Current Ir 27μA
	Peak Non-Repetitive Forward Surge Current Ifsm 47A
	Minimum Operating Temperature -55°C
	Maximum Forward Voltage Vf 1.25V
	Maximum Operating Temperature 175°C
	Standards/Approvals JEDEC (J-STD20 and JESD22)
	Height 2.35mm
	Width 15.6 mm
	Length 6.6mm
	Automotive Standard No

Datasheet - IDDD08G65C6XTMA1

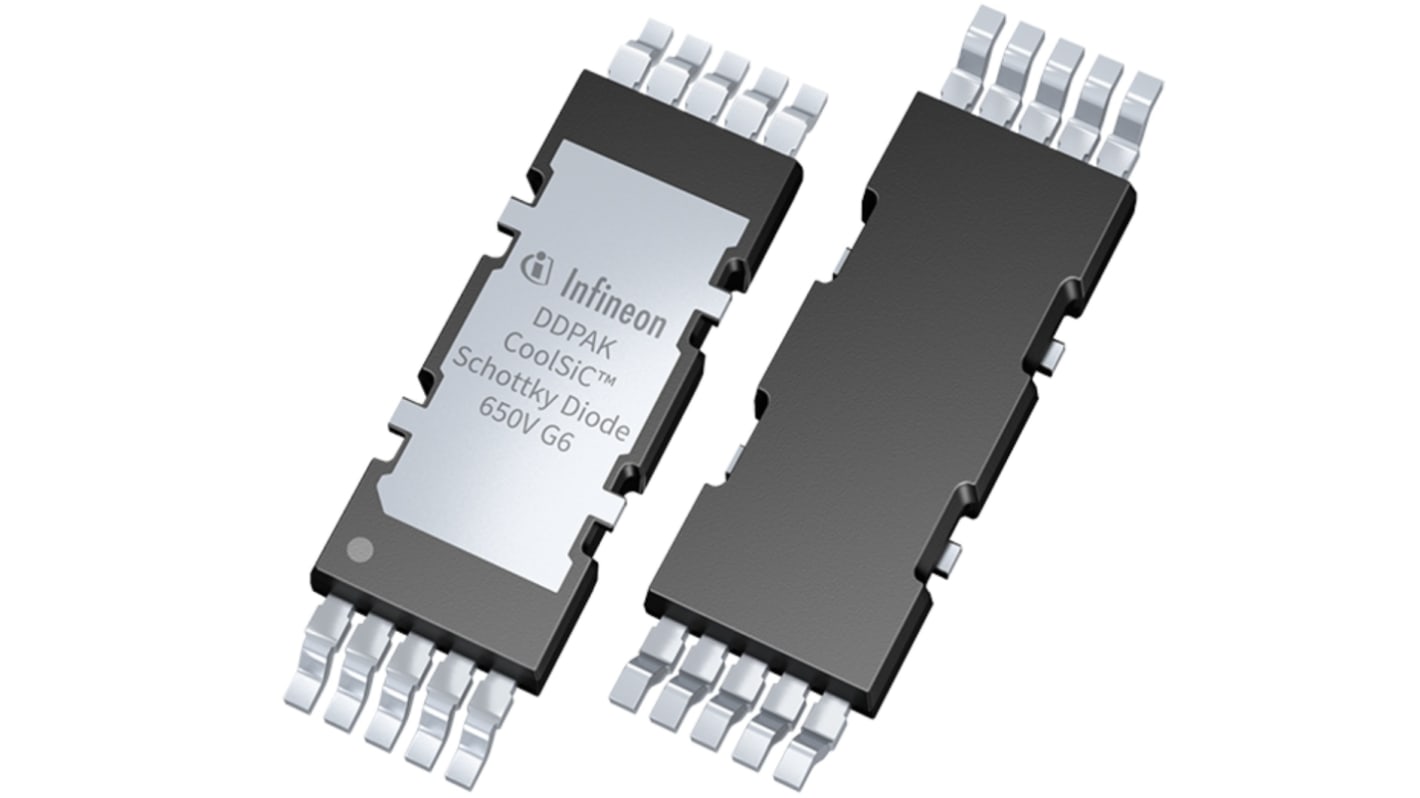

The Infineon IDD series schottky diode introduces double DPAK, the first top-side cooled surface mount device package addressing high power SMPS applications such as PC power, solar, server and telecom. It has current rating of 8 A. It provides a system solution for high current hard switching topologies such as PFC and a high-end efficiency solution for LLC topologies.

Enabling highest energy efficiency

Thermal decoupling of board and semiconductor allows to overcome thermal PCB limits

Reduced parasitic source inductance improves efficiency and ease-of-use

Enables higher power density solutions
