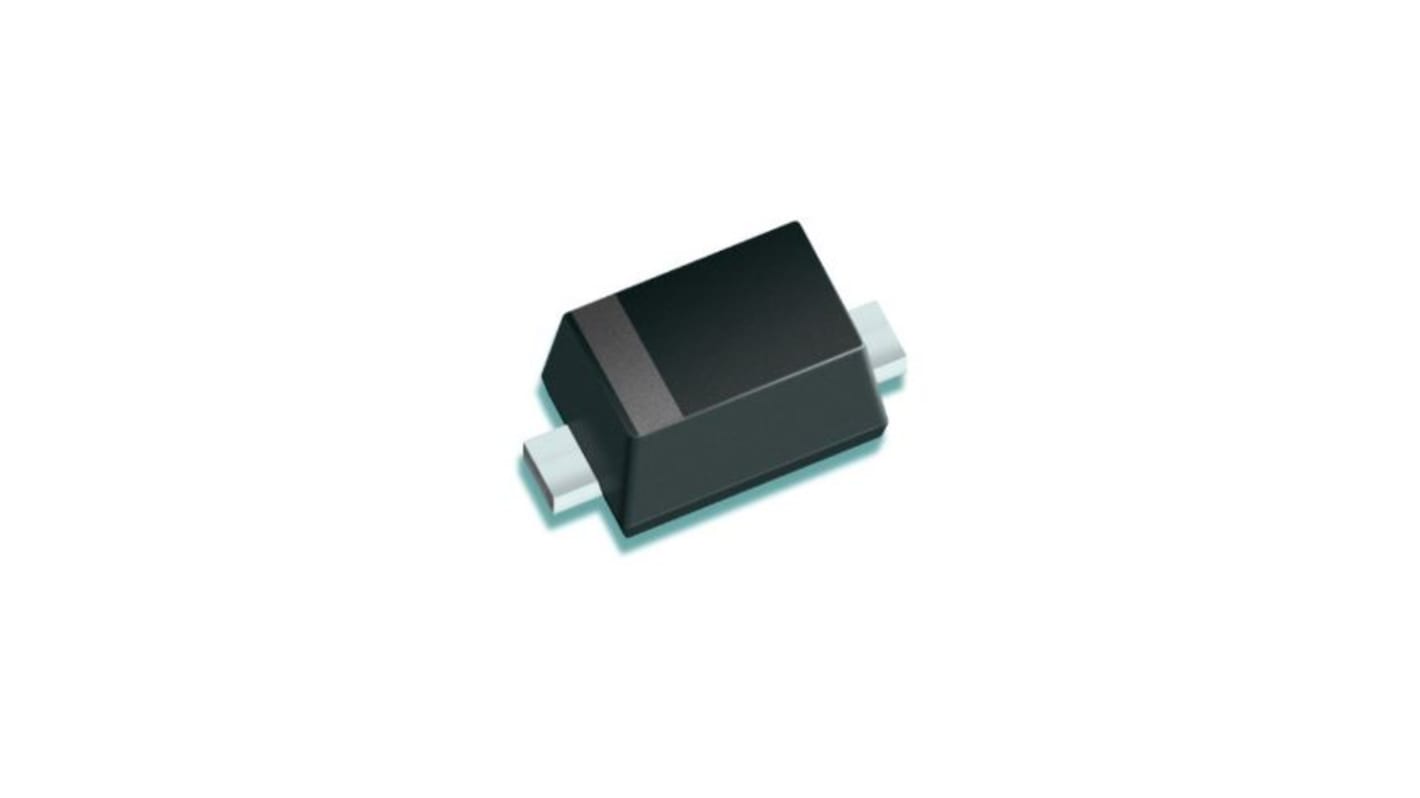

Infineon 45 V 750 mA Diode Schottky 2-Pin SC-79
- RS Stock No.:
- 216-8324
- Mfr. Part No.:
- BAS5202VH6327XTSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 reel of 3000 units)*
£168.00
(exc. VAT)
£201.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 3000 | £0.056 | £168.00 |
| 6000 - 12000 | £0.053 | £159.00 |
| 15000 + | £0.05 | £150.00 |
*price indicative
- RS Stock No.:
- 216-8324
- Mfr. Part No.:
- BAS5202VH6327XTSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Mount Type | Surface | |
| Product Type | Diode | |
| Package Type | SC-79 | |
| Maximum Continuous Forward Current If | 750mA | |
| Peak Reverse Repetitive Voltage Vrrm | 45V | |
| Series | BAS52 | |
| Diode Configuration | Single | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Peak Reverse Current Ir | 80μA | |
| Minimum Operating Temperature | -65°C | |
| Maximum Forward Voltage Vf | 600mV | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | AEC-Q101 | |
| Length | 1.2mm | |
| Width | 0.8 mm | |
| Height | 0.55mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Mount Type Surface | ||
Product Type Diode | ||
Package Type SC-79 | ||
Maximum Continuous Forward Current If 750mA | ||
Peak Reverse Repetitive Voltage Vrrm 45V | ||
Series BAS52 | ||
Diode Configuration Single | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Peak Reverse Current Ir 80μA | ||
Minimum Operating Temperature -65°C | ||
Maximum Forward Voltage Vf 600mV | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals AEC-Q101 | ||
Length 1.2mm | ||
Width 0.8 mm | ||
Height 0.55mm | ||
Automotive Standard AEC-Q101 | ||
The Infineon BAS series is medium current rectifier schottky diode with current rating of up to 750 mA. It is used in voltage clamping, high level detecting and mixing and circuit protection.
Storage temperature ranges from -65 to +150 °C
Pb-free
