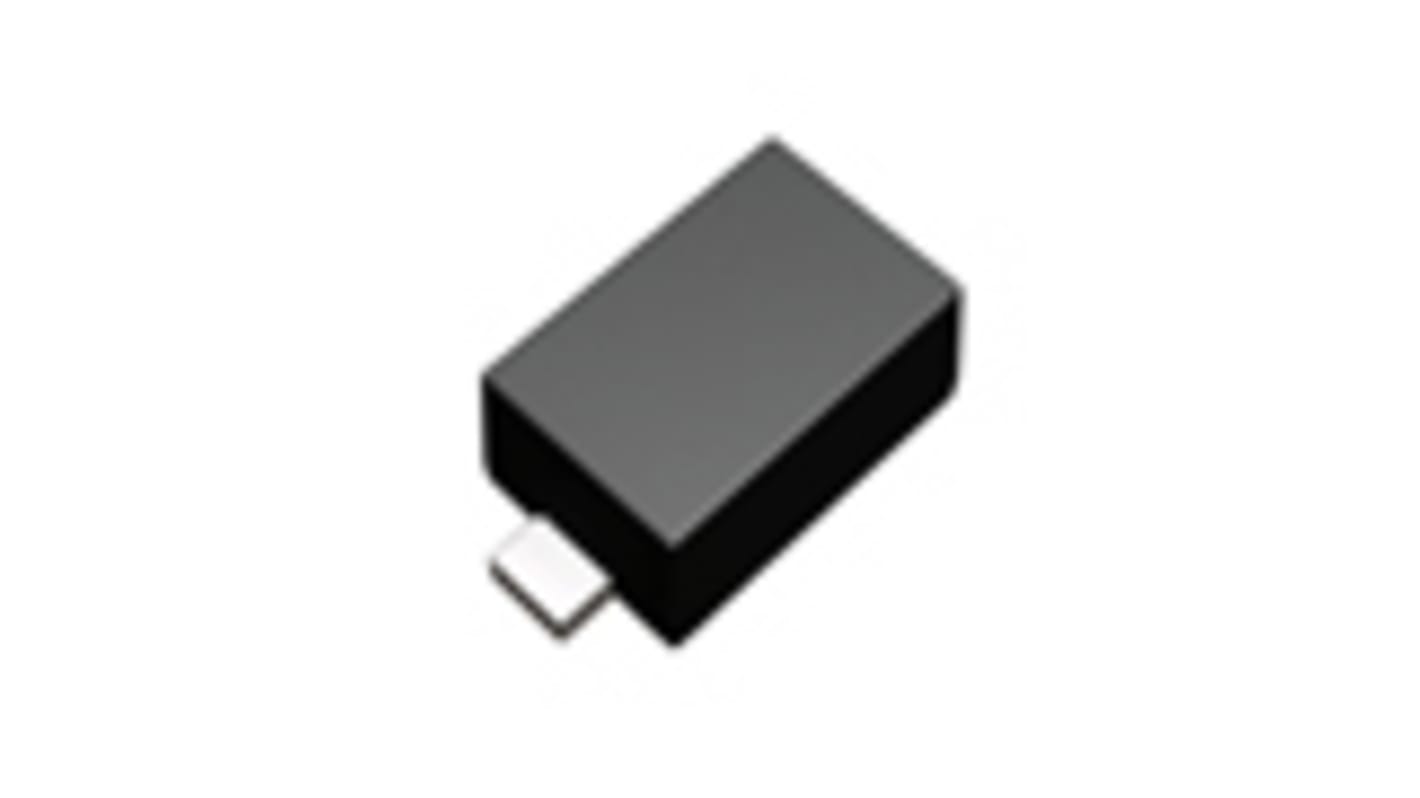

ROHM 30 V 100 mA Diode Schottky 2-Pin SC-79 RB511SM-30T2R
- RS Stock No.:
- 171-4777
- Mfr. Part No.:
- RB511SM-30T2R
- Brand:
- ROHM
Bulk discount available
Subtotal (1 pack of 250 units)*
£11.50
(exc. VAT)
£13.75
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 31 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 250 - 500 | £0.046 | £11.50 |
| 750 - 1250 | £0.044 | £11.00 |
| 1500 - 2750 | £0.043 | £10.75 |
| 3000 - 5750 | £0.042 | £10.50 |
| 6000 + | £0.041 | £10.25 |
*price indicative
- RS Stock No.:
- 171-4777
- Mfr. Part No.:
- RB511SM-30T2R
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Mount Type | Surface | |
| Product Type | Diode | |
| Package Type | SC-79 | |
| Maximum Continuous Forward Current If | 100mA | |
| Peak Reverse Repetitive Voltage Vrrm | 30V | |
| Diode Configuration | Single | |
| Series | RB511SM | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Peak Reverse Current Ir | 7μA | |
| Maximum Forward Voltage Vf | 370mV | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500mA | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Length | 1.25mm | |
| Height | 0.7mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Mount Type Surface | ||
Product Type Diode | ||
Package Type SC-79 | ||
Maximum Continuous Forward Current If 100mA | ||
Peak Reverse Repetitive Voltage Vrrm 30V | ||
Diode Configuration Single | ||
Series RB511SM | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Peak Reverse Current Ir 7μA | ||
Maximum Forward Voltage Vf 370mV | ||
Peak Non-Repetitive Forward Surge Current Ifsm 500mA | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Length 1.25mm | ||
Height 0.7mm | ||
Automotive Standard No | ||
RB511SM-30 is low VF high reliability Schottky Barrier Diode, suitable for small current rectification.
Ultra Small mold type (EMD2)
High reliability
Super low VF
