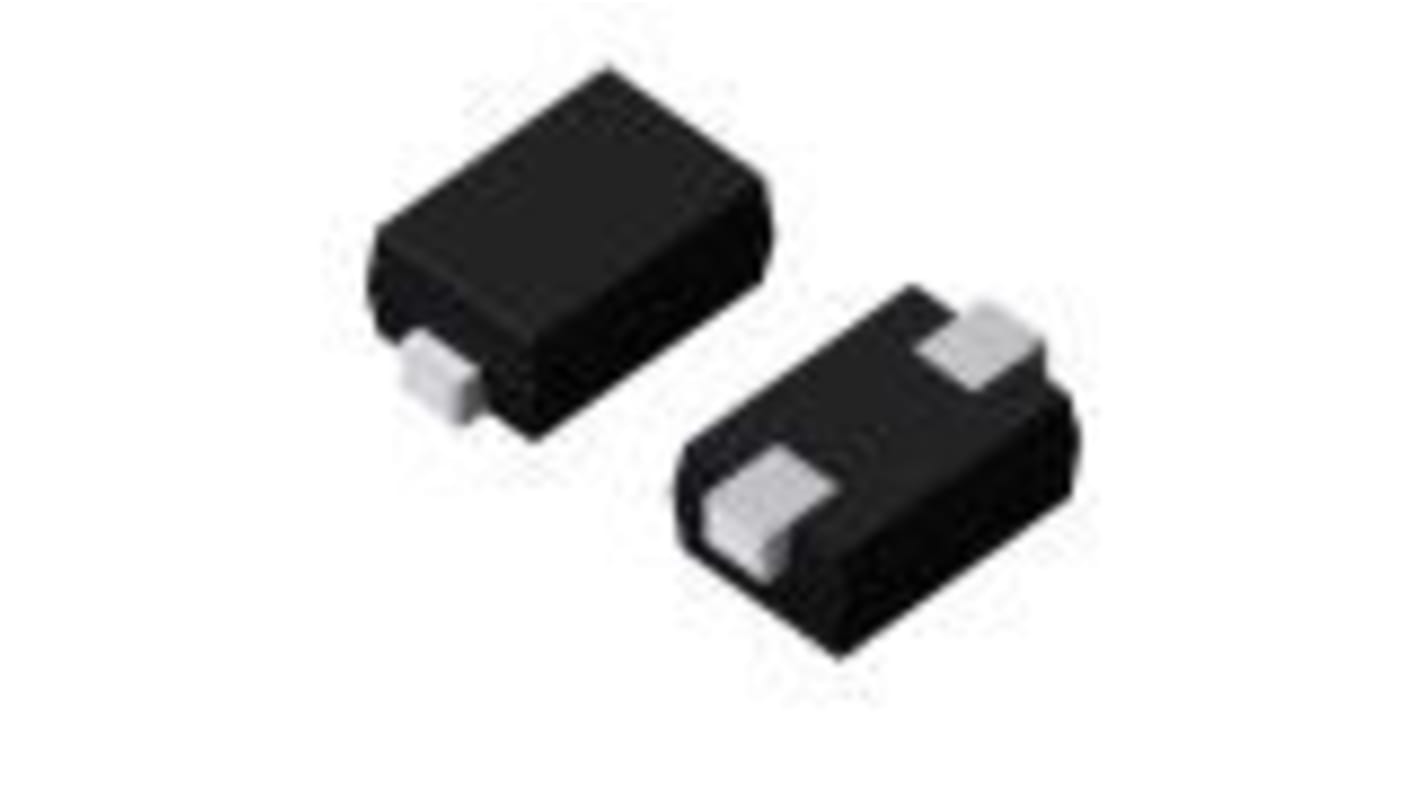

ROHM 30 V 10 mA Diode Schottky 2-Pin SOD-923 RB520CM-30T2R
- RS Stock No.:
- 177-9935
- Mfr. Part No.:
- RB520CM-30T2R
- Brand:
- ROHM
Subtotal (1 reel of 8000 units)*
£296.00
(exc. VAT)
£352.00
(inc. VAT)
Add 8000 units to get free delivery
Temporarily out of stock
- Shipping from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 8000 + | £0.037 | £296.00 |
*price indicative
- RS Stock No.:
- 177-9935
- Mfr. Part No.:
- RB520CM-30T2R
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Mount Type | Surface | |
| Product Type | Diode | |
| Package Type | SOD-923 | |
| Maximum Continuous Forward Current If | 10mA | |
| Peak Reverse Repetitive Voltage Vrrm | 30V | |
| Diode Configuration | Single | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Peak Reverse Current Ir | 0.5μA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 0.5A | |
| Maximum Forward Voltage Vf | 0.45V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Height | 0.4mm | |
| Length | 0.91mm | |
| Width | 0.65 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Mount Type Surface | ||
Product Type Diode | ||
Package Type SOD-923 | ||
Maximum Continuous Forward Current If 10mA | ||
Peak Reverse Repetitive Voltage Vrrm 30V | ||
Diode Configuration Single | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Peak Reverse Current Ir 0.5μA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 0.5A | ||
Maximum Forward Voltage Vf 0.45V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Height 0.4mm | ||
Length 0.91mm | ||
Width 0.65 mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
RB520CM-30 is low VF high reliability Schottky Barrier Diode, suitable for general rectification.
Ultra small mold type (VMN2M)
High reliability
Low VF
