Semikron Danfoss 1600 V 380 A Diode Rectifier Diode 3-Pin A-78 SKKD 380/16
- RS Stock No.:
- 210-4942
- Mfr. Part No.:
- SKKD 380/16
- Brand:
- Semikron Danfoss
Bulk discount available
Subtotal (1 unit)*
£353.25
(exc. VAT)
£423.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 3 unit(s) shipping from 31 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £353.25 |
| 5 - 9 | £310.86 |
| 10 - 24 | £297.44 |
| 25 - 49 | £290.02 |
| 50 + | £282.60 |
*price indicative
- RS Stock No.:
- 210-4942
- Mfr. Part No.:
- SKKD 380/16
- Brand:
- Semikron Danfoss
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Semikron Danfoss | |
| Product Type | Diode | |
| Mount Type | Panel | |
| Package Type | A-78 | |
| Maximum Continuous Forward Current If | 380A | |
| Peak Reverse Repetitive Voltage Vrrm | 1600V | |
| Series | SKKD 380 | |
| Diode Configuration | 2x Series Pair | |
| Rectifier Type | Rectifier Diode | |
| Pin Count | 3 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 11kA | |
| Maximum Forward Voltage Vf | 1.25V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Height | 52mm | |
| Width | 50 mm | |
| Length | 115mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Semikron Danfoss | ||
Product Type Diode | ||
Mount Type Panel | ||
Package Type A-78 | ||
Maximum Continuous Forward Current If 380A | ||
Peak Reverse Repetitive Voltage Vrrm 1600V | ||
Series SKKD 380 | ||
Diode Configuration 2x Series Pair | ||
Rectifier Type Rectifier Diode | ||
Pin Count 3 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 11kA | ||
Maximum Forward Voltage Vf 1.25V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Height 52mm | ||
Width 50 mm | ||
Length 115mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||

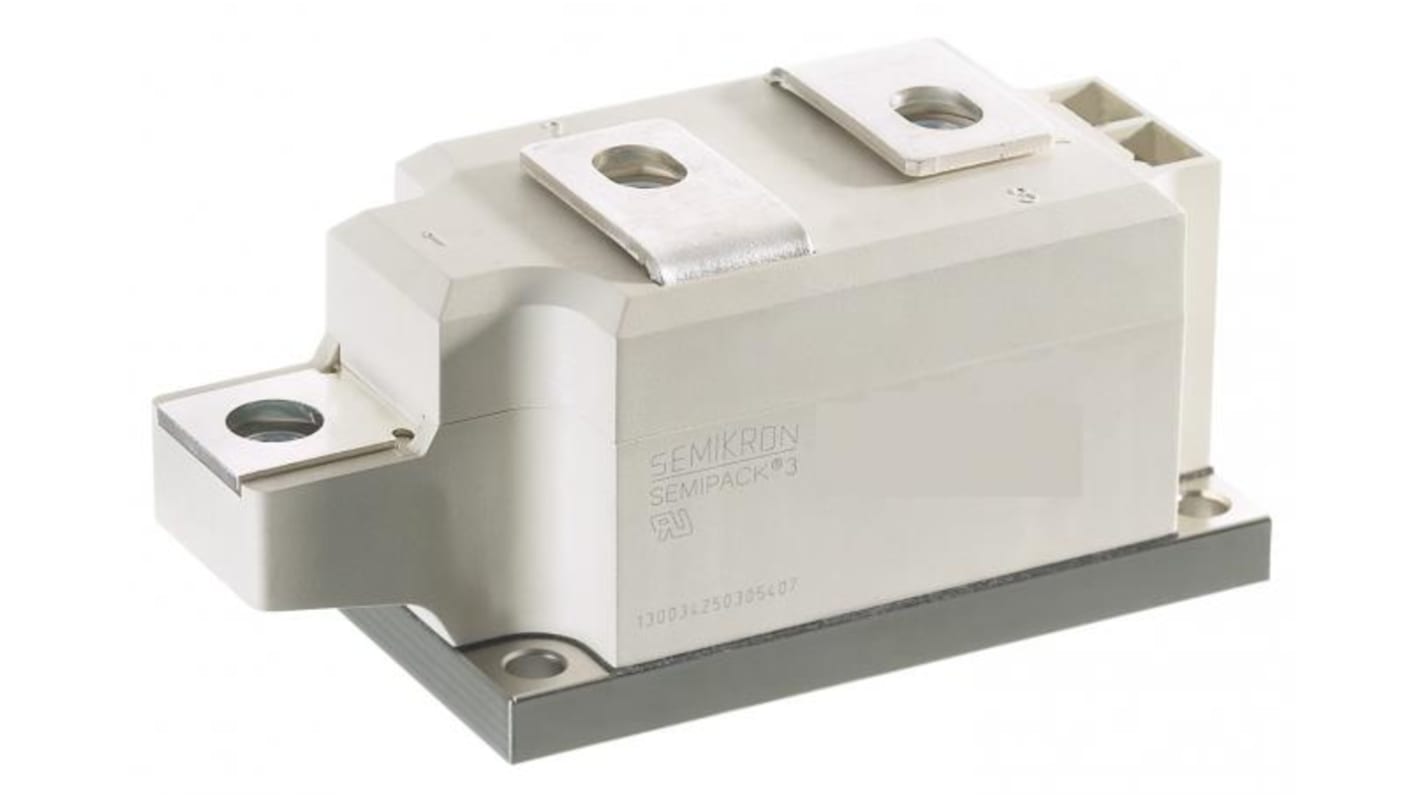

The Semikron Semipack 3 is a rectifier diode module which is suitable for applications like non-controllable rectifiers for AC/AC converters, Field Supply for DC motors and line rectifiers for transistorised AC motor controllers.
Aluminium nitride ceramic isolated metal base plate
Precious metal pressure contacts for high reliability
