Semikron Danfoss 1600V 380A, Diode, 2-Pin SEMIPACK3 SKKE 380/16
- RS Stock No.:
- 125-1112
- Mfr. Part No.:
- SKKE 380/16
- Brand:
- Semikron Danfoss
Subtotal (1 unit)*
£185.01
(exc. VAT)
£222.01
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £185.01 |
*price indicative
- RS Stock No.:
- 125-1112
- Mfr. Part No.:
- SKKE 380/16
- Brand:
- Semikron Danfoss
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Semikron Danfoss | |
Mounting Type | Panel Mount | |
Package Type | SEMIPACK3 | |
Maximum Continuous Forward Current | 380A | |
Peak Reverse Repetitive Voltage | 1600V | |
Diode Configuration | Single | |
Pin Count | 2 | |
Maximum Forward Voltage Drop | 1.25V | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand Semikron Danfoss | ||
Mounting Type Panel Mount | ||
Package Type SEMIPACK3 | ||
Maximum Continuous Forward Current 380A | ||
Peak Reverse Repetitive Voltage 1600V | ||
Diode Configuration Single | ||
Pin Count 2 | ||
Maximum Forward Voltage Drop 1.25V | ||
Number of Elements per Chip 1 | ||
- COO (Country of Origin):
- SK

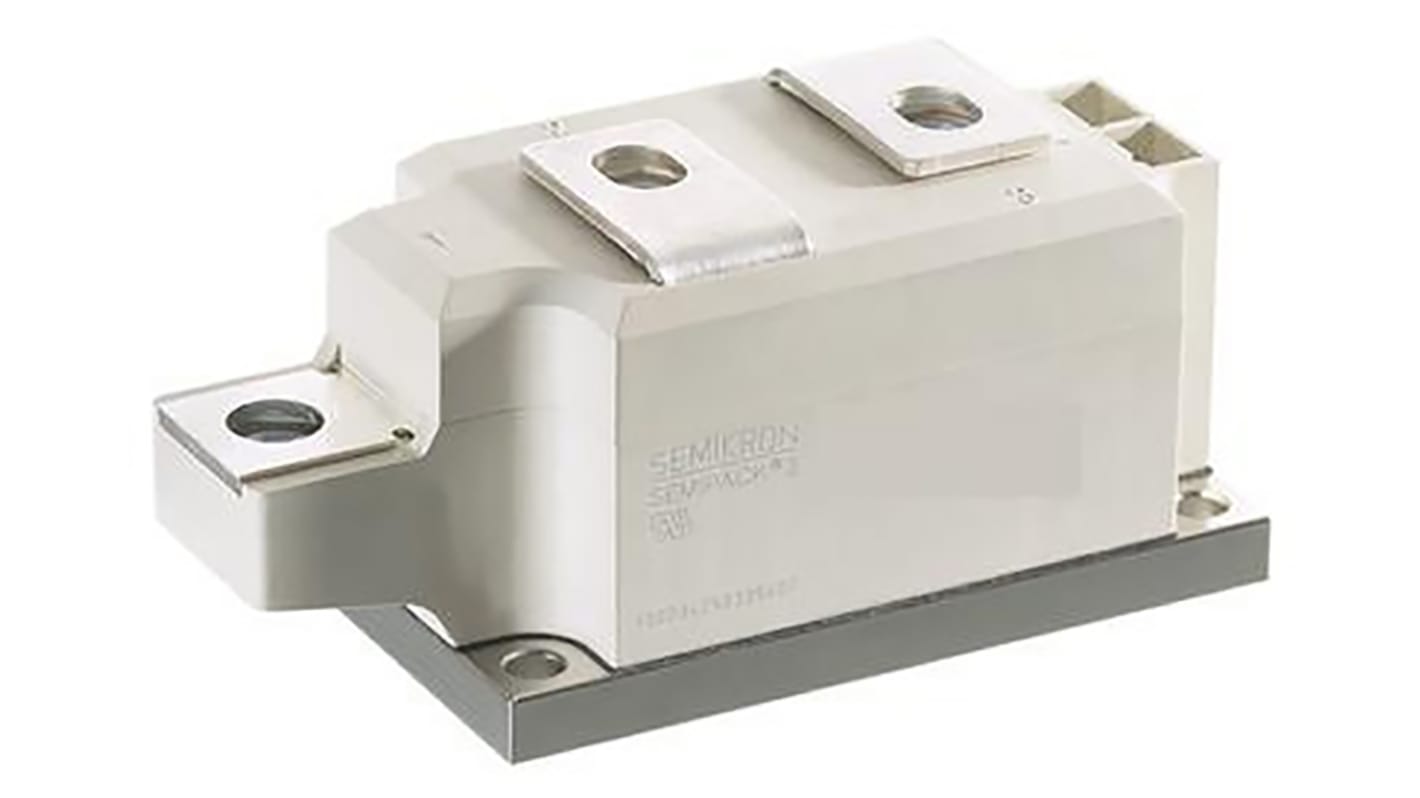

SEMIPACK® SKKE Series Single Diode Modules
Heavy-duty single diode modules in a variety of voltage and current ratings. These compact devices are suitable for high-current rectifier applications.
Excellent heat transfer through aluminium oxide ceramic isolated metal baseplate
Precious metal contacts for high reliability
Precious metal contacts for high reliability
Approvals
UL recognized E63532
