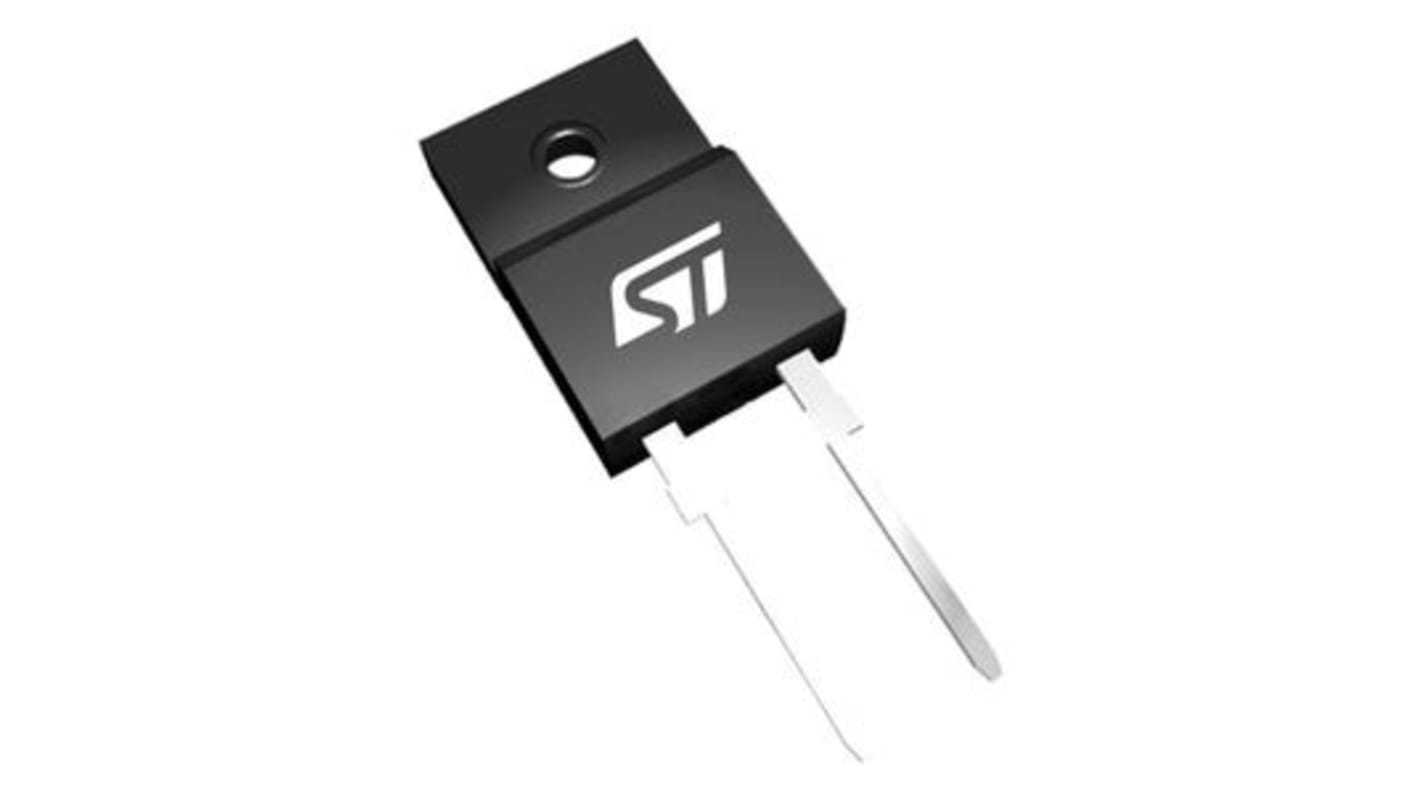

STMicroelectronics 600 V 25 A Diode Soft Recovery 2-Pin DPAK STTH25M06FP
- RS Stock No.:
- 206-6075
- Mfr. Part No.:
- STTH25M06FP
- Brand:
- STMicroelectronics
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 206-6075
- Mfr. Part No.:
- STTH25M06FP
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Diode | |
| Mount Type | Through Hole | |
| Package Type | TO-252 | |
| Maximum Continuous Forward Current If | 25A | |
| Peak Reverse Repetitive Voltage Vrrm | 600V | |
| Series | STTH25 | |
| Rectifier Type | Soft Recovery | |
| Pin Count | 2 | |
| Maximum Forward Voltage Vf | 2V | |
| Minimum Operating Temperature | -65°C | |
| Peak Reverse Current Ir | 70μA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 170A | |
| Maximum Operating Temperature | 175°C | |
| Peak Reverse Recovery Time trr | 25ns | |
| Height | 2.4mm | |
| Length | 6.73mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Diode | ||
Mount Type Through Hole | ||
Package Type TO-252 | ||
Maximum Continuous Forward Current If 25A | ||
Peak Reverse Repetitive Voltage Vrrm 600V | ||
Series STTH25 | ||
Rectifier Type Soft Recovery | ||
Pin Count 2 | ||
Maximum Forward Voltage Vf 2V | ||
Minimum Operating Temperature -65°C | ||
Peak Reverse Current Ir 70μA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 170A | ||
Maximum Operating Temperature 175°C | ||
Peak Reverse Recovery Time trr 25ns | ||
Height 2.4mm | ||
Length 6.73mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The STTH25M06 is an ultrafast recovery power rectifier especially suited for boost or LLC clamping circuits working at high switching frequencies in heavy duty applications such as air conditioning equipment or telecom power supplies. Designed with the latest ST’s ultrafast technology, this 600 V 25 A diode in DPAK and TO-220FPAC has a robust behaviour against electrostatic discharge and high overcurrent capability.
Ultrafast recovery, soft recovery
Low power losses at high switching frequency operations
Low leakage current
High junction temperature
High overcurrent capability
ECOPACK2 compliant
