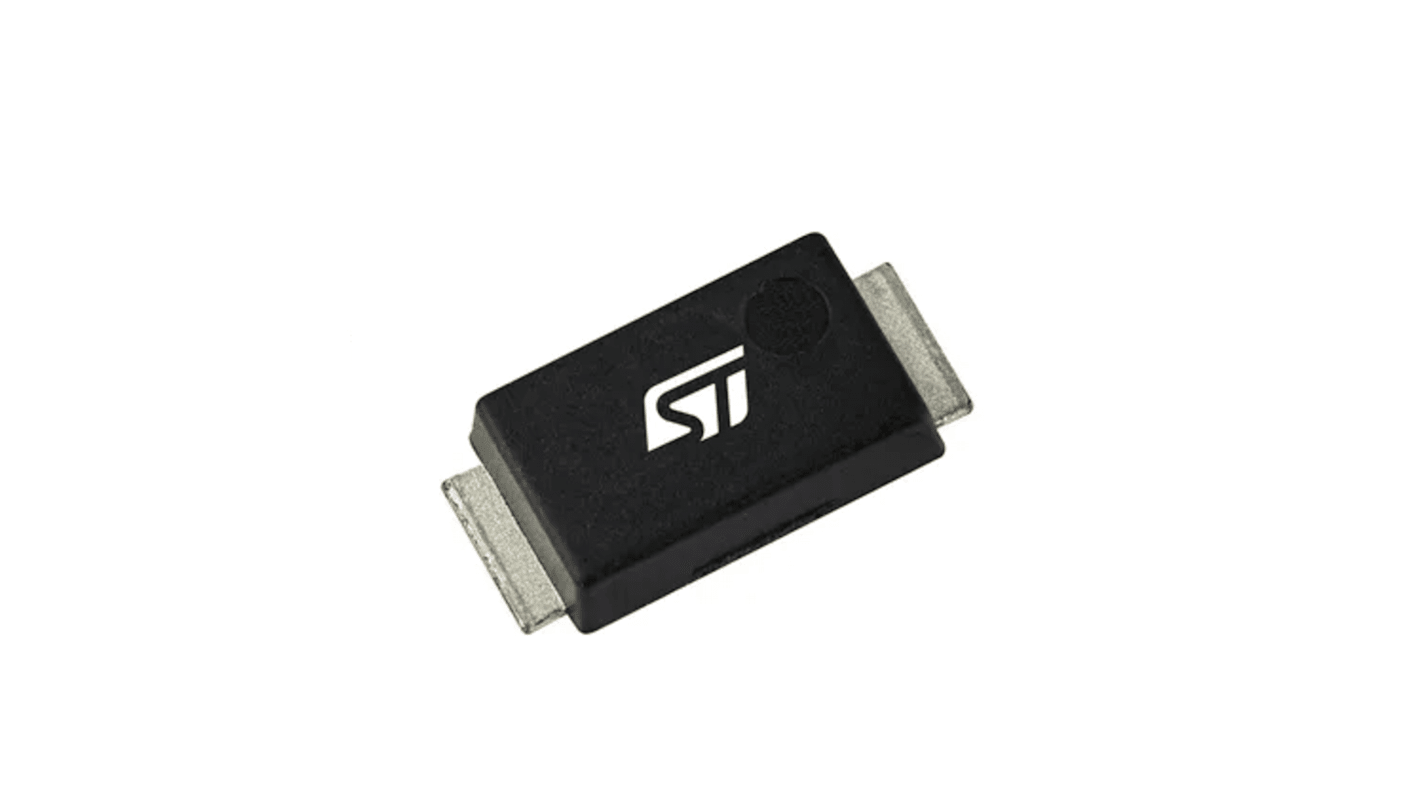

STMicroelectronics 100 V 130 A Diode High Voltage 2-Pin SOD-128 STPS5H100AF
- RS Stock No.:
- 189-4393
- Mfr. Part No.:
- STPS5H100AF
- Brand:
- STMicroelectronics
Subtotal (1 pack of 25 units)*
£8.05
(exc. VAT)
£9.65
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 7,275 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 + | £0.322 | £8.05 |
*price indicative
- RS Stock No.:
- 189-4393
- Mfr. Part No.:
- STPS5H100AF
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | SOD-128 | |
| Maximum Continuous Forward Current If | 130A | |
| Peak Reverse Repetitive Voltage Vrrm | 100V | |
| Diode Configuration | Single | |
| Rectifier Type | High Voltage | |
| Pin Count | 2 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 130A | |
| Minimum Operating Temperature | -65°C | |
| Maximum Forward Voltage Vf | 760mV | |
| Peak Reverse Current Ir | 16mA | |
| Maximum Operating Temperature | 175°C | |
| Height | 1.03mm | |
| Standards/Approvals | No | |
| Width | 2.5 mm | |
| Length | 3.9mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type SOD-128 | ||
Maximum Continuous Forward Current If 130A | ||
Peak Reverse Repetitive Voltage Vrrm 100V | ||
Diode Configuration Single | ||
Rectifier Type High Voltage | ||
Pin Count 2 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 130A | ||
Minimum Operating Temperature -65°C | ||
Maximum Forward Voltage Vf 760mV | ||
Peak Reverse Current Ir 16mA | ||
Maximum Operating Temperature 175°C | ||
Height 1.03mm | ||
Standards/Approvals No | ||
Width 2.5 mm | ||
Length 3.9mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
This high voltage Schottky barrier rectifier device is packaged in SOD128Flat and designed for high frequency miniature switched mode power supplies and for board DC to DC converters.
Negligible switching losses
High junction temperature capability
Low leakage current
Good trade-off between leakage current and forward voltage drop
