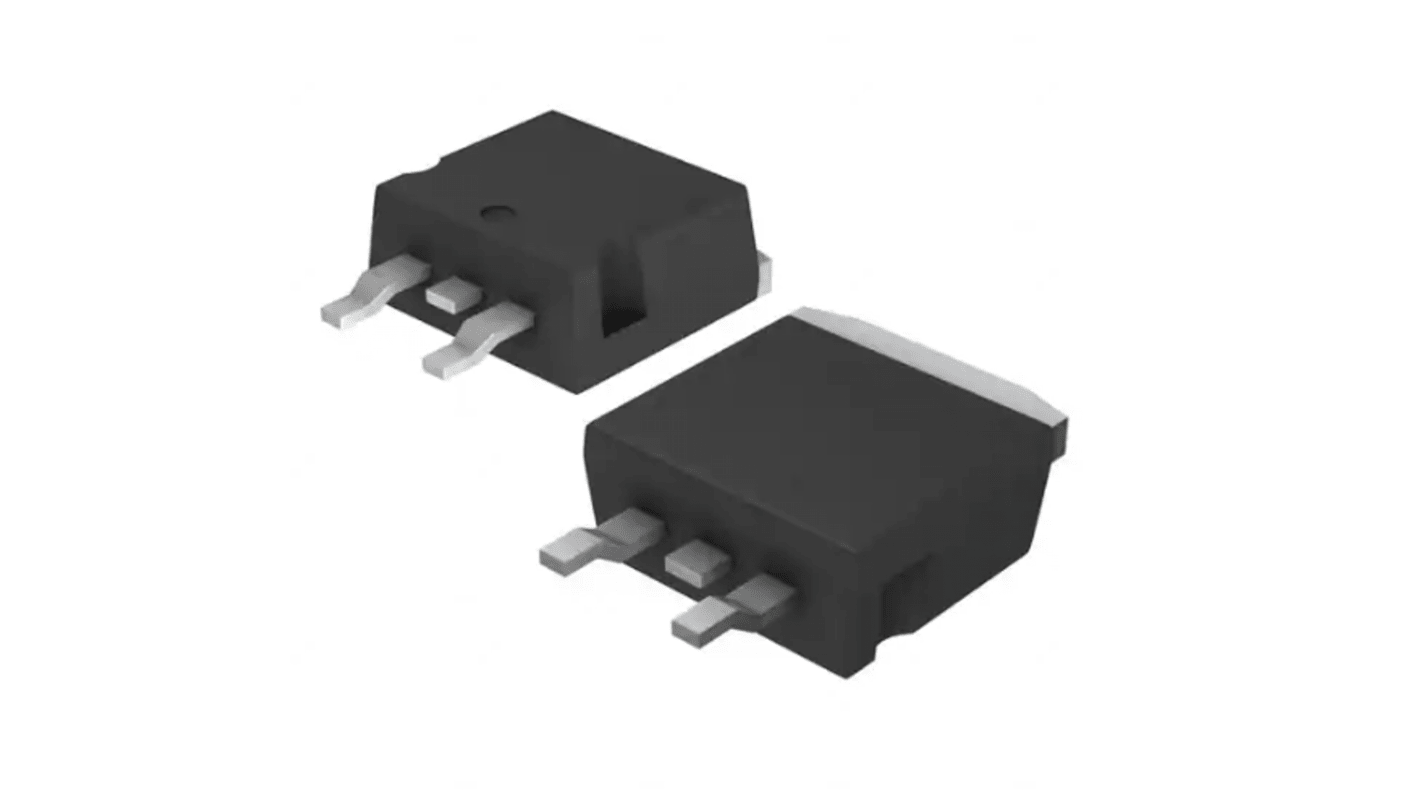

STMicroelectronics 400 V 30 A Diode Fast Recovery 3-Pin D2PAK STTH30R04G-TR
- RS Stock No.:
- 189-4335
- Mfr. Part No.:
- STTH30R04G-TR
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 pack of 5 units)*
£9.70
(exc. VAT)
£11.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 915 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £1.94 | £9.70 |
| 25 - 45 | £1.824 | £9.12 |
| 50 - 120 | £1.726 | £8.63 |
| 125 - 245 | £1.628 | £8.14 |
| 250 + | £1.55 | £7.75 |
*price indicative
- RS Stock No.:
- 189-4335
- Mfr. Part No.:
- STTH30R04G-TR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Mount Type | Surface | |
| Product Type | Diode | |
| Package Type | TO-263 | |
| Maximum Continuous Forward Current If | 30A | |
| Peak Reverse Repetitive Voltage Vrrm | 400V | |
| Series | STTH30R04 | |
| Diode Configuration | Single | |
| Rectifier Type | Fast Recovery | |
| Pin Count | 3 | |
| Peak Reverse Current Ir | 150μA | |
| Minimum Operating Temperature | -40°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 300A | |
| Maximum Forward Voltage Vf | 1.45V | |
| Peak Reverse Recovery Time trr | 100ns | |
| Maximum Operating Temperature | 175°C | |
| Height | 4.37mm | |
| Diameter | 3.55 mm | |
| Length | 10.4mm | |
| Width | 9.35 mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Mount Type Surface | ||
Product Type Diode | ||
Package Type TO-263 | ||
Maximum Continuous Forward Current If 30A | ||
Peak Reverse Repetitive Voltage Vrrm 400V | ||
Series STTH30R04 | ||
Diode Configuration Single | ||
Rectifier Type Fast Recovery | ||
Pin Count 3 | ||
Peak Reverse Current Ir 150μA | ||
Minimum Operating Temperature -40°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 300A | ||
Maximum Forward Voltage Vf 1.45V | ||
Peak Reverse Recovery Time trr 100ns | ||
Maximum Operating Temperature 175°C | ||
Height 4.37mm | ||
Diameter 3.55 mm | ||
Length 10.4mm | ||
Width 9.35 mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The compromise-free, high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy duty applications that demand long term reliability.
Ultrafast switching
Low reverse current
Low thermal resistance
Reduces switching and conduction losses
High junction temperature
