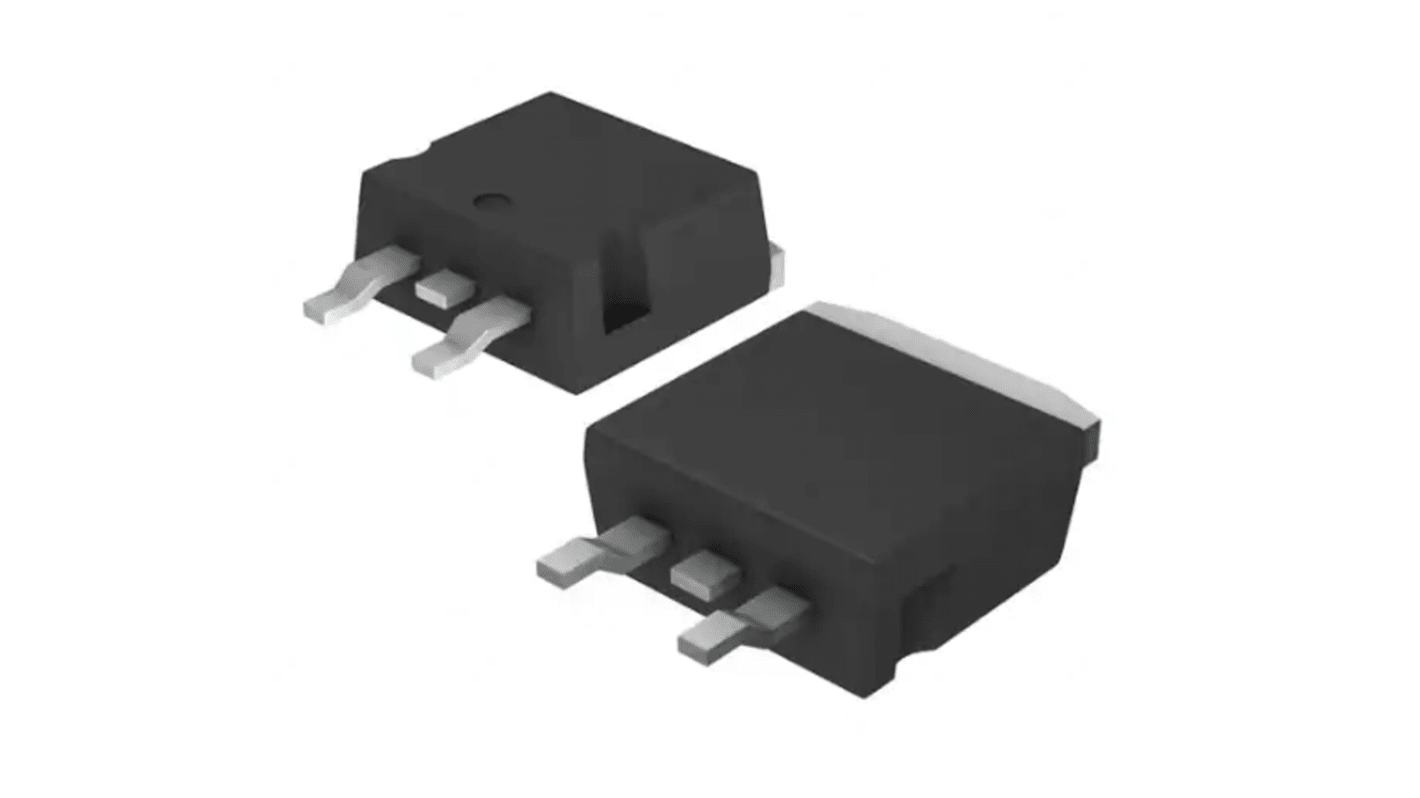

STMicroelectronics 300V 8A, Rectifier Diode, 3-Pin D2PAK STTH803G-TR
- RS Stock No.:
- 189-4021
- Mfr. Part No.:
- STTH803G-TR
- Brand:
- STMicroelectronics
Subtotal (1 reel of 1000 units)*
£396.00
(exc. VAT)
£475.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
1000 + | £0.396 | £396.00 |
*price indicative
- RS Stock No.:
- 189-4021
- Mfr. Part No.:
- STTH803G-TR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Mounting Type | Surface Mount | |
Package Type | D2PAK | |
Maximum Continuous Forward Current | 8A | |
Peak Reverse Repetitive Voltage | 300V | |
Diode Configuration | Single | |
Rectifier Type | Fast Recovery | |
Diode Type | Rectifier | |
Pin Count | 3 | |
Maximum Forward Voltage Drop | 1.25V | |
Number of Elements per Chip | 1 | |
Peak Reverse Recovery Time | 35ns | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Mounting Type Surface Mount | ||
Package Type D2PAK | ||
Maximum Continuous Forward Current 8A | ||
Peak Reverse Repetitive Voltage 300V | ||
Diode Configuration Single | ||
Rectifier Type Fast Recovery | ||
Diode Type Rectifier | ||
Pin Count 3 | ||
Maximum Forward Voltage Drop 1.25V | ||
Number of Elements per Chip 1 | ||
Peak Reverse Recovery Time 35ns | ||
Single fast recovery epitaxial diode suited for switch mode power supply and high frequency DC/DC converters. Packaged in TO-220AC or D2PAK this device is especially intended for secondary rectification.
Combines highest recovery and reverse voltage performance
Ultra-fast, soft and noise-free recovery
Ultra-fast, soft and noise-free recovery
